MI FB API

1. Development Process¶

1.1. Configure MI_FB startup parameters¶

MI_FB startup parameters are managed in config.ini. m_fbdevList defined in the ROOTsection of config.ini describes the entry of GUI or mouse layer parameters of the current platform.

1. FB_DEVICE describes the configuration information superimposed on the GUI of the video display unit;

2. FB_VIDEO and FB_BUF_ID0_PATH describe the configuration information superimposed on GUI of the video processing unit;

3. FB_CURSOR describes the configuration information of the mouse layer, the mouse layer will be superimposed on GUI.

[ROOT]
m_fbdevList = {\
FB_DEVICE,\
FB_CURSOR,\
FB_VIDEO,\
}

[FB_DEVICE]
FB_HWLAYER_ID = 1;
FB_HWWIN_ID = 0;
FB_HWWIN_FORMAT = 5;
FB_HWLAYER_OUTPUTCOLOR = 0;
FB_WIDTH = 800;
FB_HEIGHT = 480;
FB_TIMING_WIDTH = 1920;
FB_TIMING_HEIGHT = 1080;
FB_MMAP_NAME = E_MMAP_ID_FB;
FB_BUFFER_LEN = 8192
#unit:Kbyte, total size = FB_BUFFER_LEN*1024

[FB_CURSOR]
FB_HWLAYER_ID = 0;
FB_HWWIN_ID = 0;
FB_HWWIN_FORMAT = 6;
FB_HWLAYER_OUTPUTCOLOR = 0;
FB_MMAP_NAME = E_MMAP_ID_HW_CURSOR;

[FB_VIDEO]
FB_BUF_ID = 0
FB_BUF_CNT = 3
FB_HWWIN_FORMAT = 6
FB_WIDTH = 1920
FB_HEIGHT = 1080
FB_TIMMING_WIDTH = 1920
FB_TIMMING_HEIGHT = 1080

[FB_BUF_ID0_PATH]
FB_MOD = 34
FB_DEV = 1
FB_CHN = 0
FB_PORT = 0
FB_GWIN_ID = 7

Note:

Adding multiple GUI layers (if supported by the chip) needs to add the new section name to m_fbdevList for management, otherwise it will not take effect. For example: the current INI configuration has a section of FB_DEVICE describing the information of a GUI layer, you can add a section of FB_DEVICE1 to describe another GUI layer, add the section name of FB_DEVICE1 to m_fbdevList.

The growth order of /dev/fbxxx device nodes is consistent with the order in m_fbdevList.

The description of each configuration parameter in config.ini is as follows:

Parameter	Description
FB_HWLAYER_ID	The current graphics layer ID
FB_HWWIN_ID	Hardware device ID (determine which output PATH of the video layer device DISP is superimposed on)
FB_HWWIN_FORMAT	Describe the canvas pixel format
FB_HWLAYER_OUTPUTCOLOR	Describe the color space (YUV/RGB) output by the current overlay
FB_WIDTH	Describe the visible area range (xres)
FB_HEIGHT	Describe the visible area range (yres)
FB_TIMING_WIDTH	Describe the display device resolution (display width)
FB_TIMING_HEIGHT	Describe the display device resolution (display height)
FB_MMAP_NAME	Video memory application related parameters (default is E_MMAP_ID_FB)
FB_BUFFER_LEN	Describe the video memory size (unit: Kbyte)
FB_BUF_ID	Associate the FB_BUF_ID0_PATH field
FB_BUF_CNT	Calculate the video memory size of the graphics layer superimposed on the video processing unit
FB_MOD	Superimpose the graphics layer MODULE ID of video processing unit
FB_DEV	Superimpose the graphics layer DEV ID of video processing unit
FB_CHN	Superimpose the graphics layer CHN ID of video processing unit
FB_PORT	Superimpose the graphics layer PORT ID of video processing unit

2. API INTRODUCTION¶

As shown below, the FB APIs are divided into several types.

2.1. File Operation Type¶

This type provides interfaces to operation of SigmaStar FB. By calling the interfaces, you can manipulate the overlay as you do with file operation. These interfaces are standard interfaces provided by Linux, offering such functions as open, close, write, read and lseek, etc. Description of these standard interfaces will not be given here in this document.

2.2. Memory Map Type¶

This type provides an interfaces to map physical memory to the user's virtual memory space. These interfaces are standard interfaces provided by Linux, offering such functions as mmap and munmap, etc. Description of these standard interfaces will not be given here in this document.

2.3. Memory Control and Status Query Type¶

This type provides interfaces to set properties like pixel format and color depth. These interfaces are standard interfaces provided by Linux, and are used quite frequently. We will give a brief account of these interfaces in this document.

2.4. Interlayer Effect Control and Status Query Type¶

The SigmaStar FB can manage multiple graphic overlay. Each layer in the graphic overlay can set attributes including alpha information and display region. These functions are new functions provided by SigmaStar FB, as opposed to Linux framebuffer. In this document, we will concentrate upon these new functions, which are realized by extending the command parameters of the standard Linux Framebuffer ioctl function.

The SigmaStar FB user interface is implemented in the form of ioctl, as illustrated below:

int ioctl(int fd,

unsigned long cmd,

……

);

This function is a Linux standard interface equipped with variable parameters. For SigmaStar FB, however, only three parameters are required. Therefore, the syntax would be:

int ioctl (int fd,

unsigned long cmd,

CMD_DATA_TYPE *cmddata);

Wherein, CMD_DATA_TYPE will vary with the parameter cmd. Detailed descriptions of the three parameters are provided in the table below:

Table 1-1: Parameters of ioctl Function

Parameter	Description	Input/Output
Fd	Framebuffer device file descriptor, which is the return value after calling the open function to open the Framebuffer device.	Input
Cmd	The main commands (command control word) are as listed below: FBIOGET_VSCREENINFO: Get screen variable information FBIOPUT_VSCREENINFO: Set screen variable information FBIOGET_FSCREENINFO: Get screen fixed information FBIOPAN_DISPLAY: Set PAN display FBIOGET_SCREEN_LOCATION: Get overlay display region FBIOSET_SCREEN_LOCATION: Set overlay display region FBIOGET_SHOW: Get overlay display status FBIOSET_SHOW: Set overlay display status FBIOGET_GLOBAL_ALPHA: Get overlay Alpha attribute FBIOSET_GLOBAL_ALPHA: Set overlay Alpha attribute FBIOGET_COLORKEY: Get overlay colorkey attribute FBIOSET_COLORKEY: Set overlay colorkey attribute FBIOGET_DISPLAYLAYER_ATTRIBUTES: Get overlay attribute FBIOSET_DISPLAYLAYER_ATTRIBUTES: Set overlay attribute FBIOGET_CURSOR_ATTRIBUTE: Get cursor attribute FBIOSET_CURSOR_ATTRIBUTE: Set cursor attribute	Input
cmddata	The foregoing commands correspond respectively to the following data types: Get or set screen variable information: struct fb_var_screeninfo * Get screen fixed information: struct fb_fix_screeninfo * Set PAN display: struct fb_var_screeninfo * Get or set screen overlay coordinate origin: MI_FB_CursorAttr_t * Get or set overlay display status: MI_BOOL * Get or set overlay Alpha: MI_FB_GlobalAlpha_t * Get or set overlay colorkey: MI_FB_ColorKey_t* Get or set overlay attribute: MI_FB_DisplayLayerAttr_t* Get or set cursor graphic layer attribute: MI_FB_CursorAttr_t*	Input/Output

3. STANDARD FUNCTION¶

3.1. FBIOGET_VSCREENINFO¶

Function

Get screen variable information

Syntax

int ioctl (int fd,FBIOGET_VSCREENINFO,struct fb_var_screeninfo *var);

Description

Use this interface to get screen variable information, including primarily resolution and pixel format. For detailed description of the information, please refer to section “struct fb_var_screeninfo.”
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOGET_VSCREENINFO ioctl number Input

var Variable information structure pointer Output
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: fb.h
Related Interface

FBIOPUT_VSCREENINFO

3.2. FBIOPUT_VSCREENINFO¶

Function

Set Framebuffer screen resolution and pixel format, etc.

Syntax

int ioctl (int fd,FBIOPUT_VSCREENINFO, struct fb_var_screeninfo *var);

Description

Use this interface to set screen resolution and pixel format
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOPUT_VSCREENINFO ioctl number Input

var Variable information structure pointer Input
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: fb.h
Note

The actual resolution and offset must be guaranteed to be within the virtual resolution range. Otherwise, system will automatically adjust the actual resolution to keep it within the coverage of the virtual resolution range.
Related Interface

FBIOGET_VSCREENINFO

3.3. FBIOGET_FSCREENINFO¶

Function

Get Framebuffer fixed information

Syntax

int ioctl (int fd,FBIOGET_FSCREENINFO, struct fb_fix_screeninfo  *fix);

Description

Use this interface to get Framebuffer fixed information, including memory start physical address, memory size and line spacing, etc. For detailed description, please refer to the section “”
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOGET_FSCREENINFO ioctl number Input

fix Fixed information structure pointer Output
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: fb.h

3.4. FBIOPAN_DISPLAY¶

Function

Set to display from different offsets in the virtual resolution

Syntax

int ioctl (int fd,FBIOPAN_DISPLAY, struct fb_var_screeninfo  *var);

Description

Use this interface to set the display position from different offsets in the virtual resolution; the actual resolution remains unchanged. As shown in the figure below, (xres_virtual, yres_virtual) means the virtual resolution, (xres, yres) the resolution actually shown, and (xoffset, yoffset) the offset used.
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOPAN_DISPLAY ioctl number Input

var Variable information structure pointer Input
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: fb.h
Note

The actual resolution and offset must be guaranteed to be within the virtual resolution range. Otherwise, the setting will fail.

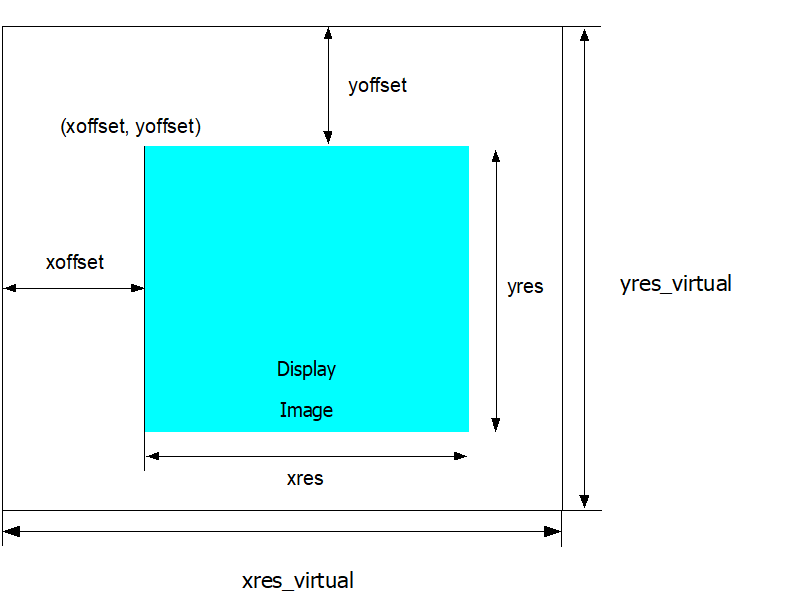

Figure 2-1: Setting the Display Position from Different Offsets in the Virtual Resolution

4. EXTENDED FUNCTION¶

4.1. FBIOGET_SCREEN_LOCATION¶

Function

Get overlay screen display region

Syntax

int ioctl (int fd,FBIOGET_SCREEN_LOCATION,MI_FB_Rectangle_t*    pstRectangle);

Description

Use this interface to get overlay screen display region

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOGET_SCREEN_LOCATION	ioctl number	Input
pstRectangle	Pointer to MI_FB_Rectangle_t structure, including (x,y) coordinates, width, and height. It refers to the overlay screen display region.	Output

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOSET_SCREEN_LOCATION

4.2. FBIOSET_SCREEN_LOCATION¶

Function

Set overlay screen display region

Syntax

int ioctl (int fd,FBIOSET_SCREEN_LOCATION,MI_FB_Rectangle_t* pstRectangle);

Description

Use this interface to set overlay screen display region

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOSET_SCREEN_LOCATION	ioctl number	Input
pstRectangle	Pointer to MI_FB_Rectangle_t structure, including (x,y) coordinates, width, and height. It refers to the overlay screen display region.	Input

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOGET_SCREEN_LOCATION

4.3. FBIOGET_SHOW¶

Function

Get current overlay display status

Syntax

int ioctl (int fd,FBIOGET_SHOW,MI_BOOL *bShow);

Description

Use this interface to get current overlay display status

Parameter

Parameter Name	Description	Input/Output
Fd	Framebuffer device file descriptor	Input
FBIOGET_SHOW	ioctl number	Input
bShow	Indicate the current overlay status: bShow = MS_TRUE: Current overlay is in Show status bShow = MS_FALSE: Current overlay is in Hidden status	Output

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOSET_SHOW

4.4. FBIOSET_SHOW¶

Function

Show or hide the overlay

Syntax

int ioctl (int fd,FBIOSET_SHOW,MI_BOOL *bShow);

Description

Use this interface to set the overlay display status: show or hide

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOSET_SHOW	ioctl number	Input
bShow	Display status of the overlay: bShow = MS_TRUE: Show the current overlay bShow = MS_FALSE: Hide the current overlay	Input

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOGET_SHOW

4.5. FBIOGET_GLOBAL_ALPHA¶

Function

Get overlay Alpha setting

Syntax

int ioctl (int fd,FBIOGET_GLOBAL_ALPHA,MI_FB_GlobalAlpha_t  *pstAlpha);

Description

Use this interface to get current overlay Alpha setting
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOGET_GLOBAL_ALPHA ioctl number Input

pstAlpha Pointer to MI_FB_GlobalAlpha_t structure Output
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOSET_GLOBAL_ALPHA

4.6. FBIOSET_GLOBAL_ALPHA¶

Function

Set overlay Alpha

Syntax

int ioctl (int fd,FBIOSET_GLOBAL_ALPHA, MI_FB_GlobalAlpha_t *pstAlpha);

Description

Use this interface to set current overlay Alpha function
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOSET_GLOBAL_ALPHA ioctl number Input

pstAlpha Pointer to MI_FB_GlobalAlpha_t structure Input
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOGET_GLOBAL_ALPHA

4.7. FBIOGET_COLORKEY¶

Function

Get overlay colorkey

Syntax

int ioctl (int fd,FBIOGET_COLORKEY,MI_FB_ColorKey_t* pstColorKey);

Description

Use this interface to get overlay colorkey
Parameter

Parameter Name Description Input/Output

Fd Framebuffer device file descriptor Input

FBIOGET_COLORKEY ioctl number Input

pstColorKey Pointer to MI_FB_ColorKey_t structure Output
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOSET_COLORKEY

4.8. FBIOSET_COLORKEY¶

Function

Set the overlay colorkey

Syntax

int ioctl (int fd,FBIOSET_COLORKEY,MI_FB_ColorKey_t* pstColorKey);

Description

Use this interface to set current overlay colorkey function
Parameter

Parameter Name Description Input/Output

fd Framebuffer device file descriptor Input

FBIOSET_COLORKEY ioctl number Input

pstColorKey Pointer to MI_FB_ColorKey_t structure Input
Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOGET_COLORKEY

4.9. FBIOSET_DISPLAYLAYER_ATTRIBUTES¶

Function

Set graphic layer information

Syntax

int ioctl (int fd,FBIOSET_DISPLAYLAYER_ATTRIBUTES,

MI_FB_DisplayLayerAttr_t* pstLayerInfo);

Description

This interface is used to set graphic layer information, including screen display position, canvas resolution, memory resolution, screen display resolution, and capability of pre-multiplication of the graphic layer. For more details, see description with respect to MI_FB_DisplayLayerAttr_t.

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOSET_DISPLAYLAYER_ATTRIBUTES	ioctl number	Input
pstLayerInfo	Pointer to MI_FB_DisplayLayerAttr_t structure	Output

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOSET_DISPLAYLAYER_ATTRIBUTES

4.10. FBIOGET_DISPLAYLAYER_ATTRIBUTES¶

Function

Get graphic layer information

Syntax

int ioctl (int fd,

FBIOGET_DISPLAYLAYER_ATTRIBUTES,

MI_FB_DisplayLayerAttr_t * pstLayerInfo);

Description

Used to get graphic layer information, including screen display position, memory resolution, screen display resolution, and capability of pre-multiplication of the graphic layer.

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOGET_DISPLAYLAYER_ATTRIBUTES	ioctl number	Input
pstLayerInfo	Pointer to graphic layer information structure	Output

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOGET_DISPLAYLAYER_ATTRIBUTES

5.1. FBIOGET_CURSOR_ATTRIBUTE¶

Function

Get cursor graphic layer information

Syntax

int ioctl (int fd,

FBIOGET_CURSOR_ATTRIBUTE,

MI_FB_CursorAttr_t *pstCursorAttr)

Description

Get cursor graphic layer information, including hotspot, position, Alpha, Colorkey, and visibility.

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOGET_CURSOR_ATTRIBUTE	ioctl number	Input
pstCursorAttr	Pointer to MI_FB_CursorAttr_t structure	Output

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOSET_CURSOR_ATTRIBUTE

5.2. FBIOSET_CURSOR_ATTRIBUTE¶

Function

Set cursor graphic layer information

Syntax

int ioctl (int fd,

FBIOSET_CURSOR_ATTRIBUTE,

MI_FB_CursorAttr_t *pstCursorAttr)

Description

Set cursor graphic layer information, including hotspot, position, Alpha, Colorkey, and visibility

Parameter

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOSET_CURSOR_ATTRIBUTE	ioctl number	Input
pstCursorAttr	Pointer to MI_FB_CursorAttr_t structure	Output

Return Value
- 0: Successful.
- -1: Failed.
Requirement
- Header file: mstarFb.h
Related Interface

FBIOGET_CURSOR_ATTRIBUTE

6. ERROR CODE¶

The following table lists all error codes that may appear when the return value of the various functions is smaller than 0. These error codes originate from the standard Linux error code definitions. For details, please refer to the Linux Kernel source code errno_base.h. To check the error message, print the Linux standard error code errno or use strerror(errno).

Table 5-1: Error Code

Error Code	Macro Definition	Description
1	EPERM	Invalid operation
12	ENOMEM	No memory
14	EFAULT	Invalid parameter pointer address
22	EINVAL	Invalid parameter

7. FB DATA TYPE¶

7.1. Standard Data Type¶

7.1.1. struct fb_bitfield¶

Description

Bit field information for setting pixel format

Definition

struct fb_bitfield

{

    u32 offset; /* beginning of bitfield */

    u32 length; /* length of bitfield */

    u32 msb_right; /* != 0: Most significant bit is right */

};

Member

Member	Description	Supportability
offset	Color component start bit	Supported
length	Length of the bit occupied by the color component	Supported
msb_right	Whether the bit on the right is the most significant bit.	Only 0 is supported. That is, the leftmost bit is the most significant bit.

7.1.2. struct fb_var_screeninfo¶

Description

Variable screen information

Definition

struct fb_var_screeninfo
{
u32 xres;   /* visible resolution */
u32 yres;
u32 xres_virtual;   /* virtual resolution */
u32 yres_virtual;
u32 xoffset;    /* offset from virtual to visible */
u32 yoffset;    /* resolution */

u32 bits_per_pixel; /* guess what */
u32 grayscale;  /* != 0 Graylevels instead of colors */

struct fb_bitfield red; /* bitfield in fb mem if true color, */ struct fb_bitfield green;   /* else only length is significant */ struct fb_bitfield blue;
struct fb_bitfield transp; /* transparency */

u32 nonstd; /* != 0 Non standard pixel format */

u32 activate;   /* see FB_ACTIVATE_* */

u32 height; /* height of picture in mm */
u32 width;  /* width of picture in mm */

u32 accel_flags;    /* (OBSOLETE) see fb_info.flags */

/* Timing: All values in pixclocks, except pixclock (of course) */
u32 pixclock;   /* pixel clock in ps (pico seconds) */
u32 left_margin;    /* time from sync to picture */
u32 right_margin;   /* time from picture to sync */
u32 upper_margin;   /* time from sync to picture */
u32 lower_margin;
u32 hsync_len;  /* length of horizontal sync */
u32 vsync_len;  /* length of vertical sync */
u32 sync;   /* see FB_SYNC_* */
u32 vmode;  /* see FB_VMODE_* */
u32 rotate; /* angle we rotate counter clockwise */
u32 reserved[5];    /* Reserved for future compatibility */
};

Member

Member	Description	Supportability
xres	Visible screen width (number of pixels)	Supported
yres	Visible screen height (number of pixels)	Supported
xres_virtual	Virtual screen width (image width in memory). When the value is smaller than xres, xres will be modified to be equal to that value.	Supported
yres_virtual	Virtual screen height (image height in memory). When the value is smaller than yres, yres will be modified to be equal to that value. If used in combination with xres_virtual, this parameter can pan image quickly in horizontal or vertical direction.	Supported
xoffset	Number of offset pixels in x direction	Supported, default is 0
yoffset	Number of offset pixels in y direction	Supported, default is 0
bits_per_pixel	Number of bits occupied by each pixel	Supported
grayscale	Grayscale	Not supported, default is 0 (color)
red	Red bit field information in the color component	Supported
green	Green bit field information in the color component	Supported
blue	Blue bit field information in the color component	Supported
transp	Alpha bit field information in the color component	Supported
nonstd	Indicates whether standard pixel format is used	Not supported, default is 0 (standard pixel format supported)
Member	Description	Supportability
activate	Set the time of activation	Not supported, default is FB_ACTIVATE_NOW (activated immediately)
height	Screen height, unit is mm	Not supported, default is -1
width	Screen width, unit is mm	Not supported, default is -1
accel_flags	Acceleration flag	Not supported, default is -1
pixclock	Time required to show a pixel, unit is ns	Not supported, default is -1
left_margin	Represent the left blanking signal, the right blanking signal, and the horizontal synchronization duration. The sum of these values is equal to the horizontal retrace time in unit of dot clock.	Not supported, default is 64
right_margin
hsync_len
upper_margin	Represent the upper blanking signal, the lower blanking signal, and the vertical synchronization duration. The sum of these values is equal to the vertical retrace time in unit of dot clock.	Not supported, default is -1
lower_margin
vsync_len
sync	Signal synchronization method	Not supported, default is -1
vmode	Scan mode	Not supported, default is -1
rotate	Angle of rotation clockwise	Not supported, default is 0 (no rotation)

Note

The default resolution of the HD device graphics layer is 1280x720; the default resolution of the SD device graphics layer is 720x576, and the cursor layer default resolution is 128x128. The pixel format is ARGB1555.
Related Data Type and Interface

struct fb_bitfield

FBIOGET_VSCREENINFO

FBIOPUT_VSCREENINFO

7.1.3. struct fb_fix_screeninfo¶

Description

Fixed screen information

Definition

struct fb_fix_screeninfo
{
char id[16];  /* identification string eg "TT Builtin" */ unsigned long smem_start; /* Start of frame buffer mem (physical
address) */
u32 smem_len;   /* Length of frame buffer mem */
u32 type;   /* see FB_TYPE_* */
u32 type_aux;   /* Interleave for interleaved Planes */
u32 visual; /* see FB_VISUAL_* */
u16 xpanstep;   /* zero if no hardware panning */
u16 ypanstep;   /* zero if no hardware panning */
u16 ywrapstep;  /* zero if no hardware ywrap */
u32 line_length;    /* length of a line in bytes */ unsigned long mmio_start;   /* Start of Memory Mapped I/O (physical
address) */
u32 mmio_len;   /* Length of Memory Mapped I/O */
u32 accel; /* Indicate to driver which specific chip/card we have */
u16 reserved[3];    /* Reserved for future compatibility */
};

Member

Member	Description	Supportability
id	Device driver name	Supported
smem_start	Memory start physical address	Supported
smem_len	Memory size	Supported
type	Graphics card type	Fixed to FB_TYPE_PACKED_PIXELS(pixel values closely packed)
type_aux	Auxiliary type	Not supported. Undefined graphics card type under FB_TYPE_PACKED_PIXELS.
visual	Color mode	Not supported, default is FB_VISUAL_TRUECOLOR (true color)
xpanstep	Support horizontal PAN display or not: 0: Not supported ǂ 0: Supported. The value in this case is used to indicate the pixel value per step in the horizontal direction	Fixed to 1
ypanstep	Support vertical PAN display or not: 0: Not supported ǂ 0: Supported. The value in this case is used to indicate the pixel value per step in the vertical direction	Fixed to 1
ywrapstep	Smilar to ypanstep, except that when it is displayed to the bottom, it can be returned to the beginning of the video memory for display.	Not supported, default is 0
line_length	Number of bytes per line	Supported
mmio_start	Memory map I/O start address	Not supported, default is 0
mmio_len	Memory map I/O length	Not supported, default is 0
accel	Indicate the hardware acceleration device supported	Not supported, default is FB_ACCEL_NONE (no acceleration)
reserved	Reserved	Not supported, default is 0

Related Data Type and Interface

FBIOGET_FSCREENINFO

7.2. Extended Data Type¶

7.2.1. MI_FB_ColorFmt_e¶

Description

Collection of pixel formats supported by SigmaStar FB

Definition

typedef enum

{

    E_MI_FB_COLOR_FMT_RGB565 = 1,

    E_MI_FB_COLOR_FMT_ARGB4444 =2,

    E_MI_FB_COLOR_FMT_ARGB8888 =5,

    E_MI_FB_COLOR_FMT_ARGB1555 =6,

    E_MI_FB_COLOR_FMT_YUV422 =9,

    /// Invalid color format.

    E_MI_FB_COLOR_FMT_INVALID = 12,

}MI_FB_ColorFmt_e;

Member

Member	Description
E_MI_FB_COLOR_FMT_RGB565	RGB565 format
E_MI_FB_COLOR_FMT_ARGB4444	ARGB444 format
E_MI_FB_COLOR_FMT_ARGB8888	ARGB8888 format
E_MI_FB_COLOR_FMT_ARGB1555	ARGB1555 format
E_MI_FB_COLOR_FMT_YUV422	YUV422 format
E_MI_FB_COLOR_FMT_INVALID	Invalid pixel format

Related Data Type and Interface

MI_FB_DisplayLayerAttr_t

MI_FB_CursorAttr_t

7.2.2. MI_FB_DisplayLayerAttrMaskbit_e¶

Description

Indicate which members in the MI_FB_DisplayLayerAttr_t structure have been updated

Definition

typedef enum

{

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_DISP_POS = 0x1,

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_DISP_SIZE = 0x2,

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_BUFFER_SIZE = 0x4,

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_SCREEN_SIZE = 0x8,

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_PREMUL = 0x10,

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_COLOR_FMB = 0x20，

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_OUTPUT_COLORSPACE = 0x40,

    E_MI_FB_DISPLAYLAYER_ATTR_MASK_DST_DISP = 0x80,

} MI_FB_DisplayLayerAttrMaskbit_e;

Member

Member	Description
E_MI_FB_DISPLAYLAYER_ATTR_MASK_DISP_POS	Overlay position changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_DISP_SIZE	Width or height of overlay screen display region changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_BUFFER_SIZE	Display resolution changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_SCREEN_SIZE	Screen resolution changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_PREMUL	Pre-multiplication attribute changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_COLOR_FMB	FB color format attribute changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_OUTPUT_COLORSPACE	Overlay output color space changed
E_MI_FB_DISPLAYLAYER_ATTR_MASK_DST_DISP	Overlay output to display chain target module changed

Related Data Type and Interface

MI_FB_DisplayLayerAttr_t

7.2.3. MI_FB_GlobalAlpha_t¶

Description

Alpha information structure

Definition

typedef struct MI_FB_GlobalAlpha_s

{

    MI_BOOL bAlphaEnable; /* alpha enable flag */

    MI_BOOL bAlphaChannel; /* alpha channel enable flag */

    MI_BOOL bAlphaInvert;   /* alpha invert flag */

    MI_U8 u8Alpha0; /* alpha0 value */

    MI_U8 u8Alpha1; /* alpha1 value */

    MI_U8 u8GlobalAlpha; /* global alpha value */ MI_U8 u8Reserved;

} MI_FB_GlobalAlpha_t;

Member

Member	Description
bAlphaEnable	Alpha overlay enable, default is 1
bAlphaChannel	Alpha channel enable, default is 0
bAlphaInvert	Alpha invert flag, used to that 0 is opaque in argb1555 format.
u8Alpha0	Alpha0 value. Range: 0～255, default is 255. In RGB1:5:5:5 format, when the most significant bit is 0, this value will be chosen as the Alpha overlay value.
u8Alpha1	Alpha1 value. Range: 0～255, default is 255. In RGB1:5:5:5 format, when the most significant bit is 1, this value will be chosen as the Alpha overlay value.
u8GlobalAlpha	Global Alpha value. Range: 0～255, default is 255. Works when Alpha channel is enabled.
u8Reserved	Reserved

Note

Alpha0 just for cursor, alpha0 is 0 for UI.

Alpha overlay is implemented only when Alpha overlay function is enabled. Otherwise, the upper layer overlay will replace the lower layer overlay.

The formula for Alpha overlay value calculation can be divided into the following cases:
- When Alpha channel is enabled, global Alpha will be included in the overlay.
  - If global Alpha and pixel Alpha overlay are not supported, the Alpha overlay value is calculated as: u8GlobalAlpha
  - If global Alpha and pixel Alpha overlay are supported, the Alpha overlay value is calculated as: u8GlobalAlpha * pixel
- When Alpha channel is not enabled, the Alpha overlay value is equal to the pixel Alpha value, that is: pixel
Related Data Type and Interface

FBIOGET_GLOBAL_ALPHA

FBIOSET_GLOBAL_ALPHA

7.2.4. MI_FB_ColorKey_t¶

Description

Colorkey information structure for setting colorkey attribute

Definition

typedef struct MI_FB_ColorKey_s

{

    MI_BOOL bKeyEnable;

    MI_U8 u8Red;

    MI_U8 u8Green;

    MI_U8 u8Blue;

} MI_FB_ColorKey_t

Member

Member Description

bKeyEnable Colorkey enable.
TRUE: Enable
FALSE: Not enable

u8Red Colorkey R component value

u8Green Colorkey G component value

u8Blue Colorkey B component value
Related Data Type and Interface

FBIOGET_COLORKEY

FBIOSET_COLORKEY

7.2.5. MI_FB_Rectangle_t¶

Description

MI_FB_Rectangle_t structure for describing overlay display region

Definition

typedef struct MI_FB_Rectangle_s

{

    MI_U32 u32Xpos;

    MI_U32 u32Ypos;

    MI_U32 u32Width;

    MI_U32 u32Height;

}MI_FB_Rectangle_t;

Member

Member Description

u32Xpos Upper left corner x coordinate

u32Ypos Upper left corner y coordinate

u32Width Width

u32Height Height
Related Data Type and Interface

FBIOGET_SCREEN_LOCATION

FBIOSET_SCREEN_LOCATION

7.2.6. MI_FB_DisplayLayerAttr_t¶

Description

MI_FB_DisplayLayerAttr_t structure for describing the overlay attribute information

Definition

typedef struct MI_FB_DisplayLayerAttr_s

{

    MI_U32 u32Xpos; /**the x pos of orign point in screen*/

    MI_U32 u32YPos; /**the y pos of orign point in screen*/

    MI_U32 u32dstWidth; /**display buffer dest with in screen*/

    MI_U32 u32dstHeight; /**display buffer dest hight in screen*/

    MI_U32 u32DisplayWidth; /**the width of display buf in fb */

    MI_U32 u32DisplayHeight; /**the height of display buf in fb. */

    MI_U32 u32ScreenWidth; /**the width of screen */

    MI_U32 u32ScreenHeight; /** the height of screen */

    MI_BOOL bPreMul; /**the data drawed in buffer whether is premultiply
    alpha or not*/

    MI_FB_ColorFmt_e eFbColorFmt; /**the color format of framebuffer*/

    MI_FB_OutputColorSpace_e eFbOutputColorSpace; /**output color space*/

    MI_FB_DstDisplayplane_e eFbDestDisplayPlane; /**destination
    displayplane*/

    MI_U32 u32SetAttrMask; /** display attribute modify mask*/

}MI_FB_DisplayLayerAttr_t;

Member

Member	Description
u32Xpos	The x-axis origin of the graphics layer on the screen
u32YPos	The y-axis origin of the graphics layer on the screen
u32dstWidth	The display width of the graphics layer on the screen
u32dstHeight	The display height of the graphics layer on the screen
u32DisplayWidth	Width of memory resolution
u32DisplayHeight	Height of memory resolution
u32ScreenWidth	Width of screen display resolution
u32ScreenHeight	Height of screen display resolution
bPreMul	Whether the data in FB is pre-multiplied
eFbColorFmt	FB pixel format
u32SetAttrMask	Parameter modification mask bit when setting graphics layer information
eFbOutputColorSpace	Set the overlay output color space
eFbDestDisplayPlane	Set the overlay output to display chain target module. Default is E_MI_FB_DST_OP0.

Related Data Type and Interface

MI_FB_DisplayLayerAttrMaskbit_e

MI_FB_ColorFmt_e

MI_FB_DstDisplayplane_e

MI_FB_OutputColorSpace_e

7.2.7. MI_FB_OutputColorSpace_e¶

Description

FB overlay output color space

Definition

typedef enum

{

    E_MI_FB_OUTPUT_RGB = 0,

    E_MI_FB_OUTPUT_YUV = 1

}MI_FB_OutputColorSpace_e

Member

Member Description

E_MI_FB_OUTPUT_RGB RGB Color Space

E_MI_FB_OUTPUT_YUV YUV Color Space
Related Data Type and Interface

MI_FB_DisplayLayerAttr_t

7.2.8. MI_FB_DstDisplayplane_e¶

Description

FB overlay output to display chain target module. By configuring different Display chains, you can select the image adjustment process that the overlay participates in.

Definition

typedef enum

{

    E_MI_FB_DST_OP0 = 0,

    E_MI_FB_DST_OP1 = 1,

    E_MI_FB_DST_INVALID

}MI_FB_DstDisplayplane_e

Member

Member Description

E_MI_FB_DST_OP0 OP path

E_MI_FB_DST_OP1 OP1 path

E_MI_FB_DST_INVALID MIXER2OP1
Note

This interface is only valid for Ikayaki series chips.
Related Data Type and Interface

MI_FB_DisplayLayerAttr_t

7.2.9. MI_FB_CursorAttrMaskbit_e¶

Description

Describe which attributes in the MI_FB_CursorAttr_t structure has been updated

Definition

typedef enum

{

    E_MI_FB_CURSOR_ATTR_MASK_ICON = 0x1,

    E_MI_FB_CURSOR_ATTR_MASK_POS = 0x2,

    E_MI_FB_CURSOR_ATTR_MASK_ALPHA = 0x4,

    E_MI_FB_CURSOR_ATTR_SHOW = 0x8,

    E_MI_FB_CURSOR_ATTR_HIDE = 0x10,

    E_MI_FB_CURSOR_ATTR_MASK = 0x1F

} MI_FB_CursorAttrMaskbit_e;

Member

Member	Description
E_MI_FB_CURSOR_ATTR_MASK_ICON	Cursor icon changed
E_MI_FB_CURSOR_ATTR_MASK_POS	Cursor position changed
E_MI_FB_CURSOR_ATTR_MASK_ALPHA	Alpha changed
E_MI_FB_CURSOR_ATTR_SHOW	Show cursor
E_MI_FB_CURSOR_ATTR_MASK_HIDE	Hide cursor
E_MI_FB_CURSOR_ATTR_MASK	Indicate all cursor attributes that can be configured

Related Data Type and Interface

MI_FB_CursorAttr_t

7.2.10. MI_FB_CursorImage_t¶

Description

MI_FB_CursorImage_t structure for describing cursor icon data information

Definition

typedef struct MI_FB_CursorImage_s

{

    MI_U32 u32Width; /**width, unit pixel*/

    MI_U32 u32Height; /**Height, unit pixel*/

    MI_U32 u32Pitch; /**Pitch, unit pixel*/

    MI_FB_ColorFmt_e eColorFmt; /**Color format*/

    const char* data;

}MI_FB_CursorImage_t;

Member

Member Description

u32Width Icon width

u32Height Icon height

u32Pitch Pitch

eColorFmt Icon data pixel format

data Icon data
Note

The maximum value of icon width and height is 128
Related Data Type and Interface

MI_FB_CursorAttr_t

MI_FB_ColorFmt_e

7.2.11. MI_FB_CursorAttr_t¶

Description

MI_FB_CursorAttr_t structure for describing cursor icon information

Definition

typedef struct MI_FB_CursorAttr_s

{

    MI_U32 u32XPos;

    MI_U32 u32YPos;

    MI_U32 u32HotSpotX;

    MI_U32 u32HotSpotY;

    MI_FB_GlobalAlpha_t stAlpha;

    MI_FB_ColorKey_t stColorKey;

    MI_BOOL bShown;

    MI_FB_CursorImage_t stCursorImageInfo;

    MS_U16 u16CursorAttrMask;

}MI_FB_CursorAttr_t;

Member

Member	Description
u32XPos	X coordinate of cursor position
u32YPos	Y coordinate of cursor position
u32HotSpotX	X coordinate of cursor hotspot
u32HotSpotY	Y coordinate of cursor hotspot
stAlpha	Cursor graphics layer alpha information of MI_FB_GlobalAlpha_t structure
stColorKey	Cursor graphics layer colorkey information of MI_FB_ColorKey_t structure
bShown	Cursor visibility. TRUE means visible, and FALSE means invisible.
MI_FB_CursorImage_t	Icon data information
u16CursorAttrMask	Set the cursor graphics layer parameter modification mask bit

Related Data Type and Interface

MI_FB_CursorAttrMaskbit_e

MI_FB_CursorImage_t

8. PROCFS INTRODUCTION¶

8.1. cat¶

Debug info

# cat /proc/mi_modules/mi_fb0

############################OnDumpOSDAttr####################################
Framebuffer id = MStar FB0
xres=1280, yres=720
xres_virtual=1280, yres_virtual=1440
xoffset=0,yoffset=0
fix.line_length=0xa00 Bytes
fix.smem_start=0xf800000
Memory Size=0x400000 Bytes
Gop ID=0
Gwin ID=0
Open Count=1
Visible State=0
MIU Sel=0
ColorSpace=YUV
ColorFomrmat=ARGB1555
StretchWindow Pos[0,0]
StretchWindow Src[1280,720],StretchWindow Dst[1920,1080]
Gwin Pos[0,0]
Gwin Size[1280,720]
Gwin PhyAddr=0x0
ColorKey Enable=0
ColorKey Val=[0,0,0]
Enable Alpha Blend=1
Enalbe Multi Alpha=0
Global Alpha Val=0x0
Alpha0=0x0,Alpha1=0x0,(Only for ARGB1555)
GOP Hstart=192
Current TimingWidth=1920,TimingWidth=1080,hstar=192
##################################end##########################################

#########################OnDumpHwcursorAttr####################################
Cursor Gop ID=4
Cursor Gwin ID=6
Cursor MIU Sel=0
Cursor PhyAddr=0x166000
Cursor ColorFmt=ARGB8888
Cursor Icon Width=44,Height=56
Cursor HotSpot[18,9]
Cursor request pos[712,207]
Cursor Visible=1
Cursor Gwin Pos[694,198]
Cursor Gwin Size[44,56]
Cursor Gwin Pitch=0x200 Bytes
Curosr StretchWindow pos[0,0]
Cursor StretchWin Src[1280,720],Dst[1920,1080]
Cursor ColorKey Enable=0
Cursor ColorKey Value=[0xff,0xff,0xff]
############################OnDumpHwcursorAttr#################################

Debug info analysis

Record the current Fbdev and Hwcursor usage status and OSD layer/OSD device/Hwcursor attributes, and can dynamically obtain information, which is convenient for debugging and testing.

Parameter Description

Parameter		Description
OSD info	Framebuffer id	Framebuffer device ID
	xres	Visible resolution width
	yres	Visible resolution height
	xres_virtual	Virtual resolution width
	yres_virtual	Virtual resolution height
	xoffset	X offset from visible resolution to virtual resolution
	yoffset	Y offset from visible resolution to virtual resolution
	fix.line_length	Bytes per line of virtual resolution
	fix.smem_start	Start address in frame buffer
	Memory Size	Frame buffer memory size, unit: byte
OSD device info	Gop ID	Hardware ID of the layer
	Gwin ID	ID of the hardware display window
	Open Count	Open count of this layer. Add 1 when the user calls open(); minus 1 when calling close()
	Visible State	Display status of this layer. Value: 1: visible; 0: invisible. The user calls FBIOSET_SHOW to set the layer state.
	MIU Sel	The physical memory number for storing frame buffer data. For MSR620 devices, the value is 0.
	ColorSpace	The color space of the layer output. Value: YUV: Output YUV color space, default value; RGB: Output RGB color space.
	ColorFomrmat	Layer color format. Value: ARGB1555, ARGB4444, ARGB8888, RGB565. Update after the user sets the format item in the variable screen.
	StretchWindow Pos	The starting position of the layer on display device. Unit: pixel, default is 0, user can call FBIOSET_SCREEN_LOCATION to set it
	StretchWindow Src	The width and height of the original resolution of the layer. Unit: pixel. Use the hardware zoom function to zoom in to the current timing. Update after the user sets the visible resolution in the variable screen.
	StretchWindow Dst	The width and height of the layer on the display device. By default it is set to output timing size. Set by FBIOSET_SCREEN_LOCATION.
	Gwin Pos	The starting position of the layer display window. Unit: pixel, for OSD, the value is always (0,0)
	Gwin Size	The width and height of the layer display window. Unit: pixel. For OSD, this value is always set to the width and height of the visible resolution. Update after the user sets the visible resolution in the variable screen.
	Gwin PhyAddr	The physical address of the layer currently displayed data
	ColorKey Enable	Enable colorKey or not. Value: 0: N; 1: Y; User can set it by FBIOSET_COLORKEY
	ColorKey Val	RED/GREEN/BLUE channels of ColorKey. Value range of each channel: 0-255. ColorKey val value is in RGB888 format. Users can update it after setting FBIOSET_COLORKEY.
	Enable Alpha Blend	Enable Alpha Blend or not. Value: 0: N; 1: Y, default. Users can update it after setting FBIOSET_GLOBAL_ALPHA. Pixel alpha config is invalid when disabled it. Only pixel alpha is valid when it is enabled and Multi Alpha is disabled. (For ARGB1555 format, Alpha bit is 1, using Global Alpha as pixel alpha; Alpha bit is 0, using 0xff as pixel alpha.) When this item and Multi Alpha are enabled, the pixel alpha and Global Alpha are both valid.
	Enable Multi Alpha	Enable Multi Alpha or not. Value: 0: Y; 1: N, default value. Enable Multi Alpha, then Global Alpha are valid.
	Global Alpha Val	Global Alpha
	Alpha0	In ARGB1555 format, when the highest bit is 0, select Alpha0 as the Alpha blending value. Value: 0~255, the default is 0.
	Alpha1	In ARGB1555 format, when the highest bit is 1, select Alpha1 as the Alpha blending value. Value: 0~255, the default is 0.
	GOP Hstart	The offset of the layer hardware to the display window. This value is related to the current output timing. When the output timing changes, the layer driver is notified by FBIOSET_DISPLAYLAYER_ATTRIBUTES and the u32SetAttrMask value of MI_FB_DisplayLayerAttr_s contains the E_MI_FB_DISPLAYLAYER_ATTR_MASK_SCREEN_SIZE mask bit. The layer driver will set the corresponding hstart value according to the current timing
	Current TimingWidth	The width and height of the current output timing and the offset relative to the display window that should be set for the layer hardware under the current timing. Used in conjunction with GOP Hstart to check whether the hstart value set to the hardware layer is consistent with the current timing.
	Current TimingHeight
	hstar
Hwcursor info	Cursor Gop ID	Cursor layer hardware ID
	Cursor Gwin ID	Cursor layer hardware display window ID
	Cursor MIU Sel	The physical memory number for storing cursor icon data. For MSR620 devices, the value is 0.
	Cursor PhyAddr	The physical address of the cursor layer currently displayed data
	Cursor ColorFmt	The cursor layer format. Value: ARGB1555,ARGB4444,ARGB8888,RGB565. User can set it by FBIOSET_CURSOR_ATTRIBUTE
	Cursor Icon Width	The width and height of the cursor icon. Unit: pixel, user can set it by FBIOSET_CURSOR_ATTRIBUTE.
	Cursor HotSpot	Cursor icon hotspot information. Unit: pixel. Hotspot information is usually related to the cursor icon, and user can set it by FBIOSET_CURSOR_ATTRIBUTE
	Cursor request pos	Cursor request position. Unit: pixel. User can set it by FBIOSET_CURSOR_ATTRIBUTE.
	Cursor Visible	Cursor visible or not. Value: 0: N; 1: Y. User can set it by FBIOSET_CURSOR_ATTRIBUTE.
	Cursor Gwin Pos	Cursor Gwin starting position. Unit: pixel.
	Cursor Gwin Pitch	Bytes per line of the cursor layer. The value is fixed at 0x200.
	Curosr StretchWindow pos	Cursor layer starting position on the display device. Unit: pixel.
	Cursor StretchWin Src	Original size of cursor layer. Unit: pixel. This value is usually the same as the OSD display resolution.
	Cursor StretchWin Dst	The width and height of the cursor layer on the display device. The value is the same as the output timing.
	Cursor ColorKey Enable	Cursor ColorKey enable or not. Value: 0: N; 1: Y. User can set it by FBIOSET_CURSOR_ATTRIBUTE.
	Cursor ColorKey Value	RED/GREEN/BLUE channels of cursor colorKey. Value range of each channel: 0-255. ColorKey val value is in RGB888 format. Users can update after setting FBIOSET_CURSOR_ATTRIBUTE.

8.2. echo¶

Function	Turn on or off the specified layer
Command	echo GUI_SHOW [LayerID] [Status] > /proc/mi_modules/mi_fb0
Parameter Description	[LayerID] Layer id [Status] on / off
Example	echo GUI_SHOW 0 on > /proc/mi_modules/mi_fb0 Turn on the layer fb0 echo GUI_SHOW 0 off > /proc/mi_modules/mi_fb0 Turn off the layer fb0

Function	Turn on or off the HW cursor
Command	echo CURSOR_SHOW [Status] > /proc/mi_modules/mi_fb0
Parameter Description	[Status] on / off
Example	echo CURSOR_SHOW on > /proc/mi_modules/mi_fb0 Turn on the cursor echo CURSOR_SHOW off > /proc/mi_modules/mi_fb0 Turn off the cursor

Function	Set Colorkey for the specified layer
Command	echo GUI_SET_CLRKEY [LayerID] [Red] [Green] [Blue] > /proc/mi_modules/mi_fb0
Parameter Description	[LayerID] Layer id [Red] Red component, hex , in ARGB888 format. [Green] Green component, hex, in ARGB888 format. [Blue] Blue component, hex, in ARGB888 format.
Example	echo GUI_SET_CLRKEY 0 ff 00 00 > /proc/mi_modules/mi_fb0 Set the Colorkey of fb0 to red.

Function	Dump the current displayed cursor icon
Command	echo CURSOR_DUMP [Path] >/proc/mi_modules/mi_fb0
Parameter Description	[Path] Path to save dump data
Example	echo CURSOR_DUMP /mnt > /proc/mi_modules/mi_fb0 Dump cursor icon to /mnt, the file name is CursorData.raw, open with 7yuv, set the width and height to 128, and display Rawdata according to the cursor format setting.

Function	Set the pixel alpha value for alpha bit0 and alpha bi1 of ARGB1555 format respectively. Because currently msr620 does not support this feature, it has not been implemented yet
Command	echo GUI_SETALPHA_ARGB1555 [LayerID] [Alpha0] [Alpha1]> /proc/mi_modules/mi_fb0
Parameter Description	[LayerID] Layer id [Alpha0] alpha0 value [Alpha1] alpha1 value
Example	None

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOGET_VSCREENINFO	ioctl number	Input
var	Variable information structure pointer	Output

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOPUT_VSCREENINFO	ioctl number	Input
var	Variable information structure pointer	Input

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOGET_FSCREENINFO	ioctl number	Input
fix	Fixed information structure pointer	Output

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOPAN_DISPLAY	ioctl number	Input
var	Variable information structure pointer	Input

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOGET_GLOBAL_ALPHA	ioctl number	Input
pstAlpha	Pointer to MI_FB_GlobalAlpha_t structure	Output

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOSET_GLOBAL_ALPHA	ioctl number	Input
pstAlpha	Pointer to MI_FB_GlobalAlpha_t structure	Input

Parameter Name	Description	Input/Output
Fd	Framebuffer device file descriptor	Input
FBIOGET_COLORKEY	ioctl number	Input
pstColorKey	Pointer to MI_FB_ColorKey_t structure	Output

Parameter Name	Description	Input/Output
fd	Framebuffer device file descriptor	Input
FBIOSET_COLORKEY	ioctl number	Input
pstColorKey	Pointer to MI_FB_ColorKey_t structure	Input

Member	Description
bKeyEnable	Colorkey enable. TRUE: Enable FALSE: Not enable
u8Red	Colorkey R component value
u8Green	Colorkey G component value
u8Blue	Colorkey B component value

Member	Description
u32Xpos	Upper left corner x coordinate
u32Ypos	Upper left corner y coordinate
u32Width	Width
u32Height	Height

Member	Description
E_MI_FB_OUTPUT_RGB	RGB Color Space
E_MI_FB_OUTPUT_YUV	YUV Color Space

Member	Description
E_MI_FB_DST_OP0	OP path
E_MI_FB_DST_OP1	OP1 path
E_MI_FB_DST_INVALID	MIXER2OP1

Member	Description
u32Width	Icon width
u32Height	Icon height
u32Pitch	Pitch
eColorFmt	Icon data pixel format
data	Icon data

MI FB API

1. Development Process¶

1.1. Configure MI_FB startup parameters¶

2. API INTRODUCTION¶

2.1. File Operation Type¶

2.2. Memory Map Type¶

2.3. Memory Control and Status Query Type¶

2.4. Interlayer Effect Control and Status Query Type¶

3. STANDARD FUNCTION¶

3.1. FBIOGET_VSCREENINFO¶

3.2. FBIOPUT_VSCREENINFO¶

3.3. FBIOGET_FSCREENINFO¶

3.4. FBIOPAN_DISPLAY¶

4. EXTENDED FUNCTION¶

4.1. FBIOGET_SCREEN_LOCATION¶

4.2. FBIOSET_SCREEN_LOCATION¶

4.3. FBIOGET_SHOW¶

4.4. FBIOSET_SHOW¶

4.5. FBIOGET_GLOBAL_ALPHA¶

4.6. FBIOSET_GLOBAL_ALPHA¶

4.7. FBIOGET_COLORKEY¶

4.8. FBIOSET_COLORKEY¶

4.9. FBIOSET_DISPLAYLAYER_ATTRIBUTES¶

4.10. FBIOGET_DISPLAYLAYER_ATTRIBUTES¶

5. CURSOR RELATED FUNCTION¶

5.1. FBIOGET_CURSOR_ATTRIBUTE¶

5.2. FBIOSET_CURSOR_ATTRIBUTE¶

6. ERROR CODE¶

7. FB DATA TYPE¶

7.1. Standard Data Type¶

7.1.1. struct fb_bitfield¶

7.1.2. struct fb_var_screeninfo¶

7.1.3. struct fb_fix_screeninfo¶

7.2. Extended Data Type¶

7.2.1. MI_FB_ColorFmt_e¶

7.2.2. MI_FB_DisplayLayerAttrMaskbit_e¶

7.2.3. MI_FB_GlobalAlpha_t¶

7.2.4. MI_FB_ColorKey_t¶

7.2.5. MI_FB_Rectangle_t¶

7.2.6. MI_FB_DisplayLayerAttr_t¶

7.2.7. MI_FB_OutputColorSpace_e¶

7.2.8. MI_FB_DstDisplayplane_e¶

7.2.9. MI_FB_CursorAttrMaskbit_e¶

7.2.10. MI_FB_CursorImage_t¶

7.2.11. MI_FB_CursorAttr_t¶

8. PROCFS INTRODUCTION¶

8.1. cat¶

8.2. echo¶
