SSD_FBDEV


1. Overview

fbdev is used to provide a layer of software abstraction for the display graphics hardware. It agents the framebuffer of the graphics hardware, and provides some well-defined interfaces for application software to access the graphics hardware, regardless of the specific control details of the low-level graphics hardware.

Access fbdev through some specific device nodes, such as /dev/fb* located in the /dev directory.

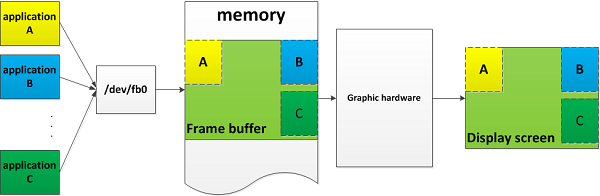

A simple framebuffer Usage scenarios:

3 applications modify the framebuffer through the fb device node fb0, and then the graphics hardware outputs the modified content to the display terminal.


2. User’s View of /dev/fb*

fbdev is currently a character device, the first device number is 29, the last device number marks the frame buffer number.

For convenience, the device node will be generated as follows (the number represents the device number):

0 = /dev/fb0 First frame buffer

1 = /dev/fb1 Second frame buffer

...

31 = /dev/fb31 32nd frame buffer

fbdev is also a normal memory device. It means that you can read and write its contents. For example:

  1. Screenshot operation:

    cp /dev/fb0 myfile

  2. Draw a white pixel to the upper left corner of the screen:

    echo -en '\xFF\xFF\xFF\x00' > /dev/fb0

  3. mmap /dev/fb0 is used for more detailed drawing :

    int fb = open("/dev/fb0", O_RDWR);
    assert(fb > 0);
    struct fb_var_screeninfo info;
    assert(0 == ioctl(fb, FBIOGET_VSCREENINFO, &info));
    size_t len = 4 * info.xres * info.yres;
    uint32_t *buf = mmap(NULL, len, PROT_READ | PROT_WRITE, MAP_SHARED, fb, 0);
    assert(buf != MAP_FAILED);


    You can easily modify the pixels of (x,y) by assigning values to buf[y * info.xres + x].


3. Closer look to /dev/fb*

The overview mentioned that fbdev agents the display framebuffer of the graphics hardware, and provides some interfaces to control this part of the memory, compared with the simple application scenario of the framebuffer above, the following figure is the memory layout of framebuffer:

  • With different implementations of fbdev, the framebuffer of the graphics hardware that fbdev agents will have different initial attributes. Some are configurable properties (Get struct fb_var_screeninfo defined in "linux/fb.h" through ioctl(fb, FBIOGET_VSCREENINFO, &info)), Some are fixed properties(Get struct fb_fix_screeninfo defined in "linux/fb.h" through ioctl(fb, FBIOGET_FSCREENINFO, &info)).

  • Refer to section 4.1 for sstar initialization.

In the above picture, we need to pay attention to several main attributes:

  • colorformat

    The color format of the framebuffer can be set by ioctl(fb, FBIOPUT_VSCREENINFO, &info), We decide it when we initialize fbdev. For fbdev users, once the color format is determined, they will know how to modify the content of the corresponding pixel.

  • bitsperpixel

    Width of a pixel which is a variables coordinated with the color format. The color format determines the width of the pixel.

  • xres_virtual/yres_virtual

    Get through ioctl FBIOGET_VSCREENINFO/FBIOPUT_VSCREENINFO. The total size of the framebuffer of the fbdev agent is:xres_virtual*yres_virtual*bitsperpixel

  • xres/yres,xoffset/yoffset

    (xoffset,yoffset) (xoffset+xres,yoffset+yres) marks a rectangular box in the framebuffer, which is the buffer area currently displayed. That is to say, the effective area of the display buffer for display can start from the start address of the framebuffer.

Why the display buffer is in the framebuffer?

  • Support different resolution contents.

    Sometimes the memory size of the framebuffer is already applied when FBDEV is initialized. We may need to apply for a framebuffer that can accommodate the maximum resolution, such as 1080p. The display buffer we use now may be 720p.

  • double buffer.

    Using a single buffer cann`t avoid the problem of screen tearing, because you may always modify the undisplayed content, which cause the part that has been displayed by the graphic hardware and the part that is modified to be displayed to be out of place.

    Double buffer is used, buffer#1 is displayed when buffer#0 is modified, and buffer#0 is displayed when buffer#1 is modified


4. sstar FBDEV Introduction


4.1. sstar initialization

  • Implement FBDEV software module fbdev.ko。

  • Load FBDEV: insmod fbdev.ko [default_config_path_file=fbdev configure file(absolute path)], optional configuration file, the system default loaded configuration file path /config/fbdev.ini.


4.2. Configuration file - fbdev.ini

# FBDEV 将会根据[FB_DEVICE]项目的定义生成fbdev设备节点
# 可以有多个[FB_DEVICE],并生成多个fbdev设备节点
[FB_DEVICE]
# 该fbdev使用的gop(graphic hardware) ID
FB_HWLAYER_ID = 1
# fbdev的framebuffer使用的gop graphic window ID
FB_HWWIN_ID = 0
# deprecated
FB_HWLAYER_DST = 3
# 该fbdev的framebuffer使用的颜色格式
# RGB565 = 1
# ARGB4444 = 2
# ARGB8888 = 5
# ARGB1555 = 6
# YUV422 = 9
# I8 = 4
# I4 = 13
# I2 = 14
FB_HWWIN_FORMAT = 5
# 修改Output color,0为RGB,1为YUV
FB_HWLAYER_OUTPUTCOLOR = 1
# 该fbdev的framebuffer的初始化xres
FB_WIDTH = 1280
# 该fbdev的framebuffer的初始化yres
FB_HEIGHT = 720
#在自动获取到当前的显示timing之前,使用的初始化gop输出timing 宽
FB_TIMMING_WIDTH = 1920
#在自动获取到当前的显示timing之前,使用的初始化gop输出timing 高
FB_TIMMING_HEIGHT = 1080
# 如果系统的mmap有layout项目为E_MMAP_ID_FB
# 那么FBDEV的framebuffer 将使用此处的内存
FB_MMAP_NAME = E_MMAP_ID_FB
# 如果系统的mmap没有为FBDEV layout一块内存
# 那么FBDEV的framebuffer将申请如下长度的内存作为framebuffer
# FB_BUFFER_LEN >= xres*yres*bytesperpixel*displayBufCnt
FB_BUFFER_LEN = 8192
#unit:Kbyte,4096=4M, fbdev.ko alloc size = FB_BUFFER_LEN*1024

# FBDEV 支持的硬件鼠标配置
[FB_CURSOR]
# 鼠标层使用的gop ID
FB_HWLAYER_ID = 0
# 鼠标层使用的gop graphic window ID
FB_HWWIN_ID = 0
# deprecated
FB_HWLAYER_DST = 3
# 鼠标层使用的颜色格式
# RGB565 = 1
# ARGB4444 = 2
# ARGB8888 = 5
# ARGB1555 = 6
# YUV422 = 9
# I8 = 4
# I4 = 13
# I2 = 14
FB_HWWIN_FORMAT = 6
# 修改Output color,0为RGB,1为YUV
FB_HWLAYER_OUTPUTCOLOR = 1
# 如果系统的mmap有layout项目为E_MMAP_ID_FB
# 那么FBDEV的鼠标层 将使用此处的内存
# 如果系统的mmap没有为FBDEV layout一块内存
# 那么FBDEV的鼠标层将自己申请128K内存
FB_MMAP_NAME = E_MMAP_ID_HW_CURSOR

# deprecated,fbdev 设备之间的z order(谁显示在上层或者下层)
[LAYER_ZORDER]
LAYER_ZORDER0 = 0
LAYER_ZORDER1 = 1
LAYER_ZORDER2 = 2
LAYER_ZORDER3 = 3
LAYER_ZORDER4 = 4

4.3. Graphic hardware (GOP) in sstar

GOP: graphic output path.

The configuration file of fbdev.ini, each fbdev will be bound with a GOP ID and a GWIN ID. In sstar's hardware platform, there can be multiple GOPs, and a single GOP may control multiple graphic windows (Gwins). Each Gwin corresponds to a display buffer in the framebuffer. The number of specific GOPs/Gwins differs depending on the platform.

  • GOP/Gwin stacking order

    Take the Takoyaki platform as an example. It has 2 GOPs, and each one supports the management of 1 gwin, as shown in the figure below:

  • Difference between GOPs

    There may be differences between GOPs, and the uses of different GOPs have tendencies. Take the Takoyaki platform as an example:

    • Support color format

    • Whether to support stretch


4.4. Takoyaki DISP_GOP attribute

Attribute GOP0 GOP1
color format YUV422
RGB565
ARGB8888
ARGB4444 ARGB4444
ARGB1555 ARGB1555
I8 I8
I4 I4
I2 I2
Scale No support for scaling. FB_WIDTH==FB_TIMING_WIDTH,FB_HEIGHT==FB_TIMING_HEIGHT Support for scaling up, max(xres)=1280
Number of GWIN supported 1 1
FB_WIDTH aligned 16/BytesPerPixel 16/BytesPerPixel
alpha0/alpha1 for ARGB1555 Support setting alpha0 and alpha1 separately Only supports setting alpha1 ,alpha0=0x0
global alpha Support Support
colorkey Support Support

4.5 Ikayaki DISP_GOP attribute

Attribute GOP0
color format YUV422
Scale Support for scaling up, max(xres)=1280
Number of GWIN supported 1
global alpha Support
FB_WIDTH alignment 16/BytesPerPixel
colorkey Support
alpha0/alpha1 for ARGB1555 Only supports setting alpha1,alpha0=0x0
RGB565
ARGB8888
ARGB4444
ARGB1555
I8
I4
I2

5. Interfaces

The overview mentioned that fbdev defines some Interfaces for users to operate framebuffer. It should be noted that the degree of realization of these interfaces depends on the degree of realization of the linux-defined interface by the implementor of FBDEV. Generally speaking, it is not necessary to implement all the interface definitions for some platforms.

For example: color map/write&read function, etc. Because the index color display effect is not as good as ARGB32, it is more convenient to use mmap to operate framebuff than the wirte&read.

FBDEV can provide a proprietary control interface for a specific platform.

Interface support table

User Space operation interface Description sstar supported platform
open/fopen/close/fclose Open/close fbdev as a file all
write/fwrite/read/fread Read and write fbdev by reading and writing files none
mmap Make fbdev memory mapping all
iocontrol fbdev supports iocontrol to send control commands all

linux standard iocontrol command table

iocontrol command Description sstar supported platform
FBIOGET_VSCREENINFO Get variable information of fbdev all
FBIOPUT_VSCREENINFO Set variable information of fbdev all
FBIOGET_FSCREENINFO Get fixed information of fbdev all
FBIOPAN_DISPLAY Panning display, after modifying the visible area of vinfo all
FBIOPUTCMAP Set colormap of fbdev none
FBIOGETCMAP Get colormap of fbdev none
FBIOGET_CON2FBMAP Get console corresponded framebuffer all
FBIOPUT_CON2FBMAP Map console corresponded framebuffer all
FBIOBLANK Clear framebuffer none

Sstar proprietary iocontrol command table

iocontrol command Description sstar supported platform
FBIOGET_SHOW Get the display status of fbdev all
FBIOSET_SHOW Set the display status of fbdev all
FBIOGET_SCREEN_LOCATION Get display area position information in framebuffer all
FBIOSET_SCREEN_LOCATION Set display area position information in framebuffer all
FBIOGET_GLOBAL_ALPHA Get global alpha of fbdev and index alpha information of ARGB1555 all
FBIOSET_GLOBAL_ALPHA Set global alpha of fbdev and index alpha information of ARGB1555 all
FBIOGET_COLORKEY Get the colorkey information of fbdev all
FBIOSET_COLORKEY Set the colorkey information of fbdev all
FBIOGET_DISPLAYLAYER_ATTRIBUTES Get fbdev display information all
FBIOSET_DISPLAYLAYER_ATTRIBUTES Set fbdev display information all
FBIOGET_CURSOR_ATTRIBUTE Set mouse information of fbdev all
FBIOSET_CURSOR_ATTRIBUTE Get mouse information of fbdev all
