1. OVERVIEW¶

1.1. Module Description¶

MI_SYS is the foundation module for the entire MI system, and it provides the basis for the operation of other MI modules.

Figure 1‑1 : MI_SYS System Framework

As shown in Figure 1‑1, the main functions of the MI_SYS Overview are as follows:

Realize MI system initialization, MMA memory buffer pool management.
Provides the registration device nodes of each module, the general interface established by the proc system.
Provide s/he interface for each module to establish a binding relationship and manage the flow of data between the modules.
Provide s/he interface for each module to request MMA continuous physical memory, manage memory allocation, map virtual addresses, and reclaim memory.
Provides the interface of each module to establish the worker thread, manages the creation, operation, destruction of each module thread.

The ko file corresponding to MI_SYS is mi_sys.ko, the library files are libmi_sys.so and libmi_sys.a, and the header files are mi_sys.h and mi_sys_datatype.h. Please refer to the API interface description.

Sys impl layer: at the bottom of the MI_SYS, basically sys functionality is implemented here.

Sys internal layer: The Sys impl layer external interface is encapsulated in kernel mode, providing other MI modules with features such as device creation, request memory, creation of threads, and management of memory.

Sys ioctl layer: Sys impl layer external interface encapsulation, composed of the format of ioctl, provided by sys api call.

Sys api layer: The Sys api layer compiles once each in kernel mode and user mode, but is currently only open to user mode calls, i.e. the api interface that is finally open to customers. Please refer to the API interface instructions for specific functions.

Tips:

The Sys impl layer, the Sys internal layer, the Sys ioctl layer are implemented in "mi_sys.ko", the Sys api layer is implemented in "libmi_sys.so", the header file is (mi_sys.h, mi_sys_datatype.h, mi_ sys.h).

1.2. Document format constraints¶

Body: for writing the body content of the document, where the writing of the snippet needs to be written in an equal-width font.

Body and bold: For writing important content in the body of a document.

Italics: for writing in the Tips section of the document.

Italics and boldness: For writing important content in the Tips section of the document.

1.3. Keyword Description¶

ID: An abbreviation for Identity document, which means unique encoding.

MI: SStar SDK Middle Interface abbreviation, in this article, if a similar structure of "MI_SYS" appears to represent the MI SYS module, if it is a simple "MI", refers to the entire SDK.

Hex: Hex.

Kernel Mode: refers to code that works in kernel environments and has control over the hardware that operates directly, such as functions and threads in ko.

User Mode: refers to working in a User environment, such as customer applications, system calls, and so on.

APP: An abbreviation for Application, which refers primarily to an application that calls the MI API.

API: Application Interface, Application Interface.

NVR: Network Video Recorder, or Network Video Recorder.

IPC: Full name IP Camera, or webcam.

HW: Full name hardware, that is, hardware.

Dev: Full name Device, which is described in this article as the MI module device, 1.4.1 is explained in detail.

Chn: Full Channel, which represents a channel of MI module equipment, 1.4.1 is explained in detail.

Port: This article indicates that a port in the MI module device channel, 1.4.1 is explained in detail.

Additional notes:

Without separate instructions, the MI_SYS in this article have the same meaning as SYS, MI_DISP, and DISP, and the remaining modules have similar names.
All module names that appear in this article can be found in MI_ModuleId_e.

1.4. Flow frame¶

1.4.1. Relationship between Dev/Chn/Port¶

A typical MI module will have a Dev/chn/Port three-stage structure as shown in Figure 1‑2.

Dev

An MI module will have one or more Devs, and in general different Devs indicate that the module device needs to invoke different HW resources or work in different working patterns. For example, VENC needs to invoke different HW resources when encoding H264/H265 and Jpeg, and Dev has to separate.
Chn

A Dev will have one or more Chns, which generally mean that the channel is different, and that the channel, although it shares HW resources with other Chns under Dev, is different from the data source or working pattern. For example, the source of the code flow is different, Chn is generally not the same.
Port

A Chn will have one or more ports, which means port, consisting of Input Port and Output Port. In general, different Ports indicate that the channel shares HW resources and data sources with other Ports under Dev and Chn, but the parameters that need to be set are different, such as different resolutions, and Port is generally different.

In general, Port is the smallest independent unit for the customer to operate the MI module because it identifies all the information: HW resources, data sources, parameter properties.

Each Port consists of InputPort and OutputPort, which are the ports for data inflows, and OutputPort, which is the port of data flowing out. It is important to note, however, that a Port does not always have input Port and OutputPort, depending on the behavior of the module. Modules like Disp only need InputPort, and output Port is needed, and it shows the results directly on the Panel. A module like Vdec, where the data can be fed directly by a user calling the Vdec interface, does not go through InputPort, so that he does not have OutputPort.

Figure 1‑2 : Three-level structure of the MI module

Tips:

1. The boundaries between Chn and Port are not always clear, if there is a difference between the interpretation of a module's API documentation and the explanation above, call the module to its API documentation.

2. InputPort/OutpuPort for a Port is usually only one or zero, with the exception of some special modules. Vpe module has one InputPort and multiple OutputPorts. This means that Vpe shares the same data source, but must have different output formats of different specifications.

1.4.2. A typical NVR data stream¶

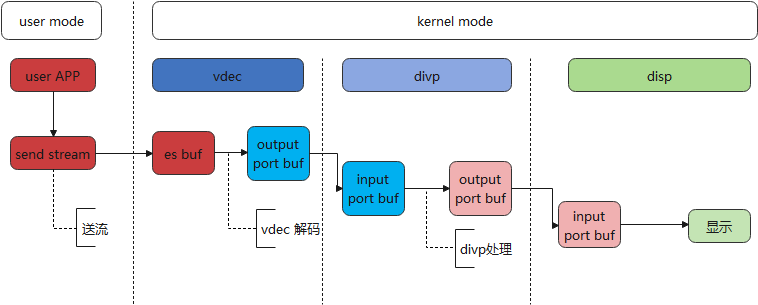

Figure 1‑3 is a typical NVR data flow model. The flow process is as follows:

Establishing a binding relationship with Vdec-Divp-Disp;
The user writes a stream of yards to es buf in Vdec;
Vdec decoding, writing decoded data to Vdec OutpuPort requested memory, sent to the next level;
Divp receives the data, sends it to Divp HW for processing, writes to Divp OutputPort, and sends it to the next level;
Disp will receive the data displayed.

Figure 1‑3 : A typical NVR data flow model

1.4.3. A typical IPC data stream¶

Figure 1‑4 is a typical IPC data flow model with the following flow procedures:

Establishing a binding relationship with Vif-Vpe-Venc;
Sensor feeds the data into vif processing;
Vif sends the processed data to the memory requested by Output Port and sends it to the next level;
Vpe receives the data, feeds it into Pass0 (ISP/SCL0), Pass1 (LDC), Pass2 (SCL1) for processing, and writes the processed data to the memory requested by Output Port and sends it to the next level;
Venc receives the data, feeds the encoder for coding processing, and writes the encoded data to the RingPool memory area;
The user calls Venc's interface to retrieve the stream and feeds it into the user's business layer app.

Figure 1‑4 : A typical IPC data flow model

Tips:

The flow of data between the three Passes inside Vpe is actually more complex than in the figure. But this is all MI internal processing logic, using the API without excessive attention.

1.5. Insmod Parameter List¶

The parameters that can be carried after insmod mi_sys.ko are as follows.

Table 1-1 Parameter list

Parameter	Description	Value
bEnableMmuPool	Whether to enable MMU	1: enable mmu 0:disable mmu Ex: bEnableMmuPool=1, enable mmu bEnableMmuPool=0, disable mmu
logBufSize	Memory length of cache log	Default: 4KByte; Unit: Byte Ex: logBufSize=4096, set 4096Byte, which is 4KByte
cmdQBufSize	cmdq memory size	Determined by product specifications, unit: KByte Ex: cmdQBufSize=256, set 256KByte

2. API Reference¶

2.1. API Format Description¶

This manual uses information about the Description APIs for the 8 reference domains, which are represented by Table 2-1.

Table 2‑1 : API Format Description

Label	Function
Function	Briefly Description the main features of the API.
Syntax	List the header files that should be included in the call API and the prototype declaration of the API.
Parameters	List the parameters, parameter descriptions, and parameter properties of the API.
Return value	List all possible return values of the API and what it means.
Dependency	Lists the header files that the API contains and the library files that the API will link to when the API compiles.
Attention	List the things you should be aware of when using the API.
Example	List instances that use the API.
Related topics	The interface associated with the call context.

2.2. Feature Module API List¶

As mentioned earlier, we can roughly divide the MI_SYS's API into three broad categories: system functional class, data flow class, memory management class.

Table 2‑2 : API List

API Name	Function
System functional class
MI_SYS_Init	Initialize the MI_SYS system
MI_SYS_Exit	Destructing MI_SYS System
MI_SYS_GetVersion	Get the system version number of MI
MI_SYS_GetCurPts	Get the current timestamp of the MI system
MI_SYS_InitPtsBase	Initializing MI System Baseline Timestamp
MI_SYS_SyncPts	Synchronized MI system timestamp
MI_SYS_SetReg	Set the value of the register, debug with
MI_SYS_GetReg	Get the value of the register, debug with
MI_SYS_ReadUuid	Get Chip's Unique ID
MI_SYS_EnableChnOutputPortLowLatency	Enable or disable output port low latency
MI_SYS_InitDev	Initialize sys device
MI_SYS_DeInitDev	De-initialize sys device
MI_SYS_SetGlobalFlag	Set global flag bit value
Data stream class
MI_SYS_BindChnPort	Binding of the data source Output port to the recipient Input port
MI_SYS_BindChnPort2	Binding from the output port of the data source to the recipient Input port, requiring a working mode to be specified
MI_SYS_UnBind_ChnPort	The de-binding of the data source Output port to the recipient Input port
MI_SYS_GetBindbyDest	Query the corresponding source Output port for the data recipient Input port
MI_SYS_ChnInputPortGetBuf	Get the buf of channel input Port
MI_SYS_ChnInputPortPutBuf	Add the buf of the channel input Port to the pending queue
MI_SYS_ChnOutputPortGetBuf	Get the buf of the channel output Port
MI_SYS_ChnOutputPortPutBuf	Release channel outputPort's buf
MI_SYS_ChnInputPortGetBufPa	The buf object corresponding to the allocation channel input port, which only returns MIU physical address
MI_SYS_ChnInputPortPutBufPa	Add the buf object corresponding to the channel input port to the pending queue, which needs to be used in pair with the function MI_SYS_ChnInputPortGetBufPa
MI_SYS_ChnOutputPortGetBufPa	The buf object corresponding to the allocation channel ouput port, which only returns MIU physical address
MI_SYS_ChnOutputPortPutBufPa	Release channel output port corresponding to the buf object, which needs to be used in pair with the function MI_SYS_ChnOutputPortGetBufPa
MI_SYS_SetChnOutputPortDepth	Set the depth of the channel OutputPort
MI_SYS_ChnPortInjectBuf	Inject output Port Buf data into module channel inputPort Port
MI_SYS_GetFd	Get the file Description character of the current channel wait event
MI_SYS_CloseFd	File Description character to close the current channel
MI_SYS_DupBuf	Duplicate buf object
Memory management classes
MI_SYS_SetChnMMAConf	Set the MMA pool name for the default allocation of memory for the module device channel Output port
MI_SYS_GetChnMMAConf	Get the MMA pool name of the module device channel Output port's default allocated memory
MI_SYS_ConfDevPubPools	Configure and initialize the module's public buffer pool
MI_SYS_ReleaseDevPubPools	Release module public buffer pool
MI_SYS_ConfGloPubPools	Configure and initialize the MI system-wide default VB cache pool
MI_SYS_ReleaseGloPubPools	Release MI System Default VB Cache Pool
MI_SYS_MMA_Alloc	Application requests physical continuous memory from MMA memory management pool
MI_SYS_MMA_Free	Memory allocated to the MMA memory management pool in the user state
MI_SYS_Mmap	Mapping physical memory to CPU virtual addresses
MI_SYS_FlushInvCache	Flush cache CPU virtual address
MI_SYS_Munmap	Unmapping physical memory to virtual addresses
MI_SYS_MemsetPa	Fill the entire physical memory with the DMA hardware module.
MI_SYS_MemcpyPa	Copy the source memory data to the target memory via the DMA hardware module
MI_SYS_BufFillPa	Fill some of the physical memory with the DMA hardware module
MI_SYS_BufBlitPa	Copy parts of the source memory data to parts of the target memory through the DMA hardware module.
MI_SYS_ConfigPrivateMMAPool	Configure private MMA Heap for mold fast
MI_SYS_PrivateDevChnHeapAlloc	Request memory from module channel private MMA Pool
MI_SYS_PrivateDevChnHeapFree	Free memory from module channel private MMA pool
MI_SYS_Va2Pa	Turn CPU virtual address pointer to Physical address
MI_SYS_GetMmaPoolInfo	Get the total free size of the specified mma pool and the maximum physical continuous memory length

2.3. System functional class API¶

2.3.1. MI_SYS_Init¶

Function

MI_SYS_Init initialization, the MI_SYS module provides basic support for other MI modules in the system and needs to be initialized earlier than other MI modules in the system, otherwise other stream types within the module will fail when initialization.
Syntax
```
MI_S32 MI_SYS_Init(void);
```
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- MI_SYS_Init need to be called earlier than other MI modules in the Init function.
- The MI_SYS_Init can be repeatedly called in the same process or in multiple processes, but it must be used in pairs with the MI_SYS_Exit or an error will be reported.
- The system needs to configure the configuration parameters of the MMA memory heap within the kernel boot parameters.

Sample

MI_SYS_Init Sample

MI_S32 ST_Sys_Init(void)

{

    MI_SYS_Version_t stVersion;

    MI_U64 u64Pts = 0;

    STCHECKRESULT(MI_SYS_Init());

    memset(&stVersion, 0x0, sizeof(MI_SYS_Version_t));

    STCHECKRESULT(MI_SYS_GetVersion(&stVersion));

    ST_INFO("u8Version:%s\n", stVersion.u8Version);

    STCHECKRESULT(MI_SYS_GetCurPts(&u64Pts));

    ST_INFO("u64Pts:0x%llx\n", u64Pts);

    u64Pts = 0xF1237890F1237890;

    STCHECKRESULT(MI_SYS_InitPtsBase(u64Pts));

    u64Pts = 0xE1237890E1237890;

    STCHECKRESULT(MI_SYS_SyncPts(u64Pts));

    return MI_SUCCESS;

}

MI_S32 ST_Sys_Exit(void)

{

    STCHECKRESULT(MI_SYS_Exit());

    return MI_SUCCESS;

}

Tips:

This example is intended for: MI_SYS_Init / MI_SYS_Exit / MI_SYS_GetVersion / MI_SYS_GetCurPts / MI_SYS_InitPtsBase / MI_SYS_SyncPts / MI_SYS_ReadUuid .

Related topics

MI_SYS_Exit

2.3.2. MI_SYS_Exit¶

Function

MI_SYS_Init ialization, before calling MI_SYS_Exit, you need to make sure that all other modules in the system have been deinitialized and that all VBPOOL has been Destroyed or the MI_SYS_Exit will return to failure.
Syntax
```
MI_S32 MI_SYS_Exit (void);
```
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- MI_SYS_Exit Before calling, make sure that all other modules in the system have been deinitialized.
- MI_SYS_Exit Before calling, you need to make sure that all created VBPOOL in the system has been successfully destroyed.
Sample

Reference MI_SYS_Init Sample.
Related topics

MI_SYS_Init

2.3.3. MI_SYS_GetVersion¶

Function

Get the system version number of MI.

Syntax

MI_S32 MI_SYS_GetVersion (MI_SYS_Version_t *pstVersion);

Parameters

Parameter Name Description Input/Output

pstVersion System version number returns data structure pointer Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_Init Sample.

2.3.4. MI_SYS_GetCurPts¶

Function

Get the current timestamp of the MI system.

Syntax

MI_S32 MI_SYS_GetCurPts (MI_U64 *pu64Pts);

Parameters

Parameter Name Description Input/Output

pu64Pts The system's current timestamp returns address Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_Init Sample.

2.3.5. MI_SYS_InitPtsBase¶

Function

Initializing MI System Baseline Timestamp.

Syntax

MI_S32 MI_SYS_InitPtsBase (MI_U64 u64PtsBase);

Parameters

Parameter Name Description Input/Output

u64PtsBase Set system timestamp baseline Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_Init Sample.

2.3.6. MI_SYS_SyncPts¶

Function

Synchronized MI system timestamp.
Syntax
```
MI_S32 MI_SYS_SyncPts (MI_U64 u64Pts);
```
Parameters

Parameter Name Description Input/Output

u64Pts Fine-tuned system timestamp baseline Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_Init Sample.

2.3.7. MI_SYS_SetReg¶

Function

Set the value of the register.

Syntax

MI_S32 MI_SYS_SetReg (MI_U32 u32RegAddr, MI_U16 u16Value，MI_U16 u16Mask);

Parameters

Parameter Name	Description	Input/Output
u32RegAddr	Register Bus Address	Input
u16Value	16bit register value to be written	Input
u16Mask	This time the Mask mask ingests the bar for the register value	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

2.3.8. MI_SYS_GetReg¶

Function

Get the value of the register, debug with.

Syntax

MI_S32 MI_SYS_GetReg (MI_U32 u32RegAddr, MI_U16 *pu16Value);

Parameters

Parameter Name Description Input/Output

u32RegAddr Register Bus Address Input

pu16Value To read back to 16bit register value return address Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

2.3.9. MI_SYS_ReadUuid¶

Function

Get Chip's Unique ID.

Syntax

MI_S32 MI_SYS_ReadUuid (MI_U64 *u64Uuid);

Parameters

Parameter Name Description Input/Output

u64Uuid Get a pointer to the chip unique ID value Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_Init Sample.

2.3.10. MI_SYS_EnableChnOutputPortLowLatency¶

Function

Enable or disable output port low latency.

Syntax

MI_S32 MI_SYS_EnableChnOutputPortLowLatency(MI_SYS_ChnPort_t *pstChnPort,MI_BOOL bEnable , MI_U32 u32Param);

Parameters

Parameter Name	Parameter meaning	Input/Output
pstChnPort	A pointer to the output port of the module channel	Input
bEnable	TRUE: enable; FALSE: disable, in default.	Input
u32Param	Low Latency parameter, which is determined by specific modules. For VPE, it is used for configuring the line count. The buffer of frame is sent to user or backward once the count of lines is written, instead of waiting for the whole frame done.	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

When bEnable is true, u32Param must be greater than 0; otherwise the setting is invalid.

Sample

MI_SYS_ChnPort_t stChnPort;

stChnPort.eModId = E_MI_MODULE_ID_VPE;

stChnPort.u32DevId = 0;

stChnPort.u32ChnId = 0;

stChnPort.u32PortId = 0;

MI_SYS_EnableChnOutputPortLowLatency(&stChnPort,TRUE , 100);

MI_SYS_EnableChnOutputPortLowLatency(&stChnPort,FALSE , 0);

2.3.11. MI_SYS_InitDev¶

Function

MI_SYS_Init ialization, the MI_SYS module provides basic support for other MI modules in the system and needs to be initialized earlier than other MI modules in the system, otherwise other stream types within the module will fail when initialization.

Syntax

MI_S32 MI_SYS_InitDev(MI_SYS_InitParam_t *pstInitParam);

Parameters

Parameter Name Description Input/Output

pstInitParam Initialization Parameter Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- MI_SYS_Init need to be called earlier than other MI modules in the Init function.
- The system needs to configure the configuration parameters of the MMA memory heap within the kernel boot parameters.
- pstInitParam is not used now, the null value can be passed in.
- This interface is recommended in version 2.17 or above, use to replace the original MI_SYS_Init interface.
Related topics

MI_SYS_DeInitDev

2.3.12. MI_SYS_DeInitDev¶

Function

MI_SYS initialization, before calling MI_SYS_DeInitDev, you need to make sure that all other modules in the system have been deinitialized and that all VBPOOL has been Destroyed or the MI_SYS_DeInit will return to failure.
Syntax
```
MI_S32 MI_SYS_DeInitDev(void);
```
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- This interface should be called after device has been initialized; otherwise a failed message will be returned.
- This interface does not support multiple calls under the same process, otherwise a failed message will be returned.
- MI_SYS_DeInitDev Before calling, make sure that all other modules in the system have been deinitialized.
- This interface is recommended in Version 2.17 and above, use to replace the original MI_SYS_Exit interface
Related topics

MI_SYS_InitDev

2.3.13. MI_SYS_SetGlobalFlag¶

Function

Set the global flag bit value, which is used to notice MI_SYS that the IR light is turned on, currently supports setting the IR flag bit value.

Syntax

MI_S32 MI_SYS_SetGlobalFlag(MI_SYS_GlobalFlagParam_t *pstGlobalFlagParam);

Parameters

Parameter Name Description Input/Output

pstGlobalFlagParam Set global Flag parameter Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h、mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- When the IR light is turned on, set the value member in MI_SYS_GlobalFlagParam_t to 1 through MI_SYS_SetGlobalFlag, so that the u32IrFlag member in stBufInfo obtained through MI_SYS_ChnOutputPortGetBuf will also be 1.
- If MI_SYS_SetGlobalFlag is called in the interrupt, bIsr in MI_SYS_GlobalFlagParam_t needs to be set to 1.

2.4. Data flow class API¶

2.4.1. MI_SYS_BindChnPort¶

Function

Binding of the data source Output port to the data receiver Input port.

Syntax

MI_S32 MI_SYS_BindChnPort( *pstSrcChnPort, *pstDstChnPort, ,MI_U32 u32SrcFrmrate, MI_U32 u32DstFrmrate);

Parameters

Parameter Name	Parameter meaning	Input/Output
pstSrcChnPort	Source port configuration information data structure pointer	Input
pstDstChnPort	Target port configuration information data structure pointer	Input
u32SrcFrmrate	Frame rate of source port configuration	Input
u32DstFrmrate	Frame rate of target port configuration	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The source port must be a channel Output port.
- The destination port must be a channel Input port.
- The source and destination ports must not have been bound before.
- This interface only supports binding modules in E_MI_SYS_BIND_TYPE_FRAME_BASE mode, not recommended in version 2.0 or above, please use MI_SYS_BindChnPort2 instead.

Sample

MI_SYS_ChnPort_t stSrcChnPort;

MI_SYS_ChnPort_t stDstChnPort;

MI_U32 u32SrcFrmrate;

MI_U32 u32DstFrmrate;

stSrcChnPort.eModId = E_MI_MODULE_ID_VPE;

stSrcChnPort.u32DevId = 0;

stSrcChnPort.u32ChnId = 0;

stSrcChnPort.u32PortId = 0;

stDstChnPort.eModId = E_MI_MODULE_ID_VENC;

stDstChnPort.u32DevId = 0;

stDstChnPort.u32ChnId = 0;

stDstChnPort.u32PortId = 0;

u32SrcFrmrate = 30;

u32DstFrmrate = 30;

MI_SYS_BindChnPort(&stSrcChnPort, &stDstChnPort, u32SrcFrmrate, u32DstFrmrate);

Related topics

MI_SYS_BindChnPort2

MI_SYS_UnBind_ChnPort

2.4.2. MI_SYS_BindChnPort2¶

Function

Binding of the data source Output port to the data receiver Input port requires additional operating mode.

Syntax

MI_S32 MI_SYS_BindChnPort2(MI_SYS_ChnPort_t *pstSrcChnPort,
MI_SYS_ChnPort_t *pstDstChnPort,MI_U32 u32SrcFrmrate, MI_U32
u32DstFrmrate, MI_SYS_BindType_e eBindType, MI_U32 u32BindParam);

Parameters

Parameter Name	Parameter meaning	Input/Output
pstSrcChnPort	The source port configures the information data structure pointer.	Input
pstDstChnPort	The destination port configures the information data structure pointer.	Input
u32SrcFrmrate	Frame rate of source port configuration	Input
u32DstFrmrate	Frame rate of target port configuration	Input
eBindType	The operating mode of the source port connected to the destination port, refer to the MI_SYS_BindType_e	Input
u32BindParam	Additional parameters to be brought in by different working modes.	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

Note

The source port must be a channel Output port.
The destination port must be a channel Input port.
The same source port can be bound to multiple destination ports.
The same destination port can only be bound to one source port and it must not have been bound before.
MI_SYS_BindChnPort2 can be called multiple times when pstSrcChnPort, pstDstChnPort and eBindType are the same to reset u32SrcFrmrate and u32DstFrmrate that need to be modified.
Older versions of MI SYS do not provide this interface if not found, do not need to be set.

Various eBindType usage scenarios are as follows:

eBindType	Applicable Scenario
E_MI_SYS_BIND_TYPE_SW_LOW_LATENCY	u32 Bind Param represents low latency value, unit ms
E_MI_SYS_BIND_TYPE_HW_RING	u32 Bind Param represents ring buffer depth, currently only vpe and venc (h264/h265) support this model, only all the way
E_MI_SYS_BIND_TYPE_REALTIME	u32 Bind Param unused, jpe imi will go this way, only support all the way; When vif->isp, support one channel; when isp->scl, support multiple channels
E_MI_SYS_BIND_TYPE_FRAME_BASE	u32 Bind Param unused, default is to walk this frame mode

Sample

MI_SYS_ChnPort_t stSrcChnPort;

MI_SYS_ChnPort_t stDstChnPort;

MI_U32 u32SrcFrmrate;

MI_U32 u32DstFrmrate;

MI_SYS_BindType_e eBindType;

MI_U32 u32BindParam;

// a.    When the type of connection between vpe and venc is E_MI_SYS_BIND_TYPE_FRAME_BASE, the code is as follows:

stSrcChnPort.eModId = E_MI_MODULE_ID_VPE;

stSrcChnPort.u32DevId = 0;

stSrcChnPort.u32ChnId = 0;

stSrcChnPort.u32PortId = 0;

stDstChnPort.eModId = E_MI_MODULE_ID_VENC;

stDstChnPort.u32DevId = 0;

stDstChnPort.u32ChnId = 0;

stDstChnPort.u32PortId = 0;

u32SrcFrmrate = 30;

u32DstFrmrate = 30;

eBindType = E_MI_SYS_BIND_TYPE_FRAME_BASE;

u32BindParam = 0;

STCHECKRESULT(MI_SYS_BindChnPort2(&stSrcChnPort, &stDstChnPort, u32SrcFrmrate, u32DstFrmrate, eBindType, u32BindParam));

//b.    When the type of connection between vpe and venc is
E_MI_SYS_BIND_TYPE_REALTIME, the code is as follows:

stSrcChnPort.eModId = E_MI_MODULE_ID_VPE;

stSrcChnPort.u32DevId = 0;

stSrcChnPort.u32ChnId = 0;

stSrcChnPort.u32PortId = 0;

stDstChnPort.eModId = E_MI_MODULE_ID_VENC;

stDstChnPort.u32DevId = 1;

stDstChnPort.u32ChnId = 0;

stDstChnPort.u32PortId = 0;

u32SrcFrmrate = 30;

u32DstFrmrate = 30;

eBindType = E_MI_SYS_BIND_TYPE_REALTIME;

u32BindParam = 0;

STCHECKRESULT(MI_SYS_BindChnPort2(&stSrcChnPort, &stDstChnPort, u32SrcFrmrate, u32DstFrmrate, eBindType, u32BindParam));

//c.    When the type of connection between vpe and venc is
E_MI_SYS_BIND_TYPE_HW_RING, the code is as follows:

tSrcChnPort.eModId = E_MI_MODULE_ID_VPE;

stSrcChnPort.u32DevId = 0;

stSrcChnPort.u32ChnId = 0;

stSrcChnPort.u32PortId = 0;

stDstChnPort.eModId = E_MI_MODULE_ID_VENC;

stDstChnPort.u32DevId = 0;

stDstChnPort.u32ChnId = 0;

stDstChnPort.u32PortId = 0;

u32SrcFrmrate = 30;

u32DstFrmrate = 30;

eBindType = E_MI_SYS_BIND_TYPE_HW_RING;

u32BindParam = 1080; //Suppose vpe output resolution is 1920*1080, and
ring buffer depth is 1080

STCHECKRESULT(MI_SYS_BindChnPort2(&stSrcChnPort, &stDstChnPort, u32SrcFrmrate u32DstFrmrate, eBindType, u32BindParam));

Related topics

MI_SYS_BindChnPort2

MI_SYS_UnBind_ChnPort

2.4.3. MI_SYS_UnBind_ChnPort¶

Function

Debinding between the data source Output port to the data receiver Input port.

Syntax

MI_S32 MI_SYS_UnBindChnPort( *pstSrcChnPort, *pstDstChnPort);

Parameters

Parameter Name	Description	Input/Output
pstSrcChnPort	The source port configures the information data structure pointer.	Input
pstDstChnPort	The destination port configures the information data structure pointer.	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The source port must be a channel Output port.
- The destination port must be a channel Input port.
- The source and destination ports must have been bound before
Related topics

MI_SYS_BindChnPort

MI_SYS_BindChnPort2

2.4.4. MI_SYS_GetBindbyDest¶

Function

Query the corresponding source Output port for the data recipient Input port.

Syntax

MI_S32 MI_SYS_GetBindbyDest (MI_SYS_ChnPort_t *pstDstChnPort,
 MI_SYS_ChnPort_t *pstSrcChnPort);

Parameters

Parameter Name	Description	Input/Output
pstDstChnPort	The destination port configures the information data structure pointer.	Input
pstSrcChnPort	The source port configures the information data structure pointer.	Output

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The destination port must be a channel Input port.
- The target port must have been bound before

2.4.5. MI_SYS_ChnInputPortGetBuf¶

Function

The buf object corresponding to the allocation channel input port.

Syntax

MI_S32 MI_SYS_ChnInputPortGetBuf (MI_SYS_ChnPort_t *pstChnPort，MI_SYS_BufConf_t *pstBufConf,  MI_SYS_BufInfo_t *pstBufInfo,  MI_SYS_BUF_HANDLE *phHandle , MI_S32 s32TimeOutMs);

Parameters

Parameter Name	Description	Input/Output
pstChnPort	A pointer to the input port of the module channel	Input
pstBufConf	Memory configuration information to be allocated	Input
pstPortBuf	Return buf pointer	Output
phHandle	Get the handle of intput Port Buf	Output
s32TimeOutMs	Milliseconds waiting for timeout, >=0 is the specific time; <0 is 20ms, which is the default value	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

Sample

MI_SYS_ChnInputPortGetBuf Call Sample

MI_SYS_ChnPort_t stVpeChnInput;

MI_SYS_BUF_HANDLE hHandle = 0;

MI_SYS_BufConf_t stBufConf;

MI_SYS_BufInfo_t stBufInfo;

struct timeval stTv;

MI_U16 u16Width = 1920, u16Height = 1080;

FILE *fp = NULL;

memset(&stVpeChnInput, 0x0, sizeof(MI_SYS_ChnPort_t));

memset(&stBufConf, 0x0, sizeof(MI_SYS_BufConf_t));

memset(&stBufInfo, 0x0, sizeof(MI_SYS_BufInfo_t));

stVpeChnInput.eModId = E_MI_MODULE_ID_VPE;

stVpeChnInput.u32DevId = 0;

stVpeChnInput.u32ChnId = 0;

stVpeChnInput.u32PortId = 0;

fp = fopen("/mnt/vpeport0_1920x1080_pixel0_737.raw","rb");

if(fp == NULL)

{

    printf("file %s open fail\n", "/mnt/vpeport0_1920x1080_pixel0_737.raw");

    return 0;

}

while(1)

{

    stBufConf.eBufType = E_MI_SYS_BUFDATA_FRAME;

    gettimeofday(&stTv, NULL);

    stBufConf.u64TargetPts = stTv.tv_sec*1000000 + stTv.tv_usec;

    stBufConf.stFrameCfg.eFormat = E_MI_SYS_PIXEL_FRAME_YUV422_YUYV;

    stBufConf.stFrameCfg.eFrameScanMode = E_MI_SYS_FRAME_SCAN_MODE_PROGRESSIVE;

    stBufConf.stFrameCfg.u16Width = u16Width;

    stBufConf.stFrameCfg.u16Height = u16Height;

    if(MI_SUCCESS  == MI_SYS_ChnInputPortGetBuf(&stVpeChnInput,&stBufConf,&stBufInfo,&hHandle,0))

    {

        if(fread(stBufInfo.stFrameData.pVirAddr[0], u16Width*u16Height*2, 1, fp) <= 0)

        {

            fseek(fp, 0, SEEK_SET);

        }

        MI_SYS_ChnInputPortPutBuf(hHandle,&stBufInfo, FALSE);

    }

}

Related topics

MI_SYS_ChnInputPortPutBuf

MI_SYS_ChnPortInjectBuf

2.4.6. MI_SYS_ChnInputPortPutBuf¶

Function

Add the buf object corresponding to the channel input port to the pending queue.

Syntax

MI_S32 MI_SYS_ChnInputPortPutBuf (MI_SYS_BUF_HANDLE hHandle ，MI_SYS_BufInfo_t *pstPortBuf， MI_BOOL bDropBuf);

Parameters

Parameter Name	Description	Input/Output
hHandle	Current buf's Handle	Input
pstPortBuf	Buf pointer to be submitted	Input
bDropBuf	Whether to discard buf directly without submitting to the pending queue	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_ChnInputPortGetBuf Call Sample.
Related topics

MI_SYS_ChnInputPortGetBuf

MI_SYS_ChnPortInjectBuf

2.4.7. MI_SYS_ChnOutputPortGetBuf¶

Function

The buf object corresponding to the allocation channel input port.

Syntax

MI_S32  MI_SYS_ChnOutputPortGetBuf (MI_SYS_ChnPort_t *pstChnPort,  MI_SYS_BufInfo_t MI_SYS_BufInfo_t *pstBufInfo ， MI_SYS_BUF_HANDLE *phHandle);

Parameters

Parameter Name	Description	Input/Output
pstChnPort	A pointer to the input port of the module channel	Input
pstBufInfo	Return buf pointer	Output
phHandle	Get the handle of outputPort Buf	Output

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

Sample

MI_SYS_ChnOutputPortGetBuf Sample

MI_SYS_ChnPort_t stChnPort;

MI_SYS_BufInfo_t stBufInfo;

MI_SYS_BUF_HANDLE stBufHandle;

MI_S32 s32Ret = MI_SUCCESS;

MI_S32 s32Fd = 0;

fd_set read_fds;

struct timeval TimeoutVal;

char szFileName[128];

int fd = 0;

MI_U32 u32GetFramesCount = 0;

MI_BOOL _bWriteFile = TRUE;

stChnPort.eModId = E_MI_MODULE_ID_DIVP;

stChnPort.u32DevId = 0;

stChnPort.u32ChnId = DIVP_CHN_FOR_VDF;

stChnPort.u32PortId = 0;

s32Ret = MI_SYS_GetFd(&stChnPort, &s32Fd);

if(MI_SUCCESS != s32Ret)

{

    ST_ERR("MI_SYS_GetFd 0, error, %X\n", s32Ret);

    return NULL;

}

s32Ret = MI_SYS_SetChnOutputPortDepth(&stChnPort, 2, 3);

if (MI_SUCCESS != s32Ret)

{

    ST_ERR("MI_SYS_SetChnOutputPortDepth err:%x, chn:%d,port:%d\n", s32Ret,

        stChnPort.u32ChnId, stChnPort.u32PortId);

    return NULL;

}

sprintf(szFileName, "divp%d.es", stChnPort.u32ChnId);

printf("start to record %s\n", szFileName);

fd = open(szFileName, O_RDWR | O_ CREAT | O_TRUNC, S_IRUSR | S_IWUSR | S_IRGRP | S_IROTH);

if (fd < 0)

{

    ST_ERR("create %s fail\n", szFileName);

}

while (1)

{

    FD_ZERO(&read_fds);

    FD_SET(s32Fd, &read_fds);

    TimeoutVal.tv_sec  = 1;

    TimeoutVal.tv_usec = 0;

    s32Ret = select(s32Fd + 1, &read_fds, NULL, NULL, &TimeoutVal);

    if(s32Ret < 0)

    {

        ST_ERR("select failed!\n");

        //  usleep(10 * 1000);

        continue;

    }

    else if(s32Ret == 0)

    {

        ST_ERR("get divp frame time out\n");

        //usleep(10 * 1000);

        continue;

    }

    else

    {

        if(FD_ISSET(s32Fd, &read_fds))

        {

            s32Ret = MI_SYS_ChnOutputPortGetBuf(&stChnPort, &stBufInfo, &stBufHandle);

            if(MI_SUCCESS != s32Ret)

            {

                //ST_ERR("MI_SYS_ChnOutputPortGetBuf err, %x\n", s32Ret);

                continue;

            }

            // save one Frame YUV data

            if (fd > 0)

            {

                if(_bWriteFile)

                {

write(fd, stBufInfo.stFrameData.pVirAddr[0], stBufInfo.stFrameData.u16Height * stBufInfo.stFrameData.u32Stride[0] +

stBufInfo.stFrameData.u16Height * stBufInfo.stFrameData.u32Stride[1] /2);

                    }

                }

                ++u32GetFramesCount;

                printf("channelId[%u] u32GetFramesCount[%u]\n", stChnPort.u32ChnId, u32GetFramesCount);

                MI_SYS_ChnOutputPortPutBuf(stBufHandle);

            }

        }

    }

    if (fd > 0)

    {

        close(fd);

        fd = -1;

    }

    MI_SYS_SetChnOutputPortDepth(&stChnPort, 0, 3);

    printf("exit record\n");

    return NULL;

Related topics

MI_SYS_ChnOutputPortPutBuf

MI_SYS_ChnPortInjectBuf

2.4.8. MI_SYS_ChnOutputPortPutBuf¶

Function

Release channel output port corresponding to buf object.

Syntax

MI_S32 MI_SYS_ChnOutputPortPutBuf (MI_SYS_BUF_HANDLE hBufHandle);

Parameters

Parameter Name Description Input/Output

hBufHandle handle for buf to be submitted Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_ChnOutputPortGetBuf Sample.
Related topics

MI_SYS_ChnOutputPortGetBuf

MI_SYS_ChnPortInjectBuf

2.4.9. MI_SYS_ChnInputPortGetBufPa¶

Function

The buf object corresponding to the allocation channel input port, which only returns MIU physical address.

Syntax

MI_S32 MI_SYS_ChnInputPortGetBufPa (MI_SYS_ChnPort_t *pstChnPort，MI_SYS_BufConf_t *pstBufConf,  MI_SYS_BufInfo_t *pstBufInfo,  MI_SYS_BUF_HANDLE *phHandle , MI_S32 s32TimeOutMs);

Parameters

Parameter Name	Description	Input/Output
pstChnPort	A pointer to the input port of the module channel	Input
pstBufConf	Configuration information of the memory to be allocated	Input
pstPortBuf	Return buf pointer	Output
phHandle	Get the handle of intput Port Buf	Output
s32TimeOutMs	Milliseconds waiting for timeout, >=0 is the specific time; <0 is 20ms, which is the default value	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

The difference with MI_SYS_ChnInputPortGetBuf: Only phyAddr can be used in pstBufInfo obtained by MI_SYS_ChnInputPortGetBufPa, while phyAddr and pVirAddr in pstBufInfo obtained by MI_SYS_ChnInputPortGetBuf can be used.

Sample

MI_SYS_ChnInputPortGetBufPa Call Sample

MI_SYS_ChnPort_t stVpeChnInput;

MI_SYS_BUF_HANDLE hHandle = 0;

MI_SYS_BufConf_t stBufConf;

MI_SYS_BufInfo_t stBufInfo;

struct timeval stTv;

MI_U16 u16Width = 1920, u16Height = 1080;

FILE *fp = NULL;

void *pVirAddr = NULL;

memset(&stVpeChnInput, 0x0, sizeof(MI_SYS_ChnPort_t));

memset(&stBufConf, 0x0, sizeof(MI_SYS_BufConf_t));

memset(&stBufInfo, 0x0, sizeof(MI_SYS_BufInfo_t));

stVpeChnInput.eModId = E_MI_MODULE_ID_VPE;

stVpeChnInput.u32DevId = 0;

stVpeChnInput.u32ChnId = 0;

stVpeChnInput.u32PortId = 0;

fp = fopen("/mnt/vpeport0_1920x1080_pixel0_737.raw", "rb");

if (fp == NULL)

{

    printf("file %s open fail\n", "/mnt/vpeport0_1920x1080_pixel0_737.raw");

    return 0;

}

while (1)

{

    stBufConf.eBufType = E_MI_SYS_BUFDATA_FRAME;

    gettimeofday(&stTv, NULL);

    stBufConf.u64TargetPts = stTv.tv_sec * 1000000 + stTv.tv_usec;

    stBufConf.stFrameCfg.eFormat = E_MI_SYS_PIXEL_FRAME_YUV422_YUYV;

    stBufConf.stFrameCfg.eFrameScanMode =
    E_MI_SYS_FRAME_SCAN_MODE_PROGRESSIVE;

    stBufConf.stFrameCfg.u16Width = u16Width;

    stBufConf.stFrameCfg.u16Height = u16Height;

    if (MI_SUCCESS == MI_SYS_ChnInputPortGetBufPa(&stVpeChnInput, &stBufConf,
    &stBufInfo, &hHandle, 0))

    {

        pVirAddr = MI_SYS_Mmap(stBufInfo.stFrameData.phyAddr[0],
        stBufInfo.stFrameData.u32BufSize, &pVirAddr, TRUE);

        assert(pVirAddr);

        if (fread(pVirAddr, u16Width * u16Height * 2, 1, fp) <= 0)

        {

            fseek(fp, 0, SEEK_SET);

        }

        MI_SYS_Munmap(pVirAddr, stBufInfo.stFrameData.u32BufSize);

        MI_SYS_ChnInputPortPutBufPa(hHandle, &stBufInfo, FALSE);

    }

}

Related topics

MI_SYS_ChnInputPortPutBufPa

MI_SYS_ChnInputPortPutBuf

MI_SYS_ChnPortInjectBuf

2.4.10. MI_SYS_ChnInputPortPutBufPa¶

Function

Add the buf object corresponding to the channel input port to the pending queue, which needs to be used in pair with the function MI_SYS_ChnInputPortGetBufPa.

Syntax

MI_S32 MI_SYS_ChnInputPortPutBufPa (MI_SYS_BUF_HANDLE hHandle
，MI_SYS_BufInfo_t *pstPortBuf， MI_BOOL
bDropBuf);

Parameters

Parameter Name Description Input/Output

hHandle Current buf's Handle Input

pstPortBuf Buf pointer to be submitted Input

bDropBuf Drop direct waiver of modifications to buf Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

The difference with MI_SYS_ChnInputPortPutBuf: Only phyAddr can be used in pstBufInfo submitted by MI_SYS_ChnInputPortPutBufPa, while phyAddr and pVirAddr in pstBufInfo submitted by MI_SYS_ChnInputPortPutBuf can be used.
Sample

Please refer to MI_SYS_ChnInputPortGetBufPa Call Sample.
Related topics

MI_SYS_ChnInputPortGetBufPa

MI_SYS_ChnInputPortGetBuf

MI_SYS_ChnPortInjectBuf

2.4.11. MI_SYS_ChnOutputPortGetBufPa¶

Function

The buf object corresponding to the allocation channel ouput port, which only returns MIU physical address.

Syntax

MI_S32 MI_SYS_ChnOutputPortGetBufPa ( *pstChnPort,
MI_SYS_BufInfo_t *pstBufInfo ，
MI_SYS_BUF_HANDLE *phHandle);

Parameters

Parameter Name	Description	Input/Output
pstChnPort	A pointer to the input port of the module channel	Input
pstBufInfo	Return buf pointer	Output
phHandle	Get the Idr handle of outputPort Buf	Output

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

The difference with MI_SYS_ChnOutputPortGetBuf: Only phyAddr can be used in pstBufInfo obtained by MI_SYS_ChnOutputPortGetBufPa, while phyAddr and pVirAddr in pstBufInfo obtained by MI_SYS_ChnOutputPortGetBuf can be used.

Sample

MI_SYS_ChnOutputPortGetBufPa Sample

MI_SYS_ChnPort_t stChnPort;
MI_SYS_BufInfo_t stBufInfo;
MI_SYS_BUF_HANDLE stBufHandle;
MI_S32 s32Ret = MI_SUCCESS;
MI_S32 s32Fd = 0;
fd_set read_fds;
struct timeval TimeoutVal;
char szFileName[128];
int fd = 0;
MI_U32 u32GetFramesCount = 0;
MI_BOOL _bWriteFile = TRUE;
void *pVirAddr = NULL;

stChnPort.eModId = E_MI_MODULE_ID_DIVP;
stChnPort.u32DevId = 0;
stChnPort.u32ChnId = DIVP_CHN_FOR_VDF;
stChnPort.u32PortId = 0;

s32Ret = MI_SYS_GetFd(&stChnPort, &s32Fd);
if (MI_SUCCESS != s32Ret)
{
    ST_ERR("MI_SYS_GetFd 0, error, %X\n", s32Ret);
    return NULL;
}
s32Ret = MI_SYS_SetChnOutputPortDepth(&stChnPort, 2, 3);
if (MI_SUCCESS != s32Ret)
{
    ST_ERR("MI_SYS_SetChnOutputPortDepth err:%x, chn:%d,port:%d\n", s32Ret,
        stChnPort.u32ChnId, stChnPort.u32PortId);
    return NULL;
}

sprintf(szFileName, "divp%d.es", stChnPort.u32ChnId);
printf("start to record %s\n", szFileName);
fd = open(szFileName, O_RDWR | O_CREAT | O_TRUNC, S_IRUSR | S_IWUSR | S_IRGRP | S_IROTH);
if (fd < 0)
{
    ST_ERR("create %s fail\n", szFileName);
}

while (1)
{
    FD_ZERO(&read_fds);
    FD_SET(s32Fd, &read_fds);

    TimeoutVal.tv_sec = 1;
    TimeoutVal.tv_usec = 0;

    s32Ret = select(s32Fd + 1, &read_fds, NULL, NULL, &TimeoutVal);

    if (s32Ret < 0)
    {
        ST_ERR("select failed!\n");
        //  usleep(10 * 1000);
        continue;
    }
    else if (s32Ret == 0)
    {
        ST_ERR("get divp frame time out\n");
        //usleep(10 * 1000);
        continue;
    }
    else
    {
        if (FD_ISSET(s32Fd, &read_fds))
        {
            s32Ret = MI_SYS_ChnOutputPortGetBufPa(&stChnPort, &stBufInfo, &stBufHandle);

            if (MI_SUCCESS != s32Ret)
            {
                //ST_ERR("MI_SYS_ChnOutputPortGetBufPa err, %x\n", s32Ret);
                continue;
            }

            s32Ret = MI_SYS_Mmap(stBufInfo.stFrameData.phyAddr[0], stBufInfo.stFrameData.u32BufSize, &pVirAddr, TRUE);
            assert(pVirAddr);
            // save one Frame YUV data
            if (fd > 0)
            {
                if (_bWriteFile)
                {
                    write(fd, pVirAddr, stBufInfo.stFrameData.u16Height * stBufInfo.stFrameData.u32Stride[0] + stBufInfo.stFrameData.u16Height * stBufInfo.stFrameData.u32Stride[1] / 2);
                }
            }

            ++u32GetFramesCount;
            printf("channelId[%u] u32GetFramesCount[%u]\n", stChnPort.u32ChnId, u32GetFramesCount);

            MI_SYS_Munmap(pVirAddr, stBufInfo.stFrameData.u32BufSize);
            MI_SYS_ChnOutputPortPutBufPa(stBufHandle);
        }
    }
}

if (fd > 0)
{
    close(fd);
    fd = -1;
}

MI_SYS_SetChnOutputPortDepth(&stChnPort, 0, 3);
printf("exit record\n");
return NULL;

Related topics

MI_SYS_ChnOutputPortPutBufPa

MI_SYS_ChnOutputPortPutBuf

MI_SYS_ChnPortInjectBuf

2.4.12. MI_SYS_ChnOutputPortPutBufPa¶

Function

Release channel output port corresponding to the buf object, which needs to be used in pair with the function MI_SYS_ChnOutputPortGetBufPa.

Syntax

MI_S32 MI_SYS_ChnOutputPortPutBufPa (MI_SYS_BUF_HANDLE hBufHandle);

Parameters

Parameter Name Description Input/Output

hBufHandle handle for buf to be submitted Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

The difference with MI_SYS_ChnOutputPortPutBuf: Only phyAddr can be used in the pstBufInfo corresponding to the handle submitted by MI_SYS_ChnOutputPortPutBufPa, and both phyAddr and pVirAddr in the pstBufInfo corresponding to the handle submitted by MI_SYS_ChnOutputPortPutBuf can be used.
Sample

Please refer to MI_SYS_ChnOutputPortGetBufPa Sample.
Related topics

MI_SYS_ChnOutputPortGetBufPa

MI_SYS_ChnOutputPortGetBuf

MI_SYS_ChnPortInjectBuf

2.4.13. MI_SYS_SetChnOutputPortDepth¶

Function

Set the number of system bufs corresponding to the channel output port and the number of bufs that users can get.

Syntax

MI_S32
MI_SYS_SetChnOutputPortDepth(MI_SYS_ChnPort_t
*pstChnPort, MI_U32 u32UserFrameDepth, MI_U32 u32BufQueueDepth);

Parameters

Parameter Name	Description	Input/Output
pstChnPort	A pointer to the output port of the module channel	Input
u32UserFrameDepth	Set the maximum number of buf that the output user can get	Input
u32BufQueueDepth	Set the maximum number of buf for this output system	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- After using OutputPortBuf (MI_SYS_ChnOutputPortGetBuf / MI_SYS_ChnOutputPortPutBuf no longer need to be called), it is recommended to set u32UserFrameDepth to 0, which can reduce the buffers of output buf and save memory.
- u32UserFrameDepth must be less than or equal to u32BufQueueDepth.
- When u32UserFrameDepth is equal to u32BufQueueDepth and the number of user fifo queue buffers is equal to u32BufQueueDepth, the current output port will stop working.
- When the output port is not bound to the later stage, to make the current output port work, u32UserFrameDepth must be set greater than 0.
- If the output port is bound by realtime mode or ring mode, the u32UserFrameDepth of the current output port must be set to 0.
- For other restrictions, please refer to vif/isp/scl/venc/jpd API.
Sample

Reference MI_SYS_ChnOutputPortGetBuf Sample.

2.4.14. MI_SYS_ChnPortInjectBuf¶

Function

Plug the acquired output Port buf into the specified input Port Buf Queue.

Syntax

MI_S32 MI_SYS_ChnPortInjectBuf(MI_SYS_BUF_HANDLE hHandle ,MI_SYS_ChnPort_t *pstChnInputPort);

Parameters

Parameter Name Description Input/Output

pstChnPort A pointer to the input port of the module channel Input

hHandle Get the handle of outputPort Buf Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

After calling MI_SYS_ChnPortInjectBuf, the user can no longer display the release handle.
Sample

Reference MI_SYS_ChnOutputPortGetBuf Sample.
Related topics

MI_SYS_ChnInputPortGetBuf

MI_SYS_ChnInputPortPutBuf

MI_SYS_ChnOutputPortGetBuf

MI_SYS_ChnOutputPortPutBuf

2.4.15. MI_SYS_GetFd¶

Function

Get the file Description Number for the current output Port wait ing-up event.

Syntax

MI_S32 MI_SYS_GetFd(MI_SYS_ChnPort_t *pstChnPort, MI_S32 *ps32Fd);

Parameters

Parameter Name Description Input/Output

pstChnPort Port information structure pointer Input

ps32Fd File Description for waiting for event Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- Need to be used in pairs with MI_SYS_CloseFd.
- It is recommended to use the fd s select method to extract the data, so that the MI_SYS only wake up the thread when the corresponding port port port has data, the efficiency is more efficient than the use of while and sleep loop to take data.
Sample

Reference MI_SYS_ChnOutputPortGetBuf Sample.
Related topics

MI_SYS_CloseFd

2.4.16. MI_SYS_CloseFd¶

Function

File Description Number to close the current channel

Syntax

MI_S32 MI_SYS_CloseFd(MI_S32 s32ChnPortFd);

Parameters

Parameter Name Description Input/Output

s32ChnPortFd File Description Members for waiting for event Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_ChnOutputPortGetBuf Sample.
Related topics

MI_SYS_GetFd

2.4.17. MI_SYS_DupBuf¶

Function

Duplicate buf object.

Syntax

MI_S32 MI_SYS_DupBuf (MI_SYS_BUF_HANDLE srcBufHandle , MI_SYS_BUF_HANDLE *pDupTargetBufHandle);

Parameters

Parameter Name Description Input/Output

srcBufHandle Source buf object Input

pDupTargetBufHandle Return buf object pointer Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

Sample

MI_SYS_ChnOutputPortGetBuf Sample

int test0()
{
    MI_SYS_ChnPort_t stChnPort;
    MI_SYS_BufInfo_t stBufInfo;
    MI_SYS_BUF_HANDLE bufHandle ,DupTargetBufHandle;
    MI_S32 s32Ret;
    stChnPort.eModId = E_MI_MODULE_ID_VPE;
    stChnPort.u32DevId = 0;
    stChnPort.u32ChnId = 0;
    stChnPort.u32PortId = 0;
    s32Ret = MI_SYS_ChnOutputPortGetBuf (&stChnPort,&stBufInfo,&bufHandle);
    if(s32Ret != MI_SUCCESS)
        return 0;
    s32Ret =  MI_SYS_DupBuf(bufHandle, &DupTargetBufHandle);
    if(s32Ret != MI_SUCCESS)
    {
        MI_SYS_ChnOutputPortPutBuf(bufHandle);
        return 0;
    }
    stChnPort.eModId = E_MI_MODULE_ID_DIVP;
    stChnPort.u32DevId = 0;
    stChnPort.u32ChnId = 0;
    stChnPort.u32PortId = 0;
    MI_SYS_ChnPortInjectBuf(DupTargetBufHandle , &stChnPort);

    ***************************
        continue to use the stBufInfo
    ***************************

    MI_SYS_ChnOutputPortPutBuf(bufHandle);
    return 1;
}

int test1()
{
    MI_SYS_ChnPort_t stChnPort;
    MI_SYS_BufInfo_t stBufInfo;
    MI_SYS_BufConf_t stBufConf;
    MI_SYS_BUF_HANDLE bufHandle ,DupTargetBufHandle;
    MI_S32 s32Ret;
    stChnPort.eModId = E_MI_MODULE_ID_DIVP;
    stChnPort.u32DevId = 0;
    stChnPort.u32ChnId = 0;
    stChnPort.u32PortId = 0;
    memset(&stBufConf , 0 , sizeof(stBufConf));
    stBufConf.eBufType = E_MI_SYS_BUFDATA_FRAME;
    stBufConf.stFrameCfg.eFormat = E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422;
    stBufConf.stFrameCfg.u16Height = 1080;
    stBufConf.stFrameCfg.u16Width = 1920;
    stBufConf.stFrameCfg.eFrameScanMode = E_MI_SYS_FRAME_SCAN_MODE_PROGRESSIVE;
    s32Ret = MI_SYS_ChnInputPortGetBuf (&stChnPort,&stBufConf,&stBufInfo,&bufHandle ,0);
    if(s32Ret != MI_SUCCESS)
        return 0;
    ***************************
        Fill stBufInfo
    ***************************
    s32Ret =  MI_SYS_DupBuf(bufHandle, &DupTargetBufHandle);
    if(s32Ret != MI_SUCCESS)
    {
        MI_SYS_ChnInputPortPutBuf(bufHandle);
        return 0;
    }
    MI_SYS_ChnInputPortPutBuf(DupTargetBufHandle , &stChnPort , FALSE);
    ***************************
        continue to use the stBufInfo
    ***************************

    MI_SYS_ChnInputPortPutBuf(bufHandle, & stChnPort, FALSE);
    return 1;
}

Related topics

MI_SYS_ChnOutputPortGetBuf

MI_SYS_ChnOutputPortPutBuf

MI_SYS_ChnInputPortGetBuf

MI_SYS_ChnInputPortPutBuf

MI_SYS_ChnPortInjectBuf

2.5. Memory Management Class API¶

2.5.1. MI_SYS_SetChnMMAConf¶

Function

Set the MMA pool name of the module device channel Output default allocation memory.

Syntax

MI_S32 MI_SYS_SetChnMMAConf (MI_ModuleId_e eModId, MI_U32 u32DevId, MI_U32 u32ChnId, MI_U8 *pu8MMAHeapName);

Parameters

Parameter Name	Description	Input/Output
eModId	Module ID to be configured	Input
u32DevId	Device ID to be configured	Input
u32ChnId	Channel number to be configured	Input
pu8MMAHeapName	Set MMA heap name	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

If MI_SYS_SetChnMMAConf setting is not called or the pu8MMAHeapName value is set to NULL, the default mma_heap_name0 is used.

Sample

MI_ModuleId_e eVifModeId = E_MI_MODULE_ID_VIF;

MI_VIF_DEV vifDev = 0;

MI_VIF_CHN vifChn = 0;

MI_SYS_SetChnMMAConf(eVifModeId, vifDev, vifChn, "mma_heap_name0");

2.5.2. MI_SYS_GetChnMMAConf¶

Function

Get the MMA pool name of the module device channel Output port's default allocated memory.

Syntax

MI_S32 MI_SYS_GetChnMMAConf (MI_ModuleId_e eModId, MI_U32 u32DevId, MI_U32 u32ChnId, void * pu8MMAHeapName, MI_U32 u32Length);

Parameters

Parameter Name	Description	Input/Output
eModId	Module ID to be configured	Input
u32DevId	Device ID to be configured	Input
u32ChnId	Channel number to be configured	Input
pu8MMAHeapName	MMA heap name	Input
u32Length	Length of the memory pointed by pu8MMAHeapName, the max 64Byte	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Related topics

MI_SYS_SetChnMMAConf

2.5.3. MI_SYS_ConfDevPubPools¶

Function

Configure and initialize the module's public buffer pool.

Syntax

MI_S32 MI_SYS_ConfDevPubPools(MI_ModuleId_e  eModule, MI_U32 u32DevId, MI_VB_PoolListConf_t  stPoolListConf);

Parameters

Parameter Name Description Input/Output

eModule Target module ID Input

u32DevId Dev ID Input

stPoolListConf Module public buffer pool queue configuration Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

Version 2.0 and above is not on by default, recommended MI_SYS_ConfigPrivateMMAPool.

2.5.4. MI_SYS_ReleaseDevPubPools¶

Function

Free the global public buffer pool.

Syntax

MI_S32 MI_SYS_ReleaseDevPubPools(MI_ModuleId_e eModule, MI_U32 u32DevId);

Parameters

Parameter Name Description Input/Output

eModule Target module ID Input

u32DevId Dev ID Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Version 2.0 and above is not on by default, recommended MI_SYS_ConfigPrivateMMAPool.

2.5.5. MI_SYS_ConfGloPubPools¶

Function

Configure and initialize the system's global public buffer pool.

Syntax

MI_S32 MI_SYS_ConfGloPubPools(MI_VB_PoolListConf_t stPoolListConf);

Parameters

Parameter Name Description Input/Output

stPoolListConf Module public buffer pool queue configuration Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

Version 2.0 and above is not on by default, recommended MI_SYS_ConfigPrivateMMAPool.

2.5.6. MI_SYS_ReleaseGloPubPools¶

Function

Free the global public buffer pool.

Syntax

MI_S32 MI_VB_ ReleaseGloPubPools (void);

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Version 2.0 and above is not on by default, recommended MI_SYS_ConfigPrivateMMAPool.

2.5.7. MI_SYS_MMA_Alloc¶

Function

Request the allocation of memory directly to the MMA Memory Manager.

Syntax

MI_S32 MI_SYS_MMA_Alloc(MI_U8 *pstMMAHeapName, MI_U32 u32BlkSize, MI_PHY *phyAddr);

Parameters

Parameter Name	Description	Input/Output
pstMMAHeapName	Target MMA heapname	Input
u32BlkSize	The size of the block byteto sedated	Input
phyAddr	Physical address of memory block returned	Output

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

The physical address of the returned memory block is aligned with the actual allocated memory length in 4K.

Sample

MI_SYS_MMA_Alloc Sample

MI_PHY phySrcBufAddr = 0;

void *pVirSrcBufAddr = NULL;

MI_U32 srcBuffSize = 1920 * 1980 * 3 / 2;

srcBuffSize = ALIGN_UP(srcBuffSize, 4096);

ret = MI_SYS_MMA_Alloc(NULL, srcBuffSize, &phySrcBufAddr);

if(ret != MI_SUCCESS)

{

    printf("alloc src buff failed\n");

    return -1;

}

ret = MI_SYS_Mmap(phySrcBufAddr, srcBuffSize, &pVirSrcBufAddr, TRUE);

if(ret != MI_SUCCESS)

{

    MI_SYS_MMA_Free(phySrcBufAddr);

    printf("mmap src buff failed\n");

    return -1;

}

memset(pVirSrcBufAddr, 0, srcBuffSize);

MI_SYS_FlushInvCache(pVirSrcBufAddr,srcBuffSize);

MI_SYS_Munmap(pVirSrcBufAddr, srcBuffSize);

MI_SYS_MMA_Free(phySrcBufAddr);

Related topics

MI_SYS_MMA_Free

MI_SYS_Mmap

MI_SYS_FlushInvCache

MI_SYS_Munmap

2.5.8. MI_SYS_MMA_Free¶

Function

Memory allocated before being released directly to mmA Memory Manager.

Syntax

MI_S32 MI_SYS_MMA_Free(MI_U64 phyAddr);

Parameters

Parameter Name Description Input/Output

phyAddr Physical address of memory to be freed Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_MMA_Alloc Sample.
Related topics

MI_SYS_MMA_Alloc

MI_SYS_Mmap

MI_SYS_FlushInvCache

MI_SYS_Munmap

2.5.9. MI_SYS_Mmap¶

Function

Mapping any physical memory to the CPU virtual address space for the current user-state process.

Syntax

MI_S32 MI_SYS_Mmap(MI_U64 u64PhyAddr, MI_U32 u32Size , void
**ppVirtualAddress ， MI_BOOL bCache);

Parameters

Parameter Name	Description	Input/Output
u64PhyAddr	Physical address to be mapped	Input
u32Size	The length of the physical address to be mapped	Input
ppVirtualAddress	Pointer to store the CPU virtual address pointer	Output
bCache	Whether map into cache or un-cache	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The physical address is the SStar memory controller address.
- The physical address is recommended to be 4KByte aligned.
- The physical address length is recommended to be 4KByte aligned.
- Physical memory must fall completely outside the memory range managed by MMA or from the memory managed by linux kenrel
Sample

Reference MI_SYS_MMA_Alloc Sample.
Related topics

MI_SYS_MMA_Alloc

MI_SYS_MMA_Free

MI_SYS_FlushInvCache

MI_SYS_Munmap

2.5.10. MI_SYS_FlushInvCache¶

Function

Flush cache.

Syntax

MI_S32 MI_SYS_FlushCache(MI_VOID *pVirtualAddress, MI_U32 u32Size);

Parameters

Parameter Name Description Input/Output

pVirtualAddress Previously MI_SYS_Mmap returned CPU virtual address Input

u32Size The length of the cache to be flush Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The physical address to flush cache is recommended to be 4KByte aligned.
- The mapping length to flush cache is recommended to be 4KByte aligned.
- The map memory range to flush cache must be previously obtained through the MI_SYS_Mmap API.
- The mapping memory for flush cache should be MI_SYS_Mmap in the way of cache, nocache way without flush cache.
Sample

Reference MI_SYS_MMA_Alloc Sample.
Related topics

MI_SYS_MMA_Alloc

MI_SYS_MMA_Free

MI_SYS_Mmap

MI_SYS_Munmap

2.5.11. MI_SYS_Munmap¶

Function

Cancel the mapping of physical memory to the virtual address..

Syntax

MI_S32 MI_SYS_Munmap(MI_VOID *pVirtualAddress, MI_U32 u32Size);

Parameters

Parameter Name Description Input/Output

pVirtualAddress Previously MI_SYS_Mmap returned CPU virtual address Input

u32Size The length of the map to be unmapped Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The virtual address to be unmapped is recommended to be 4KByte aligned.
- The mapping length to be unmapped is recommended to be 4KByte aligned.
- The range of mapped memory to be canceled must be previously obtained through the MI_SYS_Mmap API.
Sample

Reference MI_SYS_MMA_Alloc Sample.
Related topics

MI_SYS_MMA_Alloc

MI_SYS_MMA_Free

MI_SYS_Mmap

MI_SYS_FlushInvCache

2.5.12. MI_SYS_MemsetPa¶

Function

Fill the entire physical memory with the DMA hardware module.

Syntax

MI_S32 MI_SYS_MemsetPa(MI_PHY phyPa, MI_U32 u32Val, MI_U32 u32Lenth);

Parameters

Parameter Name Description Input/Output

phyPa The physical address of the padding Input

u32Val Fill value Input

u32Lenth Fill size, in byte Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

Sample

MI_SYS_MemsetPa Sample

MI_PHY phySrcBufAddr = 0;

MI_PHY phyDstBufAddr = 0;

void *pVirSrcBufAddr = NULL;

void *pVirDstBufAddr = NULL;

MI_U32 buffSize = 1920 * 1980 * 3 / 2;

buffSize = ALIGN_UP(buffSize, 4096);

ret = MI_SYS_MMA_Alloc(NULL, buffSize, &phySrcBufAddr);

if(ret != MI_SUCCESS)

{

    printf("alloc src buff failed\n");

    return -1;

}

ret = MI_SYS_MMA_Alloc(NULL, buffSize, &phyDstBufAddr);

if(ret != MI_SUCCESS)

{

    MI_SYS_MMA_Free(phySrcBufAddr);

    printf("alloc dts buff failed\n");

    return -1;

}

MI_SYS_MemsetPa(phySrcBufAddr, 0xff, buffSize);

MI_SYS_MemsetPa(phyDstBufAddr, 0x00, buffSize);

MI_SYS_MemcpyPa(phyDstBufAddr, phySrcBufAddr, buffSize);

MI_SYS_MMA_Free(phySrcBufAddr);

MI_SYS_MMA_Free(phyDstBufAddr);

Related topics

MI_SYS_MemcpyPa

2.5.13. MI_SYS_MemcpyPa¶

Function

Copy the source memory data to the target memory via the DMA hardware module.

Syntax

MI_S32 MI_SYS_MemcpyPa(MI_PHY phyDst, MI_PHY phySrc, MI_U32 u32Lenth);

Parameters

Parameter Name Description Input/Output

phyDst Destination physical address Input

phySrc Source physical address Input

u32Lenth Copy size, in byte Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Sample

Reference MI_SYS_MemsetPa Sample.
Related topics

MI_SYS_MemsetPa

2.5.14. MI_SYS_BufFillPa¶

Function

Fill some of the physical memory with the DMA hardware module.

Syntax

MI_S32 MI_SYS_BufFillPa(MI_SYS_FrameData_t *pstBuf, MI_U32 u32Val, MI_SYS_WindowRect_t *pstRect);

Parameters

Parameter Name Description Input/Output

pstBuf The structure of the filled frame data Description Input

u32Val Fill value Input

pstRect The extent of the data populated Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The pstRect data range is based on the first address of the pstBuf Description as the first address (0,0), and the width and height are partially filled with the ePixel Format in pstBuf to calculate the size of the memory data moved by each pixel.
- PstBuf in u16Width, u16 Height, phyAddr, u32Stride, ePixelFormat is required, the rest of the value is meaningless.

Sample

MI_S32 ret = 0;

MI_SYS_WindowRect_t rect;

MI_SYS_FrameData_t stSysFrame;

memcpy(&stSysFrame, &buf->stFrameData, sizeof(MI_SYS_FrameData_t));

if(pRect) {

    rect.u16X = pRect->left;

    rect.u16Y = pRect->top;

    rect.u16Height = pRect->bottom-pRect->top;

    rect.u16Width = pRect->right-pRect->left;

} else {

    rect.u16X = 0;

    rect.u16Y = 0;

    rect.u16Height = stSysFrame.u16Height;

    rect.u16Width = stSysFrame.u16Width;

}

DBG_INFO("rect %d %d %d %d \n", rect.u16X, rect.u16Y

         , rect.u16Width, rect.u16Height);

ret = MI_SYS_BufBlitPa(&stSysFrame, u32ColorVal, &rect);

return ret;

Related topics

MI_SYS_BufBlitPa

2.5.15. MI_SYS_BufBlitPa¶

Function

Copy parts of the source memory data to parts of the target memory through the DMA hardware module.

Syntax

MI_S32 MI_SYS_BufBlitPa(MI_SYS_FrameData_t *pstDstBuf,
MI_SYS_WindowRect_t *pstDstRect, MI_SYS_FrameData_t *pstSrcBuf,
MI_SYS_WindowRect_t *pstSrcRect);

Parameters

Parameter Name	Description	Input/Output
pstDstBuf	Target memory physical first address	Input
pstDstRect	The area of the target memory copy	Input
pstSrcBuf	Source memory physical first address	Input
pstSrcRect	Area of the source memory copy	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The pstDStRect/pstSrcRect data range is based on the first address of pstDstBuf/pstSrcBuf Buf Description as the first address (0,0), and the width and height are partially populated with ePixelFormat to calculate the size of memory data moved by each pixel.
- PstDdbuf/pstSrcBuf in u16Width, u16 Height, phyAddr, u32Stride, e32Cre, ePixelFormat is required, the rest of the value is meaningless.
- The area portion of the source memory or target memory exceeds its original range and will only copy the data on which it is not exceeded.

Sample

MI_S32 ret = MI_SUCCESS;

vdisp_copyinfo_plane_t *plane;

MI_SYS_FrameData_t stSrcFrame, stDstFrame;

MI_SYS_WindowRect_t stSrcRect, stDstRect;

plane = &copyinfo->plane[0];

stSrcFrame.ePixelFormat = E_MI_SYS_PIXEL_FRAME_I8;

stSrcFrame.phyAddr[0] = plane->src_paddr;

stSrcFrame.u16Width =  plane->width;

stSrcFrame.u16Height = plane->height;

stSrcFrame.u32Stride[0] = plane->src_stride;

stDstFrame.ePixelFormat = E_MI_SYS_PIXEL_FRAME_I8;

stDstFrame.phyAddr[0] = plane->dst_paddr;

stDstFrame.u16Width =  plane->width;

stDstFrame.u16Height = plane->height;

stDstFrame.u32Stride[0] = plane->dst_stride;

stSrcRect.u16X = 0;

stSrcRect.u16Y = 0;

stSrcRect.u16Height = stSrcFrame.u16Height;

stSrcRect.u16Width = stSrcFrame.u16Width;

stDstRect.u16X = 0;

stDstRect.u16Y = 0;

stDstRect.u16Height = stDstFrame.u16Height;

stDstRect.u16Width = stDstFrame.u16Width;

ret = MI_SYS_BufBlitPa(&stDstFrame, &stDstRect, &stSrcFrame, &stSrcRect);

return ret;

Related topics

MI_SYS_BufFillPa

2.5.16. MI_SYS_ConfigPrivateMMAPool¶

Function

Configure private MMA Heap.

Syntax

MI_S32 MI_SYS_ConfigPrivateMMAPool(MI_SYS_GlobalPrivPoolConfig_t
*pstGlobalPrivPoolConf);

Parameters

Parameter Name Description Input/Output

pstGlobalPrivPoolConf Configure private MMA Heap for modules Input
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so

Note

Device private MMA Heap and channel private MMA Heap cannot coexist.
It is recommended to create a private MMA heap for each module after MI_SYS_Init.
When pstGlobalPrivPoolConf-bCreate is TRUE, create a private POOL, destroy the private POOL when it is FALSE

Various eConfigType use scenarios are as follows:

eConfigType	Applicable Scenario
E_MI_SYS_VPE_TO_VENC_PRIVATE_RING_POOL	Set up a private ring heap pool for vpe and venc ports bound to E_MI_SYS_BIND_TYPE_HW_RIN mode
E_MI_SYS_PRE_CHN_PRIVATE_POOL	Set up a private heap pool for the module channel
E_MI_SYS_PRE_DEV_PRIVATE_POOL	Set up a private heap pool for module devices
E_MI_SYS_PER_CHN_PORT_OUTPUT_POOL	Set heap pool for module output port, after which the ouput buf priority of the port port is assigned

Sample

Suppose the scene is: Two streams under IPC, one main Stream H265 maximum resolution 1920 x 1080, and all the way Sub Stream H264 max resolution is 720*576.

VENC Creat MMA Heap:

//Main Sream:

//Create private MMA heap with size of 38745760 for Channel 1

MI_SYS_GlobalPrivPoolConfig_t stConfig;

memset(&stConfig , 0 ,sizeof(stConfig));

stConfig.eConfigType = E_MI_SYS_PER_CHN_PRIVATE_POOL;

stConfig.bCreate = TRUE;

stConfig.uConfig.stPreChnPrivPoolConfig.eModule = E_MI_MODULE_ID_VENC;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Devid =  0;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Channel= 1;

stConfig.uConfig.stPreChnPrivPoolConfig.u32PrivateHeapSize = 38745760;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

//Sub Stream:

// Create private MMA heap with size of 805152 for Channel 2

stConfig.eConfigType = E_MI_SYS_PER_CHN_PRIVATE_POOL;

stConfig.bCreate = TRUE;

stConfig.uConfig.stPreChnPrivPoolConfig.eModule = E_MI_MODULE_ID_VENC;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Devid =  0;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Channel= 2;

stConfig.uConfig.stPreChnPrivPoolConfig.u32PrivateHeapSize = 805152;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

VENC Destroyed MMA Heap:

//Main Sream:

//Destroyed private MMA heap of Channel 1

stConfig.eConfigType = E_MI_SYS_PER_CHN_PRIVATE_POOL;

stConfig.bCreate = FALSE;

stConfig.uConfig.stPreChnPrivPoolConfig.eModule = E_MI_MODULE_ID_VENC;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Devid =  0;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Channel= 1;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

//Sub Stream:

//Destroyed private MMA heap of Channel 2

stConfig.eConfigType = E_MI_SYS_PER_CHN_PRIVATE_POOL;

stConfig.bCreate = FALSE;

stConfig.uConfig.stPreChnPrivPoolConfig.eModule = E_MI_MODULE_ID_VENC;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Devid =  0;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Channel= 2;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

VPE Creat MMA Heap:

//Creat private MMA Heap with size of 0x4f9200 for Device 0

stConfig.eConfigType = E_MI_SYS_PER_DEV_PRIVATE_POOL;

stConfig.bCreate = TRUE;

stConfig.uConfig.stPreDevPrivPoolConfig.eModule = E_MI_MODULE_ID_VPE;

stConfig.uConfig.stPreDevPrivPoolConfig.u32Devid =  0;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

VPE Destroyed MMA Heap:

//Destroyed private MMA Heap of Device 0

stConfig.eConfigType = E_MI_SYS_PER_DEV_PRIVATE_POOL;

stConfig.bCreate = FALSE;

stConfig.uConfig.stPreDevPrivPoolConfig.eModule = E_MI_MODULE_ID_VPE;

stConfig.uConfig.stPreChnPrivPoolConfig.u32Devid =  0;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

Creat VPE -> VENC ring MMA Heap:

stConfig.eConfigType = E_MI_SYS_VPE_TO_VENC_PRIVATE_RING_POOL;

stConfig.bCreate = TRUE;

stConfig.uConfig. stPreVpe2VencRingPrivPoolConfig.u32VencInputRingPoolStaticSize =  8*1024*1024;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

Destroyed VPE -> VENC ring MMA Heap:

stConfig.eConfigType = E_MI_SYS_VPE_TO_VENC_PRIVATE_RING_POOL;

stConfig.bCreate = FALSE;

MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

Different resolutions or turns on different Functionsize sizes are
different, detailed parameters should be calculated according to the scene
and specifications used.

Related topics

MI_SYS_PrivateDevChnHeapAlloc

MI_SYS_PrivateDevChnHeapFree

2.5.17. MI_SYS_PrivateDevChnHeapAlloc¶

Function

Request memory from module channel or device private MMA Pool.

Syntax

MI_S32 MI_SYS_PrivateDevChnHeapAlloc(MI_ModuleId_e eModule, MI_U32
u32Devid, MI_S32 s32ChnId, MI_U8 *pu8BufName, MI_U32 u32blkSize,
MI_PHY *pphyAddr, MI_BOOL bTailAlloc);

Parameters

Parameter Name	Description	Input/Output
eModule	Module ID	Input
u32Devid	The device ID of the module	Input
s32ChnId	Channel ID of the module	Input
pu8BufName	When applying for the name of private memory, pass null, use the "app-privAlloc" as the default name	Input
u32blkSize	Request the size of private memory	Input
pphyAddr	Physical address of allocated private memory	Output
bTailAlloc	Whether to apply from the tail of the channel private pool	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- When s32ChnId is equal to -1, apply for memory from the private MMA Pool of the module device;
- When s32ChnId is greater than -1, apply for memory from the private MMA Pool of the module channel;
- When using this interface, if the corresponding private pool is not configured or the application fails due to insufficient memory in the private pool, memory will be requested from mma_heap_name0 by default.

Sample

MI_SYS_PrivateDevChnHeapAlloc Sample

MI_PHY *pphyAddr = NULL;
MI_SYS_GlobalPrivPoolConfig_t stConfig;
Memset(&stConfig , 0 ,sizeof(stConfig));
stConfig.eConfigType = E_MI_SYS_PER_CHN_PRIVATE_POOL;
stConfig.bCreate = TRUE;
stConfig.uConfig.stPreChnPrivPoolConfig. eModule = E_MI_MODULE_ID_VENC;
stConfig.uConfig.stPreChnPrivPoolConfig. u32Devid =  0;
stConfig.uConfig.stPreChnPrivPoolConfig. u32Channel= 1;
stConfig.uConfig.stPreChnPrivPoolConfig. u32PrivateHeapSize = 38745760;
MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

ret = MI_SYS_PrivateDevChnHeapAlloc(E_MI_MODULE_ID_VENC, 0, 1, NULL, 4096, pphyAddr, FALSE);
if(ret != MI_SUCCESS)
{
    stConfig.bCreate = FALSE;
    MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);
    printf("alloc buff from chn private heap failed\n");
    return -1;
}

//do something...

MI_SYS_PrivateDevChnHeapFree(E_MI_MODULE_ID_VENC, 0, 1, *pphyAddr);
stConfig.bCreate = FALSE;
MI_SYS_ConfigDevChnPrivateMMAHeap(&stConfig);

Related topics

MI_SYS_ConfigPrivateMMAPool

MI_SYS_PrivateDevChnHeapFree

2.5.18. MI_SYS_PrivateDevChnHeapFree¶

Function

Free memory from module channel or device private MMA Pool.

Syntax

MI_S32 MI_SYS_PrivateDevChnHeapFree(MI_ModuleId_e eModule, MI_U32
u32Devid, MI_S32 s32ChnId, MI_PHY phyAddr);

Parameters

Parameter Name	Description	Input/Output
eModule	Module ID	Input
u32Devid	The device ID of the module	Input
s32ChnId	Channel ID of the module	Input
phyAddr	Physical address for memory that needs to be freed	Input

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- When s32ChnId is equal to -1, release the memory from the private MMA Pool of the module device;
- When s32ChnId is greater than -1, release the memory from the private MMA Pool of the module channel;
- When using this interface, make sure that you have applied a private memory pool of E_MI_SYS_PRE_CHN_PRIVATE_POOL type using the MI_SYS_ConfigPrivateMMAPool first.
Sample

Reference MI_SYS_PrivateDevChnHeapAlloc Sample.
Related topics

MI_SYS_ConfigPrivateMMAPool

MI_SYS_PrivateDevChnHeapAlloc

2.5.19. MI_SYS_Va2Pa¶

Function

Turn CPU virtual address pointer to Physical address.

Syntax

MI_S32 MI_SYS_Va2Pa (void *pVirtualAddress, MI_PHY *pPhyAddr);

Parameters

Parameter Name Description Input/Output

pVirtualAddress CPU virtual address pointer Input

pPhyAddr Pointer to store the physical address of the memory block Output
Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note

When using the interface, make sure that the input CPU virtual address is valid and points to the address space allocated in MI.

Sample

MI_SYS_Va2Pa Sample

MI_PHY phySrcBufAddr = 0;

MI_PHY phyAddrVa2Pa = 0;

void *pVirSrcBufAddr = NULL;

MI_U32 srcBuffSize = 1920 * 1980 * 3 / 2;

srcBuffSize = ALIGN_UP(srcBuffSize, 4096);

ret = MI_SYS_MMA_Alloc(NULL, srcBuffSize, &phySrcBufAddr);

if(ret != MI_SUCCESS)

{

    printf("alloc src buff failed\n");

    return -1;

}

ret = MI_SYS_Mmap(phySrcBufAddr, srcBuffSize, &pVirSrcBufAddr, TRUE);

if(ret != MI_SUCCESS)

{

    MI_SYS_MMA_Free(phySrcBufAddr);

    printf("mmap src buff failed\n");

    return -1;

}

MI_SYS_Va2Pa(pVirSrcBufAddr, &phyAddrVa2Pa);

assert(phySrcBufAddr == phyAddrVa2Pa);

memset(pVirSrcBufAddr, 0, srcBuffSize);

MI_SYS_FlushInvCache(pVirSrcBufAddr,srcBuffSize);

MI_SYS_Munmap(pVirSrcBufAddr, srcBuffSize);

MI_SYS_MMA_Free(phySrcBufAddr);

Related topics

MI_SYS_Mmap

2.5.20. MI_SYS_GetMmaPoolInfo¶

Function

Get the total free size of the specified mma pool and the maximum physical continuous memory length.

Syntax

MI_S32 MI_SYS_GetMmaPoolInfo (MI_SYS_MmaPoolInfo_t *pstMmaPoolInfo);

Parameters

Parameter Name	Description	Input/Output
bPrivatePool	pstMmaPoolInfo member, whether to obtain private pool memory information TRUE: Configure uConfig. stChnPort FALSE: Configure u8MMAHeapName	Input
uConfig	pstMmaPoolInfo members uConfig.stChnPort: Configure the private pool information to be queried uConfig.u8MMAHeapName: mma heap name to be queried	Input
u32TotalFreeSize	pstMmaPoolInfo member, the total free size of the memory pool	Output
u32MaxContiFreeSize	pstMmaPoolInfo member, the maximum physically continuous memory length of the memory pool	Output

Return
- 0 Successful.
- !0 Failed, please refer to the error code.
Dependency
- Head file: mi_sys_datatype.h, mi_sys.h
- Library files: libmi_sys.a / libmi_sys.so
Note
- The memory status changes dynamically, and the instantaneous value obtained by the interface is only the memory status at this moment.
- When bPrivatePool = TRUE, configure stChnPort:

  stChnPort.u32ChnId == -1, get the private pool information of the module device, corresponding to E_MI_SYS_PRE_DEV_PRIVATE_POOL;

  stChnPort.u32ChnId !=-1 && stChnPort.u32PortId == -1, get the private pool information of the device channel, corresponding to E_MI_SYS_PRE_CHN_PRIVATE_POOL;

  stChnPort.u32ChnId !=-1 && stChnPort. u32PortId != -1, get the private pool information of the module channel output port, corresponding to E_MI_SYS_PRE_CHN_PORT_OUTPUT_POOL.

Sample

MI_SYS_GetMmaPoolInfo call sample

// Get the private pool memory information of the module device
MI_SYS_MmaPoolInfo stMmaPoolInfo;
memset(&stMmaPoolInfo, 0, sizeof(stMmaPoolInfo));

stMmaPoolInfo.bPrivatePool = TRUE;
stMmaPoolInfo.uConfig.stChnPort.eModId = E_MI_MODULE_ID_VENC;
stMmaPoolInfo.uConfig.stChnPort.u32DevId=0;
stMmaPoolInfo.uConfig.stChnPort.u32ChnId=-1;
stMmaPoolInfo.uConfig.stChnPort.u32PortId=-1;
MI_SYS_GetMmaPoolInfo(&stMmaPoolInfo);
// Get the private pool memory information of the module device channel
MI_SYS_MmaPoolInfo stMmaPoolInfo;
memset(&stMmaPoolInfo, 0, sizeof(stMmaPoolInfo));

stMmaPoolInfo.bPrivatePool = TRUE;
stMmaPoolInfo.uConfig.stChnPort.eModId = E_MI_MODULE_ID_VENC;
stMmaPoolInfo.uConfig.stChnPort.u32DevId=0;
stMmaPoolInfo.uConfig.stChnPort.u32ChndId=0;
stMmaPoolInfo.uConfig.stChnPort.u32PortId=-1;
MI_SYS_GetMmaPoolInfo(&stMmaPoolInfo);

// Get the private pool memory information of the device channel output port
MI_SYS_MmaPoolInfo stMmaPoolInfo;
memset(&stMmaPoolInfo, 0, sizeof(stMmaPoolInfo));

stMmaPoolInfo.bPrivatePool = TRUE;
stMmaPoolInfo.uConfig.stChnPort.eModId = E_MI_MODULE_ID_VENC;
stMmaPoolInfo.uConfig.stChnPort.u32DevId=0;
stMmaPoolInfo.uConfig.stChnPort.u32ChndId=1;
stMmaPoolInfo.uConfig.stChnPort.u32PortId=0;
MI_SYS_GetMmaPoolInfo(&stMmaPoolInfo);

// Get mma heap memory pool information
MI_SYS_MmaPoolInfo stMmaPoolInfo;
memset(&stMmaPoolInfo, 0, sizeof(stMmaPoolInfo));

stMmaPoolInfo.bPrivatePool = FALSE;
memcpy(stMmaPoolInfo.uConfig. u8MMAHeapName , “mma_heap_name0” ,sizeof(“mma_heap_name”));
MI_SYS_GetMmaPoolInfo(&stMmaPoolInfo);

Related topics

MI_SYS_ConfigPrivateMMAPool

3. Data type¶

3.1. Description of data structure Description Format¶

This manual uses information about the five reference domain Description data types, which act as information about the reference domain Description data types, as shown in Table 3-1.

Table 3‑1 : Data Structure Description Format Description

Label	Function
Description	Brief Description data type of the main Function.
Define	Define statement slisting data types
Members	List the data structure of the Members and meaning.
Note	List things that should be in Note when using data types.
Related data types and interfaces	List the other data types and interfaces associated with this data type.

3.2. List of data structures¶

Relevant data types and data structures are defined as follows:

Table 3‑2 : Summary of Data Structures

Data Structures	definition
MI_ModuleId_e	Define module ID enumeration type
MI_SYS_PixelFormat_e	Define pixel enumeration type
MI_SYS_CompressMode_e	Define compression enumeration type
MI_SYS_FrameTileMode_e	Define Tile format enumeration type
MI_SYS_FieldType_e	Define Field Enumeration Type
MI_SYS_BufDataType_e	Define module ID enumeration type
MI_SYS_FrameIspInfoType_e	Types of ISP info enumerations carried by Define frame data
MI_SYS_ChnPort_t	Define module device channel structure
MI_SYS_MetaData_t	Structure of Define Stream MetaData
MI_SYS_RawData_t	Structure of Define Stream RawData
MI_SYS_WindowRect_t	Structure of Define Window coordinates
MI_SYS_FrameData_t	Structure of Define Stream FrameData
MI_SYS_BufInfo_t	Buf Information Structure
MI_SYS_FrameBufExtraConfig_t	Define Structure sits additionally configured by Stream Frame buffer
MI_SYS_BufFrameConfig_t	Frame buf configuration information structure
MI_SYS_BufRawConfig_t	Raw buf configuration information structure
MI_SYS_MetaDataConfig_t	Meta buf configuration information structure
MI_SYS_BufConf_t	Configure the Buf information structure
MI_SYS_Version_t	Sys version information structure
MI_VB_PoolListConf_t	Structure of DescribeVB Pool list information
MI_SYS_BindType_e	Enumeration type of Pre- and Post-Level Working Mode of Define
MI_SYS_FrameData_PhySignalType	Enumeration type of buffer type to which Describeframe data belongs
MI_SYS_InsidePrivatePoolType_e	Enumeration type of private MMA POOL type in Description Creat
MI_SYS_PerChnPrivHeapConf_t	Define Description Channel private MMA Pool structure
MI_SYS_PerDevPrivHeapConf_t	Define Description Structure of the device's private MMA Pool
MI_SYS_PerVpe2VencRingPoolConf_t	Define Description Structure of private Ring MMA Pool between VPE and VENC
MI_SYS_PerChnPortOutputPool_t	Define Describeouput port Structure of private MMA Pool
MI_SYS_GlobalPrivPoolConfig_t	Define Description Configure the structure of the private MMA Pool
MI_SYS_FrameIspInfo_t	Structure of ISP info in Define frame data
MI_SYS_InitParam_t	Define the initialized parameter of SYS device
MI_SYS_BufFrameMultiPlaneConfig_t	MultiPlane Frame buf configuration information structure
MI_SYS_FrameDataSubPlane_t	Structure of Define Stream SubPlane FrameData
MI_SYS_FrameDataMultiPlane_t	Structure of Define Stream MultiPlane FrameData
MI_SYS_GlobalFlagType_e	Define global Flag type
MI_SYS_GlobalFlagParam_t	Set global Flag parameter
MI_SYS_MmaPoolInfo_t	Define the structure describing the memory pool

3.2.1. MI_ModuleId_e¶

Description

Define Module ID enumeration type.

Define

typedef enum

{

    E_MI_MODULE_ID_IVE    = 0,

    E_MI_MODULE_ID_VDF      = 1,

    E_MI_MODULE_ID_VENC     = 2,

    E_MI_MODULE_ID_RGN     = 3,

    E_MI_MODULE_ID_AI    = 4,

    E_MI_MODULE_ID_AO    = 5,

    E_MI_MODULE_ID_VIF   = 6,

    E_MI_MODULE_ID_VPE    = 7,

    E_MI_MODULE_ID_VDEC    = 8,

    E_MI_MODULE_ID_SYS     = 9,

    E_MI_MODULE_ID_FB   = 10,

    E_MI_MODULE_ID_HDMI  = 11,

    E_MI_MODULE_ID_DIVP  = 12,

    E_MI_MODULE_ID_GFX   = 13,

    E_MI_MODULE_ID_VDISP   = 14,

    E_MI_MODULE_ID_DISP     = 15,

    E_MI_MODULE_ID_OS     = 16,

    E_MI_MODULE_ID_IAE = 17,

    E_MI_MODULE_ID_MD = 18,

    E_MI_MODULE_ID_OD = 19,

    E_MI_MODULE_ID_SHADOW = 20,

    E_MI_MODULE_ID_WARP = 21,

    E_MI_MODULE_ID_UAC = 22,

    E_MI_MODULE_ID_LDC = 23,

    E_MI_MODULE_ID_SD = 24,

    E_MI_MODULE_ID_PANEL = 25,

    E_MI_MODULE_ID_CIPHER = 26,

    E_MI_MODULE_ID_SNR = 27,

    E_MI_MODULE_ID_WLAN =28,

    E_MI_MODULE_ID_IPU = 29,

    E_MI_MODULE_ID_MIPITX = 30,

    E_MI_MODULE_ID_GYRO = 31,

    E_MI_MODULE_ID_JPD = 32,

    E_MI_MODULE_ID_PSPI = 33,

    E_MI_MODULE_ID_MAX,

} MI_ModuleId_e;

Members

Module ID	Module ID HEX Value	Members Name	Module
0	0x00	E_MI_MODULE_ID_IVE	Module ID for Image Intelligent Operator IVE
1	0x01	E_MI_MODULE_ID_VDF	Module ID of Video Intelligent Algorithm Framework Module VDF
2	0x02	E_MI_MODULE_ID_VENC	Module ID for video coding module VPE
3	0x03	E_MI_MODULE_ID_RGN	MODULE ID FOR OSD OVERLAY AND MASKING MODULE REG
4	0x04	E_MI_MODULE_ID_AI	Module ID for Audio Input Module AI
5	0x05	E_MI_MODULE_ID_AO	Module ID for audio Output Module AO
6	0x06	E_MI_MODULE_ID_VIF	Video InputVIF's Module ID
7	0x07	E_MI_MODULE_ID_VPE	Module ID of the video image processing module VPE
8	0x08	E_MI_MODULE_ID_VDEC	Module ID for video processing VPE
9	0x09	E_MI_MODULE_ID_SYS	Module ID of System Module SYS
10	0x0A	E_MI_MODULE_ID_FB	SStar UI shows the module ID of the FrameBuffer Device module
11	0x0B	E_MI_MODULE_ID_HDMI	HMDI Module ID
12	0x0C	E_MI_MODULE_ID_DIVP	Module ID for video DI and post-processing module DIVP
13	0x0D	E_MI_MODULE_ID_GFX	Module ID of 2D Graphics Processing Acceleration Module GFX
14	0x0E	E_MI_MODULE_ID_VDISP	Image Puzzle Module VDISP Module ID
15	0x0F	E_MI_MODULE_ID_DISP	Video display module ID of module DISP
16	0x10	E_MI_MODULE_ID_OS	RTOS System Module ID
17	0x11	E_MI_MODULE_ID_IAE	Module ID for Audio Smart Operator IAE
18	0x12	E_MI_MODULE_ID_MD	Module ID of the motion detection module MD
19	0x13	E_MI_MODULE_ID_OD	Block ingesting module ID for the OD of the detection module
20	0x14	E_MI_MODULE_ID_SHADOW	Module ID for virtual MI framework SHADOW
21	0x15	E_MI_MODULE_ID_WARP	Module ID of the image malformation correction algorithm WARP
22	0x16	E_MI_MODULE_ID_UAC	Module ID for USB Aduio Class-specific ALSA devices
23	0x17	E_MI_MODULE_ID_LDC	Module ID of image malformation correction algorithm LDC
24	0x18	E_MI_MODULE_ID_SD	Module ID for image zoom function
25	0x19	E_MI_MODULE_ID_PANEL	The display of panel's module ID
26	0x1A	E_MI_MODULE_ID_CIPHER	Chip encrypts CIPHER's module ID
27	0x1B	E_MI_MODULE_ID_SNR	Sensor sensor module ID
28	0x1C	E_MI_MODULE_ID_WLAN	Module ID for wireless communication network Wi-Fi
29	0x1D	E_MI_MODULE_ID_IPU	Module ID for image recognition processing IPU
30	0x1E	E_MI_MODULE_ID_MIPITX	Send data module IDs using THE MIPI protocol
31	0x1F	E_MI_MODULE_ID_GYRO	Module ID of the gyroscope
32	0x20	E_MI_MODULE_ID_JPD	JPD processed module ID
33	0x21	E_MI_MODULE_ID_PSPI	The ID of the module that uses the spi protocol to send/receive data

3.2.2. MI_SYS_PixelFormat_e¶

Description

Define Pixel enumeration type.

Define

typedef enum

{

    E_MI_SYS_PIXEL_FRAME_YUV422_YUYV = 0,

    E_MI_SYS_PIXEL_FRAME_ARGB8888,

    E_MI_SYS_PIXEL_FRAME_ABGR8888,

    E_MI_SYS_PIXEL_FRAME_BGRA8888,

    E_MI_SYS_PIXEL_FRAME_RGB565,

    E_MI_SYS_PIXEL_FRAME_ARGB1555,

    E_MI_SYS_PIXEL_FRAME_ARGB4444,

    E_MI_SYS_PIXEL_FRAME_I2,

    E_MI_SYS_PIXEL_FRAME_I4,

    E_MI_SYS_PIXEL_FRAME_I8,

    E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422,

    E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420,

    E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21,

    E_MI_SYS_PIXEL_FRAME_YUV_TILE_420,

    E_MI_SYS_PIXEL_FRAME_YUV422_UYVY,

    E_MI_SYS_PIXEL_FRAME_YUV422_YVYU,

    E_MI_SYS_PIXEL_FRAME_YUV422_VYUY,

    E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR,

    E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR,

    E_MI_SYS_PIXEL_FRAME_FBC_420,

    E_MI_SYS_PIXEL_FRAME_RGB_BAYER_BASE,

    E_MI_SYS_PIXEL_FRAME_RGB_BAYER_NUM = E_MI_SYS_PIXEL_FRAME_RGB_BAYER_BASE + E_MI_SYS_DATA_PRECISION_MAX*E_MI_SYS_PIXEL_BAYERID_MAX-1,

    E_MI_SYS_PIXEL_FRAME_RGB888,

    E_MI_SYS_PIXEL_FRAME_BGR888,E_MI_SYS_PIXEL_FRAME_GRAY8,

    E_MI_SYS_PIXEL_FRAME_FORMAT_MAX,

} MI_SYS_PixelFormat_e;

Members

Members Name	Description
E_MI_SYS_PIXEL_FRAME_YUV422_YUYV	YUV422_YUYV format
E_MI_SYS_PIXEL_FRAME_ARGB8888	ARGB8888 format
E_MI_SYS_PIXEL_FRAME_ABGR8888	ABGR8888 format
E_MI_SYS_PIXEL_FRAME_BGRA8888	BGRA8888 format
E_MI_SYS_PIXEL_FRAME_RGB565	RGB565 format
E_MI_SYS_PIXEL_FRAME_ARGB1555	ARGB1555 format
E_MI_SYS_PIXEL_FRAME_ARGB4444	ARGB4444 format
E_MI_SYS_PIXEL_FRAME_I2	2 bpp format
E_MI_SYS_PIXEL_FRAME_I4	4 bpp format
E_MI_SYS_PIXEL_FRAME_I8	8 bpp format
E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_422	YUV422 semi-planar format
E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420	YUV420sp nv12 format
E_MI_SYS_PIXEL_FRAME_YUV_SEMIPLANAR_420_NV21	YUV420sp nv21 format
E_MI_SYS_PIXEL_FRAME_TILE_420	Internal custom TILE format
E_MI_SYS_PIXEL_FRAME_YUV422_UYVY	YUV422_UYVY format
E_MI_SYS_PIXEL_FRAME_YUV422_YVYU	YUV422_YVYU format
E_MI_SYS_PIXEL_FRAME_YUV422_VYUY	YUV422_VYUY format
E_MI_SYS_PIXEL_FRAME_YUV422_PLANAR	YUV422_PLANAR格式
E_MI_SYS_PIXEL_FRAME_YUV420_PLANAR	YUV420_PLANAR格式
E_MI_SYS_PIXEL_FRAME_FBC_420	Internal customa format
E_MI_SYS_PIXEL_FRAME_RGB_BAYER_BASE	RGB raw data combined format base num value
E_MI_SYS_PIXEL_FRAME_RGB_BAYER_NUM	RGB raw data combined format max num value
E_MI_SYS_PIXEL_FRAME_RGB888	RGB888 format
E_MI_SYS_PIXEL_FRAME_BGR888	BGR888 format
E_MI_SYS_PIXEL_FRAME_GRAY8	8bit gray format
E_MI_SYS_PIXEL_FRAME_FORMAT_MAX	Enum max value

Note

E_MI_SYS_PIXEL_FRAME_RGB_BAYER_BASE, E_MI_SYS_PIXEL_FRAME_RGB_BAYER_NUM are provided for RGB raw data combination format. In this format, the bit ePixPrecision provided by the sensor and the arrangement sequence eBayerId are combined to generate the enum value of the RGB raw data combination format through the RGB_BAYER_PIXEL macro; RGB_BAYER_PIXEL macro definition: #define RGB_BAYER_PIXEL(BitMode, PixelID) (E_MI_SYS_PIXEL_FRAME_RGB_BAYER_BASE+ BitMode*E_MI_SYS_PIXEL_BAYERID_MAX+ PixelID), the range of values: (E_MI_SYSAME_BASE_RGB_FRAME_FRAME_RGB_FRAME_PIXER_RGB_PIXER)

A small example of the use is provided below, and for more detailed information, please refer to the API documentation for the corresponding module.
```
static MI_SYS_PixelFormat_e getVpeRawType(STUB_SensorType_e sensorType)

{

    MI_SYS_PixelFormat_e eVpeRawType = E_MI_SYS_PIXEL_FRAME_RGB_BAYER_NUM;

    MI_SNR_PlaneInfo_t stSnrPlane0Info;

    memset(&stSnrPlane0Info, 0x0, sizeof(MI_SNR_PlaneInfo_t));

    MI_SNR_GetPlaneInfo(E_MI_SNR_PAD_ID_0, 0, &stSnrPlane0Info);

    eVpeRawType =  (MI_SYS_PixelFormat_e)RGB_BAYER_PIXEL(stSnrPlane0Info.ePixPrecision, stSnrPlane0Info.eBayerId);

    return eVpeRawType;

}
```

3.2.3. MI_SYS_CompressMode_e¶

Description

Define Compression enumeration type.

Define

typedef enum

{

    E_MI_SYS_COMPRESS_MODE_NONE,//no compress

    E_MI_SYS_COMPRESS_MODE_SEG,//compress unit is 256 bytes as a segment

    E_MI_SYS_COMPRESS_MODE_LINE,//compress unit is the whole line

    E_MI_SYS_COMPRESS_MODE_FRAME,//compress unit is the whole frame

    E_MI_SYS_COMPRESS_MODE_TO_8BIT,

    E_MI_SYS_COMPRESS_MODE_BUTT, //number

}MI_SYS_CompressMode_e;

Members

Members Name	Description
E_MI_SYS_COMPRESS_MODE_NONE	Uncompressed video formats
E_MI_SYS_COMPRESS_MODE_SEG	Segment compressed video format
E_MI_SYS_COMPRESS_MODE_LINE	Line-compressed video format, compressed by one segment of behavior
E_MI_SYS_COMPRESS_MODE_FRAME	Frame-compressed video format that compresses a frame of data
E_MI_SYS_COMPRESS_MODE_TO_8BIT	Compress pixel to 8-bit
E_MI_SYS_COMPRESS_MODE_BUTT	Number of video compression methods

3.2.4. MI_SYS_FrameTileMode_e¶

Description

Define Tile Format enumeration type.

Define

typedef enum

{

    E_MI_SYS_FRAME_TILE_MODE_NONE = 0,

    E_MI_SYS_FRAME_TILE_MODE_16x16,       // tile mode 16x16

    E_MI_SYS_FRAME_TILE_MODE_16x32,       // tile mode 16x32

    E_MI_SYS_FRAME_TILE_MODE_32x16,       // tile mode 32x16

    E_MI_SYS_FRAME_TILE_MODE_32x32,       // tile mode 32x32

    E_MI_SYS_FRAME_TILE_MODE_MAX

} MI_SYS_FrameTileMode_e;

Members

Members Name	Description
E_MI_SYS_FRAME_TILE_MODE_NONE	None
E_MI_SYS_FRAME_TILE_MODE_16x16	16x16 mode
E_MI_SYS_FRAME_TILE_MODE_16x32	16x32 mode
E_MI_SYS_FRAME_TILE_MODE_32x16	32x16 mode
E_MI_SYS_FRAME_TILE_MODE_32x32	32x32 mode

3.2.5. MI_SYS_FieldType_e¶

Description

Define Enumeration type.

Define

typedef enum

{

    E_MI_SYS_FIELDTYPE_NONE,         //< no field.

    E_MI_SYS_FIELDTYPE_TOP,             //< Top field only.

    E_MI_SYS_FIELDTYPE_BOTTOM,     //< Bottom field only.

    E_MI_SYS_FIELDTYPE_BOTH,         //< Both fields.

    E_MI_SYS_FIELDTYPE_NUM

} MI_SYS_FieldType_e;

Members

Members Name Description

E_MI_SYS_FIELDTYPE_NONE None

E_MI_SYS_FIELDTYPE_TOP Top field only

E_MI_SYS_FIELDTYPE_BOTTOM Bottom field only

E_MI_SYS_FIELDTYPE_BOTH Both fields

3.2.6. MI_SYS_BufDataType_e¶

Description

Define Module ID enumeration type.

Define

typedef enum

{

    E_MI_SYS_BUFDATA_RAW = 0,

    E_MI_SYS_BUFDATA_FRAME,

    E_MI_SYS_BUFDATA_META,

    E_MI_SYS_BUFDATA_MULTIPLANE

} MI_SYS_BufDataType_e;

Members

Members Name Description

E_MI_SYS_BUFDATA_RAW Raw data type

E_MI_SYS_BUFDATA_FRAME Frame data type

E_MI_SYS_BUFDATA_META Meta data type

E_MI_SYS_BUFDATA_MULTIPLANE Multiplane data type

3.2.7. MI_SYS_FrameIspInfoType_e¶

Description

Types of ISP info enumerations carried by Define frame data.

Define

typedef enum

{

    E_MI_SYS_FRAME_ISP_INFO_TYPE_NONE,

    E_MI_SYS_FRAME_ISP_INFO_TYPE_GLOBAL_GRADIENT

}MI_SYS_FrameIspInfoType_e;

Members

Members Name Description

E_MI_SYS_FRAME_ISP_INFO_TYPE_NONE NONE

E_MI_SYS_FRAME_ISP_INFO_TYPE_GLOBAL_GRADIENT Global gradient data types for ISPs

3.2.8. MI_SYS_ChnPort_t¶

Description

Define Module equipment channel structure.

Define

typedef struct MI_SYS_ChnPort_s

{

    MI_ModuleId_e eModId;

    MI_U32  u32DevId;

    MI_U32 u32ChnId;

    MI_U32 u32PortId;

} MI_SYS_ChnPort_t;

Members

Members Name Description

eModId Module No.

u32DevId Device No.

u32ChnId Channel No.

u32PortId Port No.

3.2.9. MI_SYS_MetaData_t¶

Description

Define Structure of the Code Stream MetaData.

Define

typedef struct MI_SYS_MetaData_s

{

    void*  pVirAddr;

    MI_PHY phyAddr;//notice that this is miu bus addr,not cpu bus addr.

    MI_U32 u32Size;

    MI_U32 u32ExtraData;    /*driver special flag*/

    MI_ModuleId_e eDataFromModule;

} MI_SYS_MetaData_t;

Members

Members Name	Description
pVirAddr	Data storage virtual address.
phyAddr	Data storage physical address
u32Size	Data size
u32ExtraData	driver special flag
eDataFromModule	Data from which module

3.2.10. MI_SYS_RawData_t¶

Description

Define Structure of The Stream RawData.

Define

typedef struct MI_SYS_RawData_s

{

    void*    pVirAddr;

    MI_PHY  phyAddr; //notice that this is miu bus addr,not cpu bus addr.

    MI_U32  u32BufSize;

    MI_U32  u32ContentSize;

    MI_BOOL bEndOfFrame;

    MI_U64  u64SeqNum;

} MI_SYS_RawData_t;

Members

Members Name	Description
pVirAddr	The address of the stream package.
phyAddr	The physical address of the stream package
u32BufSize	Buf size
u32ContentSize	Data actually takes up buf size
bEndOfFrame	Whether the current frame ends. (Reserved parameter) currently only supports frame-by-frame transmission in frame mode.
u64SeqNum	Frame number of the current frame

Note
- Currently only support the transmission of data by frame, each time need to transfer a complete frame of data.
- When the stream frame data comes with PTS, the decoded Output data Output is the same PTS. When PTS is 1, do not refer to the system clock Output data frame.

3.2.11. MI_SYS_WindowRect_t¶

Description

Define window Structure of coordinates.

Define

typedef struct MI_SYS_WindowRect_s

{

    MI_U16 u16X;

    MI_U16 u16Y;

    MI_U16 u16Width;

    MI_U16 u16Height;

}MI_SYS_WindowRect_t;

Members

Members Name	Description
u16X	The value of the horizontal direction of the window start position.
u16Y	The value of the vertical direction of the window start position.
u16Width	Window width.
u16Height	Window height.

3.2.12. MI_SYS_FrameData_t¶

Description

Define Structure of The Stream FrameData.

Define

//N.B. in MI_SYS_FrameData_t should never support u32Size,

//for other values are enough,and not support u32Size is general standard method.

typedef  struct  MI_SYS_FrameData_s

{

    MI_SYS_FrameTileMode_e eTileMode;

    MI_SYS_PixelFormat_e ePixelFormat;

    MI_SYS_CompressMode_e eCompressMode;

    MI_SYS_FrameScanMode_e eFrameScanMode;

    MI_SYS_FieldType_e eFieldType;

    MI_SYS_FrameData_PhySignalType ePhylayoutType;

    MI_U16 u16Width;

    MI_U16 u16Height;

//in case ePhylayoutType equal to REALTIME_FRAME_DATA, pVirAddr would be MI_SYS_REALTIME_MAGIC_PADDR and phyAddr would be MI_SYS_REALTIME_MAGIC_VADDR

    void* pVirAddr[3];

    MI_PHY phyAddr[3]; //notice that this is miu bus addr,not cpu bus addr.

    MI_U32 u32Stride[3];

    MI_U32 u32BufSize; //total size that allocated for this buffer,include consider alignment.

    MI_U16 u16RingBufStartLine; //Valid in case RINGBUF_FRAME_DATA,  u16RingBufStartLine must be LGE than 0 and less than u16Height

    MI_U16 u16RingBufRealTotalHeight; ///Valid in case RINGBUF_FRAME_DATA,  u16RingBufStartLine must be LGE than u16Height

    MI_SYS_FrameIspInfo_t stFrameIspInfo; //isp info of each frame

    MI_SYS_WindowRect_t stContentCropWindow;

} MI_SYS_FrameData_t;

Members

Members Name	Description
eTileMode	Tile mode
ePixelFormat	Pixel format
eCompressMode	Compressed format
eFrameScanMode	Frame scan module
eFieldType	File type
ePhylayoutType	The type of buffer that the frame belongs to
u16Width	Frame width
u16Height	Frame height
pVirAddr	Virtual address
phyAddr	Physical address
u32Stride	Number of bytes per row of pictures
u32BufSize	The actual buf size assigned by Sys to the current frame
u16RingBufStartLine	When ring mode, frame data starts with the number of rows of ring buffer
u16RingBufRealTotalHeight	The true height of frame data when ring mode
stFrameIspInfo	ISP info struct
stContentCropWindow	Crop info struct

3.2.13. MI_SYS_BufInfo_t¶

Description

Define Structure of code flow information.

Define

typedef  struct  MI_SYS_BufInfo_s

{

    MI_U64 u64Pts;

    MI_U64 u64SidebandMsg;

    MI_SYS_BufDataType_e eBufType;

    MI_U32 bEndOfStream : 1;

    MI_U32 bUsrBuf : 1;

    MI_U32 bDrop : 1;

    MI_U32 u32IrFlag : 2; // For Window Hello Usage: 0x00/off, 0x01/on, 0x02/invalid

    MI_U32 u32Reserved : 27;

    MI_U32 u32SequenceNumber;

    union

    {

        MI_SYS_FrameData_t stFrameData;

        MI_SYS_RawData_t stRawData;

        MI_SYS_MetaData_t stMetaData;

        MI_SYS_FrameDataMultiPlane_t stFrameDataMultiPlane;

    };

} MI_SYS_BufInfo_t;

Members

Members Name Description

eBufType Buf type

u64Pts Time stamp

bEndOfStream Whether all the information has been sent

u32IrFlag Ir flag bit

3.2.14. MI_SYS_FrameBufExtraConfig_t¶

Description

Define Structure sits additionally configured by Stream Frame buffer.

Define

typedef struct MI_SYS_FrameBufExtraConfig_s

{

    //Buf alignment requirement in horizontal

    MI_U16 u16BufHAlignment;

    //Buf alignment requirement in vertical

    MI_U16 u16BufVAlignment;

    //Buf alignment requirement in chroma

    MI_U16 u16BufChromaAlignment;

    //Clear padding flag

    MI_BOOL bClearPadding;

}MI_SYS_FrameBufExtraConfig_t;

Members

Members Name	Description
u16BufHAlignment	Horizontal alignment values
u16BufVAlignment	Vertical alignment values
u16BufChromaAlignment	Chroma buffer size alignment value
bClearPadding	Do you want to blacken the edges of the buffer?

3.2.15. MI_SYS_BufFrameConfig_t¶

Description

Define Structure of the Code Stream Frame buffer configuration.

Define

typedef struct MI_SYS_BufFrameConfig_s

{

    MI_U16 u16Width;

    MI_U16 u16Height;

    MI_SYS_FrameScanMode_e eFrameScanMode;//

    MI_SYS_PixelFormat_e eFormat;

    MI_SYS_CompressMode_e eCompressMode;

}MI_SYS_BufFrameConfig_t;

Members

Members Name Description

u16Width Frame width

u16Height Frame height

eFrameScanMode Frame Scan Mode

eFormat Frame pixel format

eCompressMode Frame compress mode

3.2.16. MI_SYS_BufRawConfig_t¶

Description

Define Structure of the code flow raw buffer configuration.

Define

typedef struct MI_SYS_BufRawConfig_s

{

    MI_U32 u32Size;

}MI_SYS_BufRawConfig_t;

Members

Members Name Description

u32Size Buf Size

3.2.17. MI_SYS_MetaDataConfig_t¶

Description

Define Structure of the code flow meta buffer configuration.

Define

typedef struct MI_SYS_MetaDataConfig_s

{

    MI_U32 u32Size;

}MI_SYS_MetaDataConfig_t;

Members

Members Name Description

u32Size Buf Size

3.2.18. MI_SYS_BufConf_t¶

Description

Define Structure of the Flow Port Buf configuration.

Define

typedef struct MI_SYS_BufConf_s

{

    MI_SYS_BufDataType_e eBufType;

    MI_U32 u32Flags;    //0 or MI_SYS_MAP_VA

    MI_U64 u64TargetPts;

    union

    {

        MI_SYS_BufFrameConfig_t stFrameCfg;

        MI_SYS_BufRawConfig_t stRawCfg;

        MI_SYS_MetaDataConfig_t stMetaCfg;

        MI_SYS_BufFrameMultiPlaneConfig_t stMultiPlaneCfg;

    };

}MI_SYS_BufConf_t;

Members

Members Name Description

eBufType Buf type

u32Flags Buf is map kernel space va?

3.2.19. MI_SYS_Version_t¶

Description

Define Sys version structure information.

Define

typedef struct MI_SYS_Version_s

{

    MI_U8 u8Version[128];

}MI_SYS_Version_t;

Members

Members Name Description

u8Version[128] Describe sys version information string buf

3.2.20. MI_VB_PoolListConf_t¶

Description

Define DescribeVB Pool Structure of linked information.

Define

typedef struct MI_VB_PoolListConf_s

{

    MI_U32 u32PoolListCnt;

    MI_VB_PoolConf_t stPoolConf[MI_VB_POOL_LIST_MAX_CNT];

} MI_VB_PoolListConf_t;

Members

Members Name Description

u32PoolListCnt VB pool list number of Members

stPoolConf VB pool linked table Members configuration information

3.2.21. MI_SYS_BindType_e¶

Description

Define Front and rear operating modes.

Define

typedef enum

{

    E_MI_SYS_BIND_TYPE_FRAME_BASE = 0x00000001,

    E_MI_SYS_BIND_TYPE_SW_LOW_LATENCY = 0x00000002,

    E_MI_SYS_BIND_TYPE_REALTIME = 0x00000004,

    E_MI_SYS_BIND_TYPE_HW_AUTOSYNC = 0x00000008,

    E_MI_SYS_BIND_TYPE_HW_RING = 0x00000010

}MI_SYS_BindType_e;

Members

Members Name	Description
E_MI_SYS_BIND_TYPE_FRAME_BASE	frame mode, default how to work
E_MI_SYS_BIND_TYPE_SW_LOW_LATENCY	Low latency working
E_MI_SYS_BIND_TYPE_REALTIME	How hardware is directly connected
E_MI_SYS_BIND_TYPE_HW_AUTOSYNC	Front and rear handshake level, buffer size consistent with image resolution
E_MI_SYS_BIND_TYPE_HW_RING	Front and rear handshake levels, ring buffer depth can be trated less than the image resolution is high

Note
- Older versions of MI SYS do not provide this function, if not found, do not have to set.
- The FRAME_BASE and HW_RING types use DRAM, and the REALTIME type uses SRAM.
- Due to underlying restrictions, input ports bound by HW_RING or REALTIME cannot use MI_SYS_ChnInputPortGetBuf/ MI_SYS_ChnInputPortPutBuf, and output ports cannot use MI_SYS_ChnOutputPortGetBuf/ MI_SYS_ChnOutputPortPutBuf.
- Comparison of memory size used by different bindtypes: FRAME_BASE type> HW_RING type> REALTIME type.

3.2.22. MI_SYS_FrameData_PhySignalType¶

Description

Describe frame data Enumerated types of buffer types that are affiliated.

Define

typedef enum

{

  REALTIME_FRAME_DATA,

  RINGBUF_FRAME_DATA,

  NORMAL_FRAME_DATA,

}MI_SYS_FrameData_PhySignalType;

Members

Members Name Description

REALTIME_FRAME_DATA In E_MI_SYS_BIND_TYPE_REALTIME mode

RINGBUF_FRAME_DATA The resulting frame data

NORMAL_FRAME_DATA In E_MI_SYS_BIND_TYPE_HW_RING mode
Note

Older versions of MI SYS do not provide this function, if not found, do not have to set.

3.2.23. MI_SYS_InsidePrivatePoolType_e¶

Description

Enumeration type of private MMA POOL type in Description Creat.

Define

typedef enum

{

    E_MI_SYS_VPE_TO_VENC_PRIVATE_RING_POOL = 0,

    E_MI_SYS_PER_CHN_PRIVATE_POOL=1,

    E_MI_SYS_PER_DEV_PRIVATE_POOL=2,

    E_MI_SYS_PER_CHN_PORT_OUTPUT_POOL=3,

}MI_SYS_InsidePrivatePoolType_e;

Members

Members Name	Description
E_MI_SYS_VPE_TO_VENC_PRIVATE_RING_POOL	Private Ring Pool Type for VPE and VENC
E_MI_SYS_PER_CHN_PRIVATE_POOL	Channel Private Pool Type
E_MI_SYS_PER_DEV_PRIVATE_POOL	Device Private Pool Type
E_MI_SYS_PER_CHN_PORT_OUTPUT_POOL	Output Port Private Pool Type

Note

Older versions of MI SYS do not provide this function, if not found, do not have to set.

3.2.24. MI_SYS_PerChnPrivHeapConf_t¶

Description

Define Description Channel private MMA Pool structure.

Define

typedef struct MI_PerChnPrivHeapConf_s

{

    MI_ModuleId_e eModule;

    MI_U32 u32Devid;

    MI_U32 u32Channel;

    MI_U8 u8MMAHeapName[MI_MAX_MMA_HEAP_LENGTH];

    MI_U32 u32PrivateHeapSize;

}MI_SYS_PerChnPrivHeapConf_t;

Members

Members Name Description

eModule Module ID

u32Devid Device ID

u32Channel Channel ID

u8MMAHeapName Mma heap name

u32PrivateHeapSize Private pool size

3.2.25. MI_SYS_PerDevPrivHeapConf_t¶

Description

Define Description Structure of the device's private MMA Pool.

Define

typedef struct MI_PerDevPrivHeapConf_s

{

    MI_ModuleId_e eModule;

    MI_U32 u32Devid;

    MI_U32 u32Reserve;

    MI_U8 u8MMAHeapName[MI_MAX_MMA_HEAP_LENGTH];

    MI_U32 u32PrivateHeapSize;

}MI_SYS_PerDevPrivHeapConf_t;

Members

Members Name Description

eModule Module ID

u32Devid Device ID

u32Reserve Reserved

u8MMAHeapName Mma heap name

u32PrivateHeapSize Private pool size

3.2.26. MI_SYS_PerVpe2VencRingPoolConf_t¶

Description

Define Description Structure of private Ring MMA Pool between VPE and VENC.

Define

typedef struct MI_SYS_PerVpe2VencRingPoolConf_s

{

    MI_U32 u32VencInputRingPoolStaticSize;

    MI_U8 u8MMAHeapName[MI_MAX_MMA_HEAP_LENGTH];

}MI_SYS_PerVpe2VencRingPoolConf_t;

Members

Members Name Description

u32VencInputRingPoolStaticSize Private pool size

u8MMAHeapName Mma heap name

3.2.27. MI_SYS_PerChnPortOutputPool_t¶

Description

Define Describeouput port Structure of private MMA Pool.

Define

typedef struct MI_SYS_PerChnPortOutputPool_s

{

    MI_ModuleId_e eModule;

    MI_U32 u32Devid;

    MI_U32 u32Channel;

    MI_U32 u32Port;

    MI_U8 u8MMAHeapName[MI_MAX_MMA_HEAP_LENGTH];

    MI_U32 u32PrivateHeapSize;

}MI_SYS_PerChnPortOutputPool_t;

Members

Members Name Description

eModule Module ID

u32Devid Device ID

u32Channel Channel ID

u32Port Port ID

u8MMAHeapName Mma heap name

u32PrivateHeapSize Private pool size

3.2.28. MI_SYS_GlobalPrivPoolConfig_t¶

Description

Define Description Configure the structure of the private MMA Pool.

Define

typedef struct MI_SYS_GlobalPrivPoolConfig_s

{

    MI_SYS_InsidePrivatePoolType_e eConfigType;

    MI_BOOL bCreate;

    union

    {

        MI_SYS_PerChnPrivHeapConf_t stPreChnPrivPoolConfig;

        MI_SYS_PerDevPrivHeapConf_t stPreDevPrivPoolConfig;

        MI_SYS_PerVpe2VencRingPoolConf_t stPreVpe2VencRingPrivPoolConfig;

        MI_SYS_PerChnPortOutputPool_t stPreChnPortOutputPrivPool;

    }uConfig;

}MI_SYS_GlobalPrivPoolConfig_t;

Members

Members Name Description

eConfigType Private pool type

bCreate Whether Create PrivatePool.true: Creat false: Destroyed

uConfig Structures of different types of private pool

3.2.29. MI_SYS_FrameIspInfo_t¶

Description

Structure of ISP info in Define frame data.

Define

typedef struct MI_SYS_FrameIspInfo_s

{

    MI_SYS_FrameIspInfoType_e eType;

    union

    {

        MI_U32 u32GlobalGradient;

    }uIspInfo;

}MI_SYS_FrameIspInfo_t;

Members

Members Name Description

eType ISP info type

uIspInfo ISP info union

3.2.30. MI_SYS_InitParam_t¶

Description

SYS device initialization parameter.

Define

typedef struct MI_SYS_InitParam_s

{

    MI_U32 u32DevId;

    MI_U8 *u8Data;

} MI_SYS_InitParam_t;

Members

Members Name Description

u32DevId Device ID

u8Data Data pointer buffer
Related data types and interfaces

MI_SYS_InitDev

3.2.31. MI_SYS_BufFrameMultiPlaneConfig_t¶

Description

Define Structure of the code flow multiplane buffer configuration.

Define

typedef struct MI_SYS_BufFrameMultiPlaneConfig_s

{

    MI_U8 u8SubPlaneNum;

    MI_SYS_BufFrameConfig_t stFrameCfg;

}MI_SYS_BufFrameMultiPlaneConfig_t;

Members

Members Name Description

u8SubPlaneNum Buf count

stFrameCfg Define Structure of the code flow frame buffer configuration.

3.2.32. MI_SYS_FrameDataSubPlane_t¶

Description

Define Structure of The Stream SubPlane FrameData.

Define

typedef struct MI_SYS_FrameDataSubPlane_s

{

    MI_SYS_PixelFormat_e ePixelFormat;

    MI_SYS_CompressMode_e eCompressMode;

    MI_U64 u64FrameId;

    MI_U16 u16Width;

    MI_U16 u16Height;

    void* pVirAddr[2];

    MI_PHY phyAddr[2];

    MI_U16 u16Stride[2];

    MI_U32 u32BufSize;

} MI_SYS_FrameDataSubPlane_t;

Members

Members Name	Description
ePixelFormat	Pixel format
eCompressMode	Compressed format
u64FrameId	Frame id
u16Width	Frame width
u16Height	Frame height
pVirAddr	Virtual address
phyAddr	Physical address
u16Stride	Number of bytes per row of pictures
u32BufSize	The actual buf size assigned by Sys to the current frame

3.2.33. MI_SYS_FrameDataMultiPlane_t¶

Description

Define Structure of the Stream MutiPlane FrameData.

Define

typedef struct MI_SYS_FrameDataMultiPlane_s

{

    MI_U8 u8SubPlaneNum;

    MI_SYS_FrameDataSubPlane_t stSubPlanes[MI_SYS_MAX_SUB_PLANE_CNT];

} MI_SYS_FrameDataMultiPlane_t;

Members

Members Name Description

u8SubPlaneNum Buf count

stSubPlanes Define Structure of the code flow MultiPlane buffer configuration.

3.2.34. MI_SYS_GlobalFlagType_e¶

Description

Define global Flag type.

Define

typedef enum

{

    E_MI_SYS_GLOBALFLAG_IR,

    E_MI_SYS_GLOBALFLAG_NUM,

} MI_SYS_GlobalFlagType_e;

Members

Members Name Description

E_MI_SYS_GLOBALFLAG_IR IR global Flag

3.2.35. MI_SYS_GlobalFlagParam_t¶

Description

Set global Flag parameter.

Define

typedef struct MI_SYS_GlobalFlagParam_s

{

    MI_SYS_GlobalFlagType_e eFlagType;

    MI_BOOL bIsr;

    MI_U32 u32Value;

} MI_SYS_GlobalFlagParam_t;

Members

Members Name	Description
eFlagType	Set Flag type, currently only supports setting to MI_SYS_GLOBALFLAG_IR
bIsr	Whether the Flag setting will be executed in the interrupt request, if it is, set it to 1.
u32FlagNew	Set the value of the global flag bit. Currently only the IR flag bit is supported. 0x01 means the IR light is turned on, and 0x00 means the IR light is turned off.

Note

When setting the IR global Flag, u32Value=0, it means OFF, u32FlagNew=1, it means ON.

3.2.36. MI_SYS_MmaPoolInfo_t¶

Description

Define the structure describing the memory pool.

Define

typedef struct MI_SYS_MmaPoolInfo_s
{
MI_BOOL bPrivatePool;
Union{
    MI_SYS_ChnPort_t stChnPort;
    MI_U8  u8MMAHeapName[MI_MAX_MMA_HEAP_LENGTH];
}uConfig;
MI_U32 u32TotalFreeSize;
MI_U32 u32MaxContiFreeSize;
} MI_SYS_MmaPoolInfo_t;

Members

Members Name	Description
bPrivatePool	whether to obtain private pool information TRUE: Configure uConfig.stChnPort FALSE: Configure u8MMAHeapName
uConfig	stChnPort: Configure the private pool information to be queried u8MMAHeapName: mma heap name to be queried
u32TotalFreeSize	The total free size of the memory pool
u32MaxContiFreeSize	The maximum physically continuous memory length of the memory pool

4. Error Code¶

4.1. The composition of the error code¶

Mi returns the error code for 4 bytes, a total of 32bits, consisting of five parts as shown in Table 4-1:

Table 4‑1: The composition of the error code

Position	Bits	Description
BIT [0-11]	12bits	The error type that indicates the specific error meaning of the error code.
BIT [12-15]	4bits	Error level, fixed return 2.
BIT [16-23]	8bits	Module ID, which module the error code belongs to.
BIT [24-31]	8bits	Fixed to 0xA0.

Tips:

We can simply think of the error code as two double bytes (16bits) for quick interpretation, in the case of the error code 0xA0092001:

"A009": Indicates that the error occurred in a module with module ID 9, which can be seen as a MI_SYS module by looking at the “MI_ModuleId_e”Define.

"2001": The error type that indicates the error is 1, i.e. "Device ID is out of legal range".

4.2. The error code list for MI_SYS API¶

MI_SYS APIs return a value of 4 bytes, 0 indicates successful, and other values indicate failed. Please note that all Non-0 return value should be listed in Table 4-2, otherwise it is illegal.

Table 4‑2: MI_SYS error code

Error Code	Definition	Description
0xA0092001	MI_ERR_SYS_INVALID_DEVID	Device ID out of legal range
0xA0092002	MI_ERR_SYS_INVALID_CHNID	Channel group number error or invalid area handle
0xA0092003	MI_ERR_SYS_ILLEGAL_PARAM	Parameter out of legal range
0xA0092004	MI_ERR_SYS_EXIST	Repeatedly create a device, channel or resource that already exists
0xA0092005	MI_ERR_SYS_UNEXIST	Trying to use or destroy a device, channel or resource that does not exist
0xA0092006	MI_ERR_SYS_NULL_PTR	There are null pointers in the function
0xA0092007	MI_ERR_SYS_NOT_CONFIG	The module is not configured
0xA0092008	MI_ERR_SYS_NOT_SUPPORT	The parameter or function is not supported
0xA0092009	MI_ERR_SYS_NOT_PERM	This operation is not permitted, such as trying to modify static configuration parameters
0xA009200C	MI_ERR_SYS_NOMEM	Failed to allocate memory, such as system memory is insufficient
0xA009200D	MI_ERR_SYS_NOBUF	Failed to allocate buffer, such as the requested data buffer is too large
0xA009200E	MI_ERR_SYS_BUF_EMPTY	No data in the buffer
0xA009200F	MI_ERR_SYS_BUF_FULL	Full data in buffer
0xA0092010	MI_ERR_SYS_NOTREADY	The system has not initialized or loaded the module
0xA0092011	MI_ERR_SYS_BADADDR	The address is illegal
0xA0092012	MI_ERR_SYS_BUSY	The system is busy
0xA0092013	MI_ERR_SYS_CHN_NOT_STARTED	The channel has not been started.
0xA0092014	MI_ERR_SYS_CHN_NOT_STOPED	The channel has not been stopped
0xA0092015	MI_ERR_SYS_NOT_INIT	The module has not been initialized
0xA0092016	MI_ERR_SYS_INITED	The module has been initialized
0xA0092017	MI_ERR_SYS_NOT_ENABLE	The channel or port has not been enabled
0xA0092018	MI_ERR_SYS_NOT_DISABLE	The channel or port has not been disabled
0xA0092019	MI_ERR_SYS_TIMEOUT	Timeout
0xA009201A	MI_ERR_SYS_DEV_NOT_STARTED	The device has not been started
0xA009201B	MI_ERR_SYS_DEV_NOT_STOPED	The device has not been stopped
0xA009201C	MI_ERR_SYS_CHN_NO_CONTENT	There is no content in the channel
0xA009201D	MI_ERR_SYS_NOVASAPCE	Failed to map virtual address
0xA009201E	MI_ERR_SYS_NOITEM	There is no item in RingPool
0xA009201F	MI_ERR_SYS_FAILED	Undefined error

5. PROCFS INTRODUCTION¶

5.1. common¶

5.1.1. dump_mmap¶

Debug Information
```
# /config/dump_mmap
```

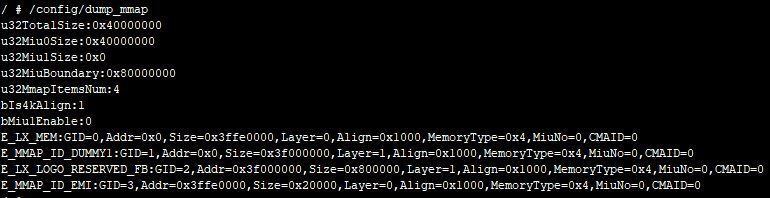

Debug Information Analysis

/config/dump_mmap displays memory related information according to the file ./config/mmap.ini.

Parameter Description

Parameter		Description
u32TotalSize		Dram total size
u32Miu0Size		Addressing size of MIU0
u32Miu1Size		Addressing size of MIU1
u32MiuBoundary		MIU0 end address
u32MmapItemsNum		The number of Dram mmap, here is two, which are E_LX_MEM and E_MMAP_ID_EMI
bIs4kAlign		Whether read and write Dram need 4K alignment
bMiu1Enable		Enable MIU1 or not
E_LX_MEM	GID	Mmap id
	Addr	Memory address
	Size	Memory size
	Layer	Memory layer
	Align	Memory align
	MemoryType	Memory type
	MiuNo	MIU NO.
	CMAID	CMA id
E_MMAP_ID_EMI	GID	Mmap id
	Addr	Memory address
	Size	Memory size
	Layer	Memory layer
	Align	Memory align
	MemoryType	Memory type
	MiuNo	MIU NO.
	CMAID	CMA id

5.1.2. dump_config¶

Debug Information

# /config/dump_config

panel cnt:59
PanelName:RM68200_720x1280 Intftype:11 timing:55
PanelName:SAT070AT50H18BH_1024x600 Intftype:0 timing:55
PanelName:BT1120OUTPUT_720p_60HZ Intftype:14 timing:55
PanelName:BT656OUTPUT_576p_50HZ Intftype:12 timing:55
PanelName:ST7789V Intftype:16 timing:55
PanelName:ILI9881C_800x1280 Intftype:11 timing:55
PanelName:ILI9163C_128x128 Intftype:15 timing:55
PanelName:DACOUT_576I Intftype:7 timing:4
PanelName:DACOUT_480I Intftype:7 timing:2
PanelName:DACOUT_1080P_24 Intftype:8 timing:10
PanelName:DACOUT_1080P_25 Intftype:8 timing:11
PanelName:DACOUT_1080P_30 Intftype:8 timing:12
PanelName:DACOUT_1080P_50 Intftype:8 timing:15
PanelName:DACOUT_720P_2997 Intftype:8 timing:6
PanelName:DACOUT_720P_50 Intftype:8 timing:7
PanelName:DACOUT_720P_5994 Intftype:8 timing:8
PanelName:DACOUT_720P_60 Intftype:8 timing:9
PanelName:DACOUT_1080P_2997 Intftype:8 timing:13
PanelName:DACOUT_1080I_50 Intftype:7 timing:14
PanelName:DACOUT_1080P_5994 Intftype:8 timing:16
PanelName:DACOUT_1080I_60 Intftype:7 timing:17
PanelName:DACOUT_1080P_60 Intftype:8 timing:18
PanelName:DACOUT_576P Intftype:8 timing:5
PanelName:DACOUT_480P Intftype:8 timing:3
PanelName:DACOUT_2K2KP_30 Intftype:8 timing:27
PanelName:DACOUT_2K2KP_60 Intftype:8 timing:28
PanelName:DACOUT_4K2KP_24 Intftype:8 timing:33
PanelName:DACOUT_4K2KP_25 Intftype:8 timing:34
PanelName:DACOUT_4K2KP_30 Intftype:8 timing:35
PanelName:DACOUT_4K2KP_50 Intftype:8 timing:36
PanelName:DACOUT_4K2KP_60 Intftype:8 timing:37
PanelName:DACOUT_1440P_50 Intftype:8 timing:19
PanelName:DACOUT_1440P_60 Intftype:8 timing:20
PanelName:VGAOUT_1024x768P_60 Intftype:8 timing:45
PanelName:VGAOUT_1280x1024P_60 Intftype:8 timing:48
PanelName:VGAOUT_1366x768P_60 Intftype:8 timing:46
PanelName:VGAOUT_1440x900P_60 Intftype:8 timing:49
PanelName:VGAOUT_1280x800P_60 Intftype:8 timing:47
PanelName:VGAOUT_1680x1050P_60 Intftype:8 timing:51
PanelName:VGAOUT_1600x1200P_60 Intftype:8 timing:50
PanelName:BT1120OUT_576P_50 Intftype:14 timing:5
PanelName:BT1120OUT_480P_60 Intftype:14 timing:3
PanelName:BT1120OUT_1080P_25 Intftype:14 timing:11
PanelName:BT1120OUT_1080P_30 Intftype:14 timing:12
PanelName:BT1120OUT_1080P_50 Intftype:14 timing:15
PanelName:BT1120OUT_1080P_2997 Intftype:14 timing:13
PanelName:BT1120OUT_1080P_5994 Intftype:14 timing:16
PanelName:BT1120OUT_1080P_60 Intftype:14 timing:18
PanelName:BT1120OUT_720P_50 Intftype:14 timing:7
PanelName:BT1120OUT_720P_5994 Intftype:14 timing:8
PanelName:BT1120OUT_720P_60 Intftype:14 timing:9
PanelName:BT656OUT_576P_50 Intftype:12 timing:5
PanelName:BT656OUT_480P_60 Intftype:12 timing:3
PanelName:BT656OUT_1080P_25 Intftype:12 timing:11
PanelName:BT656OUT_1080P_2997 Intftype:12 timing:13
PanelName:BT656OUT_1080P_30 Intftype:12 timing:12
PanelName:BT656OUT_720P_50 Intftype:12 timing:7
PanelName:BT656OUT_720P_60 Intftype:12 timing:9
PanelName:BT656OUT_720P_5994 Intftype:12 timing:8
pq table size:25892
DBC Value=
        0,0,0
        0,0,0
        0,0,0
start dump [motion_table](0, 0)
end dump
start dump [motion_hdmi_dtv_table](0, 0)
end dump
start dump [motion_comp_pc_table](0, 0)
end dump
start dump [misc_param_table](0, 0)
end dump
start dump [misc_luma_table](0, 0)
end dump
start dump [noise_table](0, 0)
end dump
start dump [misc_table](0, 0)
end dump

Debug Information Analysis

./config/dump_config得到的是/proc/mi_modules/common/里各文件的信息，含panel count、DBC Value、motion_table、motion_hdmi_dtv_table、motion_comp_pc_table、misc_param_table、misc_luma_table、noise_table、misc_table等。

Parameter Description

Parameter		Description
panel	Panel cnt	LCD panel count
	PanelName	LCD panel name
	Intftype	LCD panel interface type: E_MAPI_PNL_INTF_TTL = 0, ///< TTL type E_MAPI_PNL_INTF_LVDS, ///< LVDS type E_MAPI_PNL_INTF_RSDS, ///< RSDS type E_MAPI_PNL_INTF_MINILVDS, ///< TCON ///< Analog TCON E_MAPI_PNL_INTF_ANALOG_MINILVDS, ///< Digital TCON E_MAPI_PNL_INTF_DIGITAL_MINILVDS, E_MAPI_PNL_INTF_MFC, ///< Ursa (TTL output to Ursa) E_MAPI_PNL_INTF_DAC_I, ///< DAC output E_MAPI_PNL_INTF_DAC_P, ///< DAC output ///< For PDP(Vsync use Manually MODE) E_MAPI_PNL_INTF_PDPLVDS, E_MAPI_PNL_INTF_EXT, ///< EXT LPLL type E_MAPI_PNL_INTF_MIPI_DSI, E_MAPI_PNL_INTF_BT656, E_MAPI_PNL_INTF_BT601, E_MAPI_PNL_INTF_BT1120, ///< BT1120 E_MAPI_PNL_INTF_MCU_TYPE, ///< MCU type E_MAPI_PNL_INTF_SRGB, ///< sRGB E_MAPI_PNL_INTF_TTL_SPI_IF,
	timing	LCD panel display output timing: DISPLAYTIMING_MIN = 0, DISPLAYTIMING_DACOUT_DEFAULT = 0, DISPLAYTIMING_DACOUT_FULL_HD, DISPLAYTIMING_DACOUT_480I, DISPLAYTIMING_DACOUT_480P, DISPLAYTIMING_DACOUT_576I, DISPLAYTIMING_DACOUT_576P, // 5 DISPLAYTIMING_DACOUT_720P_2997, DISPLAYTIMING_DACOUT_720P_50, DISPLAYTIMING_DACOUT_720P_5994, DISPLAYTIMING_DACOUT_720P_60, DISPLAYTIMING_DACOUT_1080P_24, DISPLAYTIMING_DACOUT_1080P_25, DISPLAYTIMING_DACOUT_1080P_30, // 12 DISPLAYTIMING_DACOUT_1080P_2997, DISPLAYTIMING_DACOUT_1080I_50, DISPLAYTIMING_DACOUT_1080P_50, DISPLAYTIMING_DACOUT_1080P_5994, DISPLAYTIMING_DACOUT_1080I_60, DISPLAYTIMING_DACOUT_1080P_60, DISPLAYTIMING_DACOUT_1440P_50, DISPLAYTIMING_DACOUT_1440P_60, DISPLAYTIMING_DACOUT_1470P_24, DISPLAYTIMING_DACOUT_1470P_30, DISPLAYTIMING_DACOUT_1470P_60, DISPLAYTIMING_DACOUT_2205P_24, // For 2k2k DISPLAYTIMING_DACOUT_2K2KP_24, // 23 DISPLAYTIMING_DACOUT_2K2KP_25, DISPLAYTIMING_DACOUT_2K2KP_30, DISPLAYTIMING_DACOUT_2K2KP_60, // For 4k0.5k DISPLAYTIMING_DACOUT_4K540P_240, // For 4k1k DISPLAYTIMING_DACOUT_4K1KP_30, DISPLAYTIMING_DACOUT_4K1KP_60, DISPLAYTIMING_DACOUT_4K1KP_120, // For 4k2k DISPLAYTIMING_DACOUT_4K2KP_24, DISPLAYTIMING_DACOUT_4K2KP_25, DISPLAYTIMING_DACOUT_4K2KP_30, // 33 DISPLAYTIMING_DACOUT_4K2KP_50, DISPLAYTIMING_DACOUT_4K2KP_60, DISPLAYTIMING_DACOUT_4096P_24, DISPLAYTIMING_DACOUT_4096P_25, DISPLAYTIMING_DACOUT_4096P_30, DISPLAYTIMING_DACOUT_4096P_50, DISPLAYTIMING_DACOUT_4096P_60, // For VGA OUTPUT DISPLAYTIMING_VGAOUT_640x480P_60, DISPLAYTIMING_VGAOUT_1280x720P_60, DISPLAYTIMING_VGAOUT_1024x768P_60, DISPLAYTIMING_VGAOUT_1366x768P_60, DISPLAYTIMING_VGAOUT_1280x800P_60, DISPLAYTIMING_VGAOUT_1280x1024P_60, DISPLAYTIMING_VGAOUT_1440x900P_60, DISPLAYTIMING_VGAOUT_1600x1200P_60, DISPLAYTIMING_VGAOUT_1680x1050P_60, DISPLAYTIMING_VGAOUT_1920x1080P_60, // 43 // For TTL output DISPLAYTIMING_TTLOUT_480X272_60, DISPLAYTIMING_DACOUT_4K2KP_120, DISPLAYTIMING_USER, DISPLAYTIMING_MAX_NUM,
Pq table size		Pq table size
DBC Value		No effect at present
motion_table		No effect at present
motion_hdmi_dtv_table		No effect at present
motion_comp_pc_table		No effect at present
misc_param_table		No effect at present
misc_luma_table		No effect at present
noise_table		No effect at present
misc_table		No effect at present

5.2. mi_log_info¶

5.2.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_log_info
---------------- Log Path ------------------------
log path:
---------------- Store Path ----------------------
store path:  /mnt
---------------- Module Log Level ----------------
Log module        Level
--------------------------
mi_ive            2(WRN)
mi_vdf            2(WRN)
mi_venc           2(WRN)
mi_rgn            2(WRN)
mi_ai             2(WRN)
mi_ao             2(WRN)
mi_vif            2(WRN)
mi_vpe            2(WRN)
mi_vdec           2(WRN)
mi_sys            2(WRN)
mi_fb             2(WRN)
mi_hdmi           2(WRN)
mi_divp           2(WRN)
mi_gfx            2(WRN)
mi_vdisp          2(WRN)
mi_disp           2(WRN)
mi_os             2(WRN)
mi_iae            2(WRN)
mi_md             2(WRN)
mi_od             2(WRN)
mi_shadow         2(WRN)
mi_warp           2(WRN)
mi_uac            2(WRN)
mi_ldc            2(WRN)
mi_sd             2(WRN)
mi_panel          2(WRN)
mi_cipher         2(WRN)
mi_sensor         2(WRN)
mi_wlan           2(WRN)
mi_ipu            2(WRN)
mi_mipitx         2(WRN)
mi_gyro           2(WRN)
mi_jpd            2(WRN)
mi_pspi           2(WRN)

help example:
echo mi_sys=2 > /proc/mi_modules/mi_log_info
echo mi_vdisp=1 > /proc/mi_modules/mi_log_info
echo log=/mnt > /proc/mi_modules/mi_log_info
echo storepath=/mnt > /proc/mi_modules/mi_log_info

Debug Information Analysis

Show default log path or store path, also show the value of each module’s debug_level.

Parameter Description

Parameter		Description
mi_log_info	log path	No effect at present
	store path	No effect at present
	Log module	The name of each module
	Level	Log level

5.2.2. echo¶

Function	Modify module debug_level
Command	echo [ModID]=[Level] > /proc/mi_modules/mi_log_info
Parameter Description	[ModID] mi_ive / mi_vdf / mi_venc / mi_rgn mi_ai / mi_ao / mi_vif / mi_vpe mi_vdec / mi_sys / mi_fb / mi_hdmi mi_divp / mi_gfx / mi_vdisp / mi_disp mi_os / mi_iae / mi_md / mi_od / mi_shadow [Level] 0 No debug information (MI_DBG_NONE) 1 Only show error information (MI_DBG_ERR) 2 Show information of level<=2 (MI_DBG_WRN) 3 Show information of level<=3 (MI_DBG_API) 4 Show information of level<=4 (MI_DBG_KMSG) 5 Show information of level<=5 (MI_DBG_INFO) 6 Show information of level<=6 (MI_DBG_DEBUG) 7 Show information of level<=7 (MI_DBG_TRACE) 8 Show all information (MI_DBG_ALL)
Example	echo mi_sys=2 > /proc/mi_modules/mi_log_info // The debug_level of mi_sys is modified to 2

Function	Modify log’s path
Command	echo log=[Path] > /proc/mi_modules/mi_log_info
Parameter Description	[Path] path
Example	echo log=/mnt > /proc/mi_modules/mi_log_info

Function	Modify store log’s path
Command	echo storepath=[Path] > /proc/mi_modules/mi_log_info
Parameter Description	[Path] path
Example	echo storepath=/mnt > /proc/mi_modules/mi_log_info

5.3. mi_global_info¶

5.3.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_global_info

miu_and_lx_info:
ARM_MIU0_BUS_BASE 0x20000000       ARM_MIU0_BASE_ADDR 0x0
ARM_MIU1_BUS_BASE 0xa0000000       ARM_MIU1_BASE_ADDR 0x80000000
ARM_MIU2_BUS_BASE 0xffffffff       ARM_MIU2_BASE_ADDR 0xffffffff
lx_mem_addr  0x20000000     lx_mem_size  0x7fe0000
lx_mem2_addr 0xffffffff     lx_mem2_size 0xffffffff
lx_mem3_addr 0xffffffff     lx_mem3_size 0xffffffff

KernelProtect IP white list:
        clientId                             name
            112                              CPU
            10                              MCU51
            38                              USB20_H
            8                              USB20
            3                              USB30
            39                              MIIC2
            40                              MIIC1
            46                              MIIC0
            9                              EMAC
            30                              SD30
            31                              SDIO30
            7                              AESDMA
            11                              URDMA
            12                              BDMA
            13                              MOVDMA
            0                              OVERALL

PAGE_OFFSET - the virtual address of the start of the kernel image
TASK_SIZE - the maximum size of a user space task
    PAGE_OFFSET      TASK_SIZE  VMALLOC_START    VMALLOC_END
    c0000000       bf000000       c8000000       ff800000
Sigmastar Module mi_sys version: project_commit.141b015 sdk_commit.0864fc2 build_time.20211026144648

Debug Information Analysis

The Debug Information provide some global information.

Parameter Description

Parameter		Description
miu_and_lx_info (Take only one MIU as an example)	ARM_MIU0_BUS_BASE	Miu0 bus base
	ARM_MIU0_BASE_ADDR	Miu0 base addr
	lx_mem_addr	The starting address of the memory occupied by the Linux image (Belong to cpu bus address)
	lx_mem_size	The memory size occupied by the Linux image
kernelProtect IP white list	clientId	Miu protect IP id in IP whitelist (The global id from the perspective of undivided group)
kernelProtect IP white list	name	The actual name of the IP corresponding to the clientId
	PAGE_OFFSET	The virtual address of the start of the kernel image
	TASK_SIZE	The maximum size of a user space task
	VMALLOC_START	The start address of vmalloc memory
	VMALLOC_END	The end address of vmalloc memory
Sigmastar Module mi_sys version	project_commit	Commit corresponding to project
	sdk_commit	Commit corresponding to sdk
	build_time	sdk build time

5.4. mi_bufqueue_status¶

5.4.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_bufqueue_status
dump Queues in input port only for enabled port:
ModId   DevId  ChnId  PassId  InPortId   UsrInjectQ_cnt   BindInQ_cnt   InputPendingQueueSize
7       0      0      0         0               0             2                0
7       0      0      1         0               0             0                0
7       0      0      2         0               0             0                0
2       1      0      0         0               0             0                0
dump Queues in output port only for enabled port:
ModId DevId ChnId PassId OutPortId DrvBkRefFifoQ_cnt DrvBkRefFifoQ_size UsrGetFifoQ_cnt UsrGetFifoQ_size
6     0     0     0        0                 0                0              0               0
7     0     0     0        0                 0                0              0               0
7     0     0     1        0                 0                0              0               0
7     0     0     2        0                 0                0              0               0

Debug Information Analysis

Dump current each modules’s related Queue information of enable input/output port.

Parameter Description

Parameter		Description
dump Queues in input port only for enabled port	ModId	The module id of the input port.
	DevId	The device id of the input port.
	ChnId	The channel id of the input port.
	PassId	The pass id of the input port.
	InPortId	The input port id.
	UsrInjectQ_cnt	The number of buffers in UsrInjectBufQueue of the InputPort(buf queue that usr inject comes in and has not been processed yet).
	BindInQ_cnt	The number of buffers in the UsrPipeInBufQueue of the InputPort (buf queue that has not been processed yet).
	InputPendingQueueSize	The total size of the buffer in cur_working_input_queue of the InputPort (not yet started to process, will be processed).
dump Queues in output port only for enabled port	ModId	The module id of the output port.
	DevId	The device id of the output port.
	ChnId	The channel id of the output port.
	PassId	The pass id of the output port.
	OutPortId	The output port id.
	DrvBkRefFifoQ_cnt	The number of buffers in the input port's DrvBkRefFifoQueue(Drive preprocessing queue, currently not used).
	DrvBkRefFifoQ_size	The total size of buffers in the input port's DrvBkRefFifoQueue(Drive preprocessing queue, currently not used).
	UsrGetFifoQ_cnt	The number of buffers in the input port's UsrGetFifoBufQueue(User gets the queue of output port buf).
	UsrGetFifoQ_size	UsrGetFifoQ_size The total size of the buffer in the UsrGetFifoBufQueue of the OutputPort (the queue where the user obtains the output port buf).

5.5. mi_dump_buffer_delay_worker¶

5.5.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_dump_buffer_delay_worker

delay_worker_id  module_name  force_stop  dev_id  chn_id  port_type  port_id  Queue_name
        0            mi_disp        0          0       0     inport       0      BindInput
stored_dir  dump_method  dump_method_value
    /mnt       bunfnum            2

Debug Information Analysis

The file of /proc/mi_modules/mi_dump_buffer_delay_worker connects with the mi_modulenamedevid. The buffer in the Queue of the dump device is implemented by the delay worker. So cat /proc/mi_modules/mi_dump_buffer_delay_worker can see which delay workers are in progress, and echo force_stop_dump delay_worker_id can force the end of a specified delay worker process.

Parameter Description

Parameter	Description
delay_worker_id	The delay worker’s id. If the delay worker completes, the id will be recycled and used as an id for other delay workers.
module_name	The module id corresponding to the delay worker.
force_stop	Whether the delay worker is currently in the compulsory end stage, 1 means that the compulsory end has been set, and 0 means that it has not been set.
dev_id	The device id corresponding to the delay worker.
chn_id	The channel id corresponding to the delay worker.
port_type	The port type corresponding to the delay worker, input port or output port.
port_id	The port id corresponding to the delay worker.
Queue_name	The Queue name corresponding to the delay worker.
stored_dir	Absolute path to store data dumped in the delay worker. (The file name of the final storage is not included)
dump_method	bufnum or time or start.
dump_method_value	The value corresponding to the dump method.

5.5.2. echo¶

Function	Force to stop delay worker
Command	echo force_stop_dump [WorkID] >/proc/mi_modules/mi_dump_buffer_delay_worker
Parameter Description	[WorkID]：delay_work ID
Example	echo force_stop_dump 0 > /proc/mi_modules/mi_dump_buffer_delay_worker // Force to stop delay_work 0

5.6. debug_level¶

5.6.1. cat/echo¶

Debug Information

# cat /proc/mi_modules/mi_sys/debug_level

2

Debug Information Analysis

Each module (including the sys module) has its own debug level to control the printing level. The respective printing level is controlled in /proc/mi_modules/mi_modulename/debug_level respectively, where the modulename is shaped like disp, dipp, rgn and so on. The above is just taking /proc/mi_modules/mi_sys/debug_level as an example.

Function	Print debug warning level.
Command	cat /proc/mi_modules/[ModuleName]/debug_level
Parameter Description	[ModuleName] mi_disp / mi_gfx / mi_rgn / mi_vdec / mi_vpe / mi_ai / mi_divp mi_shadow / mi_vdisp / mi_ao / mi_hdmi / mi_sys / mi_venc / mi_bar / mi_vif
Example	cat /proc/mi_modules/mi_sys/debug_level 2 The debug warning level of mi_sys is 2 (show warning and error’s information)

Function	Modify warning level.
Command	echo [Level] > /proc/mi_modules/[ModuleName]/debug_level
Parameter Description	[Level] 0 No debug information (MI_DBG_NONE) 1 Only show error information (MI_DBG_ERR) 2 Show information of level<=2 (MI_DBG_WRN) 3 Show information of level<=3 (MI_DBG_API) 4 Show information of level<=4 (MI_DBG_KMSG) 5 Show information of level<=5 (MI_DBG_INFO) 6 Show information of level<=6 (MI_DBG_DEBUG) 7 Show information of level<=7 (MI_DBG_TRACE) 8 Show all information (MI_DBG_ALL) [ModuleName] mi_disp / mi_gfx / mi_rgn / mi_vdec / mi_vpe / mi_ai / mi_divp mi_shadow / mi_vdisp / mi_ao / mi_hdmi / mi_sys / mi_venc / mi_bar / mi_vif
Example	echo 1 > /proc/mi_modules/mi_vdec/debug_level // Modify the warning level of the mi_vdec module to only show error information.

5.7. debug_file¶

5.7.1. echo¶

Debug Information

# echo mi_sys_impl.c > /proc/mi_modules/mi_sys/debug_file

Debug Information Analysis

When used for debugging, all levels of DBG log Information in the mi_sys_impl.c file can be printed on the serial port.

Parameter Description

Parameter

Description

Command

echo [fileName] … > /proc/mi_modules/mi_xxx/debug_file
// Indicates that the DBG log information of all levels in the function fileName can be printed at runtime. Multiple functions can be enabled at the same time, separated by spaces.
echo > /proc/mi_modules/mi_xxx/debug_file
// Indicates to close the printing of all levels of the previously opened function fileName. At this time, the DBG log in the function fileName can only be printed at the level set by /proc/mi_modules/mi_xxx/debug_level.
PS: fileName must belong to the corresponding mi_xxx module.

Parameter Description

[mi_xxx] Indicates the name of the MI module, which can be:
mi_disp / mi_gfx / mi_rgn / mi_vdec / mi_vpe / mi_ai / mi_divp
mi_shadow / mi_vdisp / mi_ao / mi_hdmi / mi_sys / mi_venc / mi_bar / mi_vif

5.8. debug_func¶

5.8.1. echo¶

Debug Information

# echo MI_SYS_IMPL_Init > /proc/mi_modules/mi_sys/debug_func

Debug Information Analysis

When used for debugging, all levels of DBG log Information in the MI_SYS_IMPL_Init() function can be printed on the serial port.

Parameter Description

Parameter

Description

Command

echo [funcName] … > /proc/mi_modules/mi_xxx/debug_func
// Indicates that the DBG log information of all levels in the function funcName can be printed at runtime. Multiple functions can be enabled at the same time, separated by spaces.
echo > /proc/mi_modules/mi_xxx/debug_func
// Indicates to close the printing of all levels of the previously opened function fileName. At this time, the DBG log in the function funcName can only be printed at the level set by /proc/mi_modules/mi_xxx/debug_level.
PS: funcName must belong to the corresponding mi_xxx module.

Parameter Description

[mi_xxx] Indicates the name of the MI module, which can be:
mi_disp / mi_gfx / mi_rgn / mi_vdec / mi_vpe / mi_ai / mi_divp
mi_shadow / mi_vdisp / mi_ao / mi_hdmi / mi_sys / mi_venc / mi_bar / mi_vif

5.9. module_version_file¶

5.9.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_ai/module_version_file

Sigmastar Module mi_ai version: project_commit.141b015 sdk_commit.0864fc2 build_time.20211026144648

# cat /proc/mi_modules/mi_global_info

…..
Sigmastar Module mi_sys version: project_commit.141b015 sdk_commit.0864fc2 build_time.20211028104230
…..

Debug Information Analysis

module_version_file provides a version Information, and /proc/mi_modules/mi_global_info also provides a version Information. But it essentially refers to the version Information of the mi_sys module. The above are just examples of mi_ai and mi_global_info. Each module has its own version file.

Parameter Description

Parameter		Description
Version Info	project_commit	When the module compiles ko, the project commit information of the whole package. If the commit based on the module changes when ko is replaced separately, then the commit obtained in the version of ko will also change accordingly.
	sdk_commit	When the module compiles ko, the sdk commit information of the whole package. If the commit based on the module changes when ko is replaced separately, then the commit obtained in the version of ko will also change accordingly.
	build_time	Time refers to the actual build time, accurate to seconds, even if make clean; When you build image as a whole, the time of each ko will also be different.

5.10. show threads¶

5.10.1. echo¶

Debug Information

# echo show_threads > /proc/mi_modules/mi_sys/mi_sys0

[<c02472f5>] (__schedule) from [<c02473f3>] (schedule+0x57/0x64)
[<c02473f3>] (schedule) from [<c001d8a1>] (do_wait+0xf1/0x128)
[<c001d8a1>] (do_wait) from [<c001dc73>] (kernel_wait4+0x4b/0xcc)
[<c001dc73>] (kernel_wait4) from [<c001dd01>] (sys_wait4+0xd/0x68)
[<c001dd01>] (sys_wait4) from [<c0009001>] (ret_fast_syscall+0x1/0x64)
Exception stack(0xc2a51fa8 to 0xc2a51ff0)
1fa0:                   00000000 000b1c65 ffffffff 00000000 00000000 00000000
1fc0: 00000000 000b1c65 b6f300c0 00000072 0000008f 000003b2 00000000 00000000
1fe0: 00000072 bee0dc98 b6e21e57 b6dc5886
[<c02472f5>] (__schedule) from [<c02473f3>] (schedule+0x57/0x64)
[<c02473f3>] (schedule) from [<c002c7d5>] (kthreadd+0x65/0xfc)
[<c002c7d5>] (kthreadd) from [<c0009101>] (ret_from_fork+0x11/0x30)
Exception stack(0xc2a59fb0 to 0xc2a59ff8)
9fa0:                                     00000000 00000000 00000000 00000000
9fc0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000
9fe0: 00000000 00000000 00000000 00000000 00000013 00000000

Debug Information Analysis

View the call stack status of all current threads.
- This command can help Query & locate deadlock problems.
- This Command prints a lot, so you’d better to print it in kmsg to avoid contamination by other information.
Parameter Description

Parameter Description

show_threads Exception stack Part of the stack information corresponding to the thread.

5.11. debug_frc¶

5.11.1. echo¶

Debug Information

# echo debug_frc on 12 0 0 0 0 "out" > /proc/mi_modules/mi_sys/mi_sys0

Debug Information Analysis

printk in _MI_SYS_IMPL_Common_WriteProc,

Switch enable debug FRC, Modid:12, Dev:0, Chn:0, Pass:0, Port:0, BufType:1. Enable frame rate control debug switch.

Parameter Description

Parameter	Description
Command	Switch enable debug FRC: echo debug_frc on [Modid] [Devid] [Chnid] [Passid] [Portid] [in/out] > /proc/mi_modules/mi_sys/mi_sys0 // Open the frame rate control debug switch. Switch disable debug FRC: echo debug_frc off > /proc/mi_modules/mi_sys/mi_sys0 // Close the frame rate control debug switch.
Parameter Description	[Modid] : module id [Devid] : device id [Chnid] : channel id [Passid] : pass id [Portid] : port id [in/out] : input/output direction

5.12. set_outputport_depth¶

5.12.1. echo¶

Debug Information

# echo set_ouputport_depth 6 0 0 0 0 0 2 4 > /proc/mi_modules/mi_sys/mi_sys0

Parameter Description

Parameter	Description
Command	Set output port depth: echo set_ouputport_depth [Modid] [Devid] [Chnid] [Passid] [Portid] [u32userFrameDepth] [u32BufQueueDepth] > /proc/mi_modules/mi_sys/mi_sys0
Parameter Description	[Modid] : module id [Devid] : device id [Chnid] : channel id [Passid] : pass id [Portid] : port id [u32userFrameDepth]: Set the maximum number of bufs that the output user can get. [u32BufQueueDepth]: Set the maximum number of bufs for this output system

5.13. set_thread_priority¶

5.13.1. echo¶

Debug Information

# echo set_thread_priority 12 0 99 > /proc/mi_modules/mi_sys/mi_sys0

Parameter Description

Parameter	Description
Command	Set work_thread_priority by module id: echo set_thread_priority [Modid] [Devid] [u32Priority] > /proc/mi_modules/mi_sys/mi_sys0
Parameter Description	[Modid]: module id [Devid]: device id [u32Priority]: Thread level to be set.

5.14. miu_protect¶

5.14.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_sys_mma/miu_protect

===================  start miu_protect_info =========================
LX :
cpu_start_addr:0x20000000    size:0x7fe0000

miu_index   miuBlockIndex   start_cpu_bus_pa   length
0x0                0x00       0x20000000        0x2fe0000

    KernelProtect IP white list:
    clientId                                    name
            112                              CPU
            10                              MCU51
            38                              USB20_H
            8                              USB20
            3                              USB30
            39                              MIIC2
            40                              MIIC1
            46                              MIIC0
            9                              EMAC
            30                              SD30
            31                              SDIO30
            7                              AESDMA
            11                              URDMA
            12                              BDMA
            13                              MOVDMA

0x0                0x01       0x23144000        0x1c000

    KernelProtect IP white list:
    clientId                                    name
            112                              CPU
            10                              MCU51
            38                              USB20_H
            8                              USB20
            3                              USB30
            39                              MIIC2
            40                              MIIC1
            46                              MIIC0
            9                              EMAC
            30                              SD30
            31                              SDIO30
            7                              AESDMA
            11                              URDMA
            12                              BDMA
                13                              MOVDMA

Debug Information Analysis

This command shows the related Information of miu protect.

Parameter Description

Parameter		Description
LX (Take only one LX for example, LX represents memory corresponding to linux image)	cpu_start_addr	The starting CPU addr corresponding to this LX.
	size	The size corresponding to this LX.
Information about the range of a certain kernel protect	miu_index	Index.
	miuBlockIndex	Total 4 miu range’s index information.
	start_cpu_bus_pa	The starting cpu bus addr of this LX.
	length	The length of the range.
KernelProtect IP white list	clientId	Miu protect IP id in IP whitelist (The global id from the perspective of undivided group).
KernelProtect IP white list	name	The actual name of the IP corresponding to the clientId.

5.15. imi_mma_heap¶

5.15.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_sys_mma/imi_mma_heap

mma heap name heap_base_cpu_bus_addr              length     chunk_mgr_avail           mmuEnable      addsize_before       addsize_after      bMmuDelayUnmap
        imi_mma_heap            20000000               43800               43800                   0                   0                   0                   0
chunk_mgr info:
            offset              length               avail
                0               43800               43800

each chunk info:
            offset              length           used_flag           task_name                 pid              Module
                0               43800                   0                  NA                  -1              mi_sys

Debug Information Analysis

The cat information corresponds to the basic information and current status of the mma heap.

Parameter Description

Parameter		Description
heap basic info	mma heap name	mma heap name
	heap_base_cpu_bus_addr	The starting cpu bus addr of the heap.
	length	The length of heap.
	chunk_mgr_avail	The total amount of unused memory remaining in heap.
	mmuEnable	Whether Mma heap support HW_MMU. 1 means enable, 0 means disable.
chunk_mgr info	offset	The offset of chunk mgr. Since the entire mma heap is used as a chunk mgr, this value is always 0.
	length	The length of chunk mgr. Since the entire mma heap is used as a chunk mgr, this value is always mma heap length.
	avail	The total amount of unused memory remaining in chunk mgr (ie, heap).
each chunk info (Information and usage of each chunk in chunk mgr)	offset	The offset of this chunk in chunk mgr.
	length	The length of this chunk.
	used_flag	Whether the chunk is allocated. If yes, the value is 1; otherwise, the value is 0.
	task_name	If the used flag is 1, then task_name stores which task uses it; otherwise, it is an invalid value NA.
	pid	current->tgid of the chunk
	Module	The module of the chunk

5.16. mem_stat¶

5.16.1. cat¶

Debug Information

# cat /proc/mi_modules/mi_sys_mma/mem_stat
      mi_sys
                CMDMEM               c0000
            sys-logBuffer            40000
            sys-logConfig            1000
                TotalSize            101000
             AllTotalSize            101000

Debug Information Analysis

Print the memory status of mi sys.

Parameter Description

Parameter		Description
Mem_stat	mi_sys	Owned mi_sys module
	CMDMEM	Cmd memory size
	sys-logBuffer	The maximum buf size applied to sys log
	sys-logConfig	The buf size allocated (applied) to sys log
	TotalSize	The size used by ModuleUsdTotalSize
	AllTotalSize	Total size

Parameter Name	Description	Input/Output
pstChnPort	Port information structure pointer	Input
ps32Fd	File Description for waiting for event	Output

Parameter Name	Description	Input/Output
srcBufHandle	Source buf object	Input
pDupTargetBufHandle	Return buf object pointer	Output

Parameter Name	Description	Input/Output
eModule	Target module ID	Input
u32DevId	Dev ID	Input
stPoolListConf	Module public buffer pool queue configuration	Input

Parameter Name	Description	Input/Output
pVirtualAddress	Previously MI_SYS_Mmap returned CPU virtual address	Input
u32Size	The length of the cache to be flush	Input

Parameter Name	Description	Input/Output
phyPa	The physical address of the padding	Input
u32Val	Fill value	Input
u32Lenth	Fill size, in byte	Input

Parameter Name	Description	Input/Output
phyDst	Destination physical address	Input
phySrc	Source physical address	Input
u32Lenth	Copy size, in byte	Input

Parameter Name	Description	Input/Output
pstBuf	The structure of the filled frame data Description	Input
u32Val	Fill value	Input
pstRect	The extent of the data populated	Input

Parameter Name	Description	Input/Output
pVirtualAddress	CPU virtual address pointer	Input
pPhyAddr	Pointer to store the physical address of the memory block	Output

Members Name	Description
E_MI_SYS_FIELDTYPE_NONE	None
E_MI_SYS_FIELDTYPE_TOP	Top field only
E_MI_SYS_FIELDTYPE_BOTTOM	Bottom field only
E_MI_SYS_FIELDTYPE_BOTH	Both fields

Members Name	Description
E_MI_SYS_BUFDATA_RAW	Raw data type
E_MI_SYS_BUFDATA_FRAME	Frame data type
E_MI_SYS_BUFDATA_META	Meta data type
E_MI_SYS_BUFDATA_MULTIPLANE	Multiplane data type

Members Name	Description
E_MI_SYS_FRAME_ISP_INFO_TYPE_NONE	NONE
E_MI_SYS_FRAME_ISP_INFO_TYPE_GLOBAL_GRADIENT	Global gradient data types for ISPs

Members Name	Description
eModId	Module No.
u32DevId	Device No.
u32ChnId	Channel No.
u32PortId	Port No.

Members Name	Description
eBufType	Buf type
u64Pts	Time stamp
bEndOfStream	Whether all the information has been sent
u32IrFlag	Ir flag bit

Members Name	Description
u32PoolListCnt	VB pool list number of Members
stPoolConf	VB pool linked table Members configuration information

Members Name	Description
REALTIME_FRAME_DATA	In E_MI_SYS_BIND_TYPE_REALTIME mode
RINGBUF_FRAME_DATA	The resulting frame data
NORMAL_FRAME_DATA	In E_MI_SYS_BIND_TYPE_HW_RING mode

Members Name	Description
u32VencInputRingPoolStaticSize	Private pool size
u8MMAHeapName	Mma heap name

Members Name	Description
eConfigType	Private pool type
bCreate	Whether Create PrivatePool.true: Creat false: Destroyed
uConfig	Structures of different types of private pool

Members Name	Description
u8SubPlaneNum	Buf count
stFrameCfg	Define Structure of the code flow frame buffer configuration.

Members Name	Description
u8SubPlaneNum	Buf count
stSubPlanes	Define Structure of the code flow MultiPlane buffer configuration.
