SSU_USB使用参考

REVISION HISTORY¶

Revision No.	Description	Date
1.0	Initial release	05/12/2023
1.1	新增UVC device和host配置	08/11/2023
1.2	新增USB2.0 P0 OTG使用参考	10/08/2023

1. 概述¶

Opera提供最多3个USB Port:

 2个USB2.0 Port（P0和P1), 其中P0可以作为Device或者Host, P1只能作为Host

 1个USB3.0 Port, 只能作为Host

2. Linux配置使用USB device¶

2.1. kernel config配置¶

Opera只有USB2.0 Port0支持配置成USB device, device的配置方式主要是开启UDC的配置(udc-msx250x.ko)和gadget的一些配置(具体看需要哪个function)

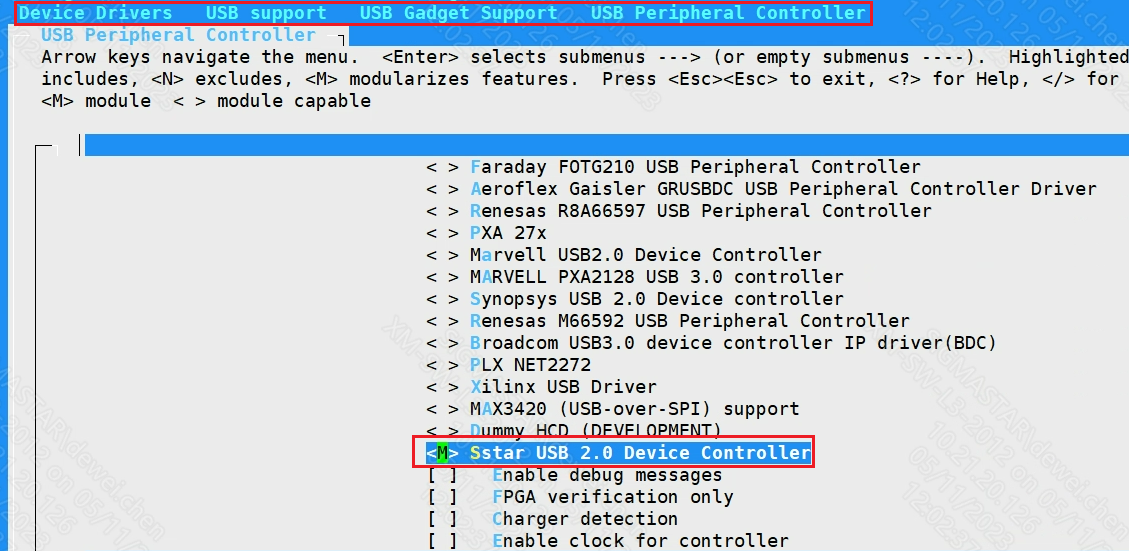

开启UDC配置(生成usb-common.ko、udc-core.ko、udc-msb250x.ko)

[*]USB support  --->
    [M]USB Gadget Support  --->
        USB Peripheral Controller  --->
            [M]Sstar USB 2.0 Device Controller

开启gadget配置, 红色箭头指向为配置具体的device function(生成libcomposite.ko, 以及具体function的ko)

[*]USB support  --->
    [M]USB Gadget Support  --->
        [M]USB functions configurable through configfs

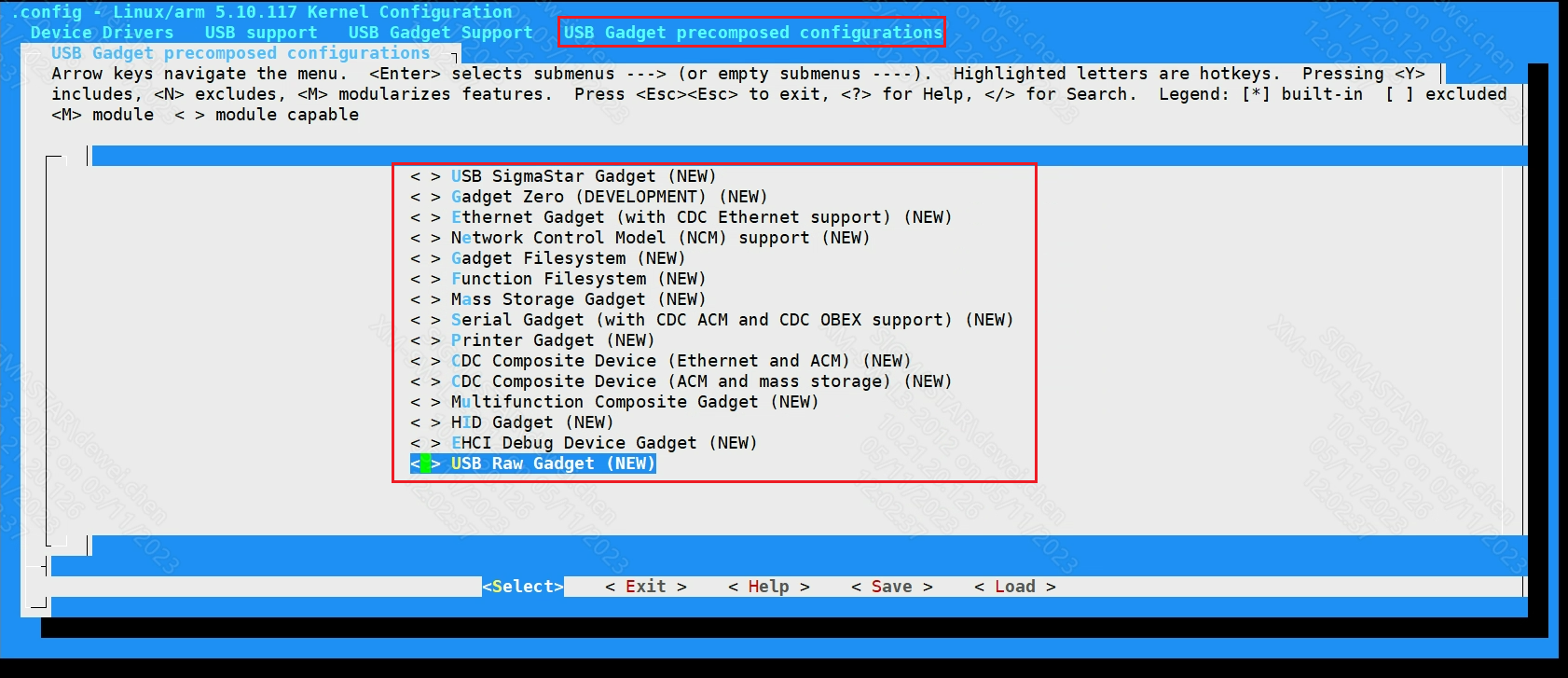

也可通过加载对应的g_xxx.ko来配置gadget:

[*]USB support  --->
    [M]USB Gadget Support  --->
           USB Gadget precomposed configurations

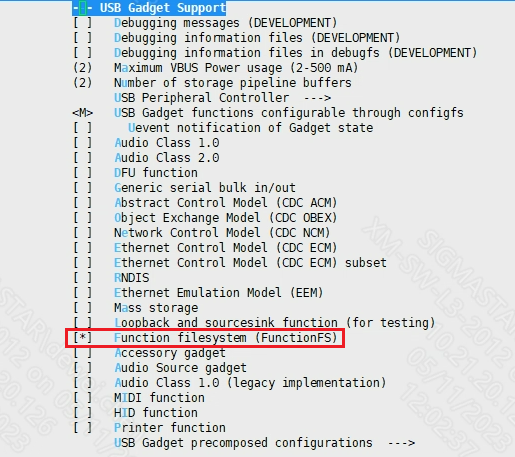

例如adb需要打开如下配置(生成usb_f_fs.ko):

2.2. dts配置¶

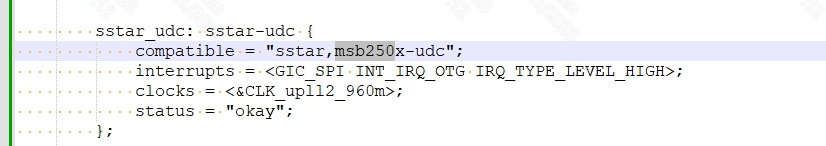

对应pioneer5.dtsi里面的节点如下, status default是okay的:

2.3. ko加载¶

按如下顺序加载ko:

#usb2.0 device normal ko
usb-common.ko
udc-core.ko
udc-msb250x.ko
libcomposite.ko
#device function ko
例如adb需要加载usb_f_fs.ko

3. Linux配置使用USB host¶

Opera的3个USB Port均支持配置成USB host

3.1. USB2.0配置成USB host¶

3.1.1. kernel config配置¶

kernel config打开如下配置:

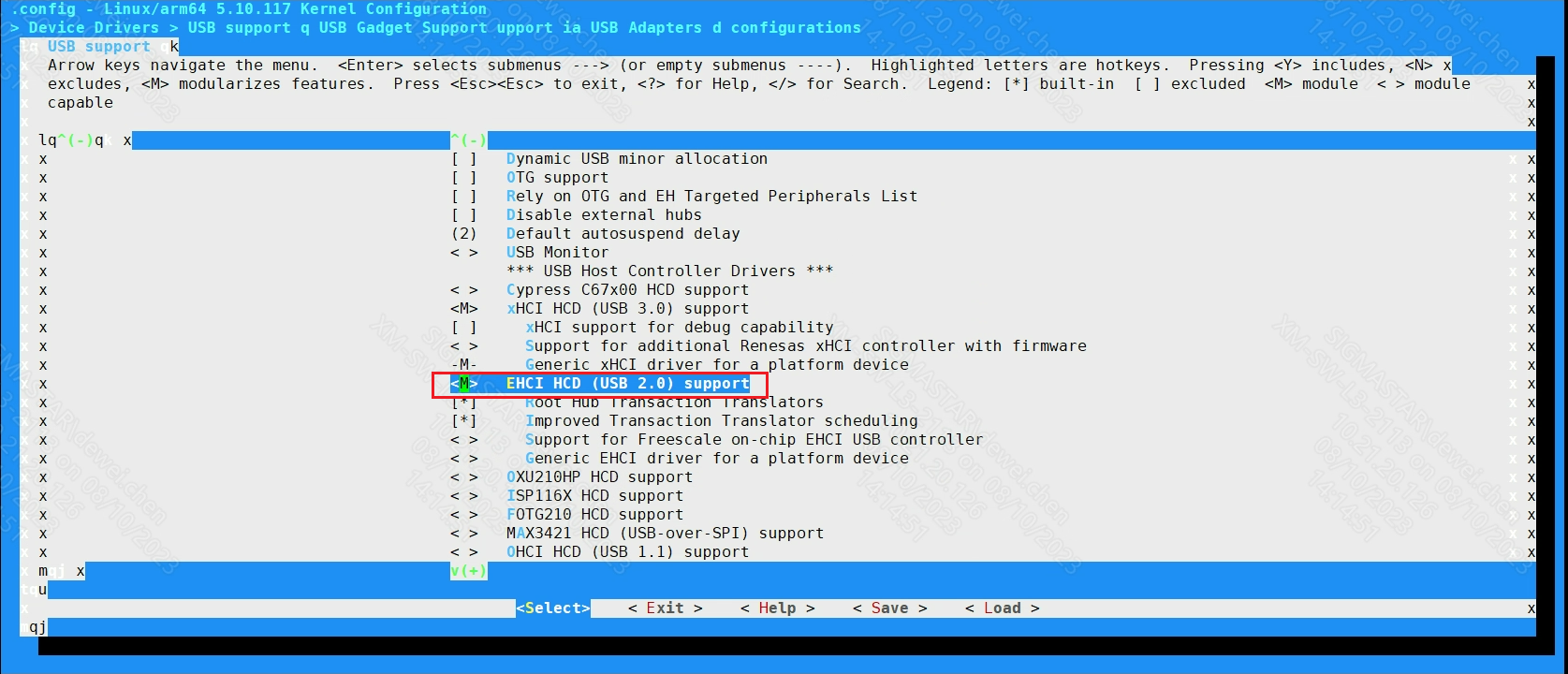

COFNIG_USB_EHCI_HCD:(生成ehci-hcd.ko)

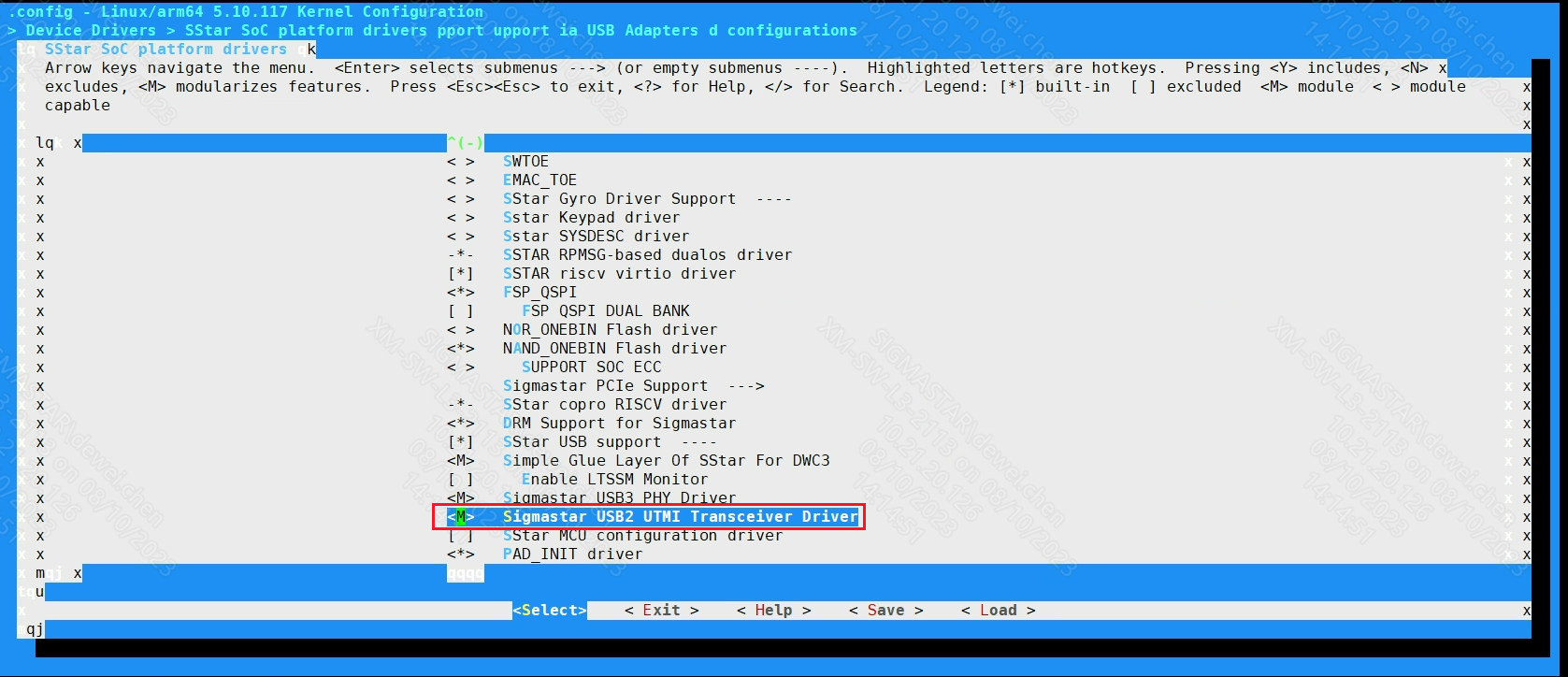

CONFIG_SS_USB2_PHY:(生成phy-sstar-u2phy.ko)

3.1.2. dts配置¶

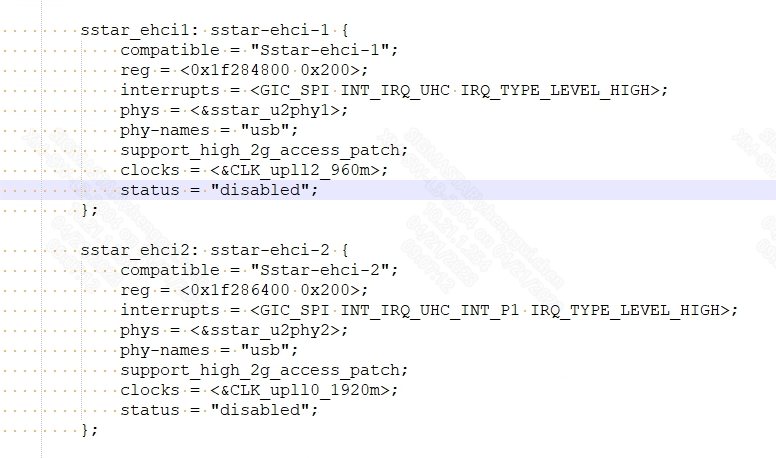

对应pioneer5.dtsi的节点如下, USB2.0配置成host需要设置sstar_ehci1/sstar_ehci2节点的status为okay

在板级dts里面会将status覆盖为okay, 例如pioneer5-ssz028b-s01a-s.dts里面会将sstar_ehci2的status覆盖为okay, 即default usb2.0 port1用作host

sstar_ehci1还是disalbed, 即default usb2.0 port0用作device, 如果要使用port0作为host, 需要设置sstar_ehci1的status也为okay。

3.1.3. ko加载¶

按如下顺序加载ko:

#usb2.0 host normal ko
usb-common.ko
phy-sstar-u2phy.ko
ehci-hcd.ko

3.1.4. usb2.0 port0 OTG使用参考¶

如果dts中sstar_udc和sstar_ehci1均打开的情况下，单独加载host或device的驱动则会配置成host或device。

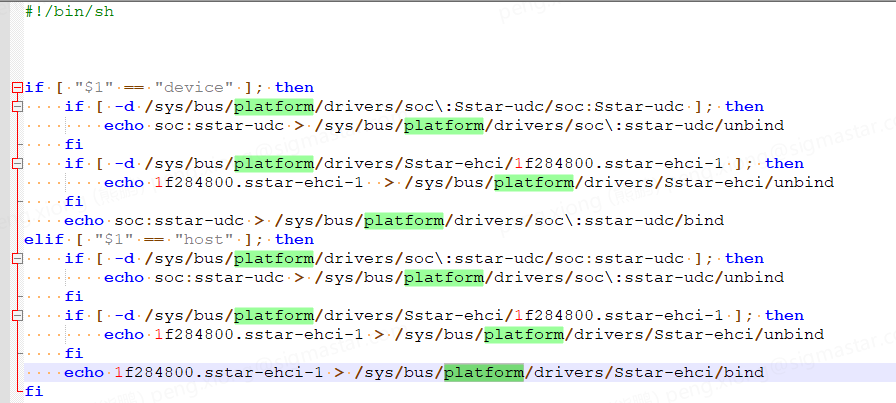

如果host和device的驱动都加载了，默认会配置成device，可以通过脚本来切换host或device，脚本路径： Alkaid\project\release\chip\p5\dispcam\common\glibc\6.4.0\bin\debug\usb_otg.sh

#USB2.0 P0切换为device
./usb_otg.sh device
#USB2.0 P0切换为host
./usb_otg.sh host

3.2. USB3.0配置成USB host¶

3.2.1. kernel config配置¶

kernel config打开如下配置:

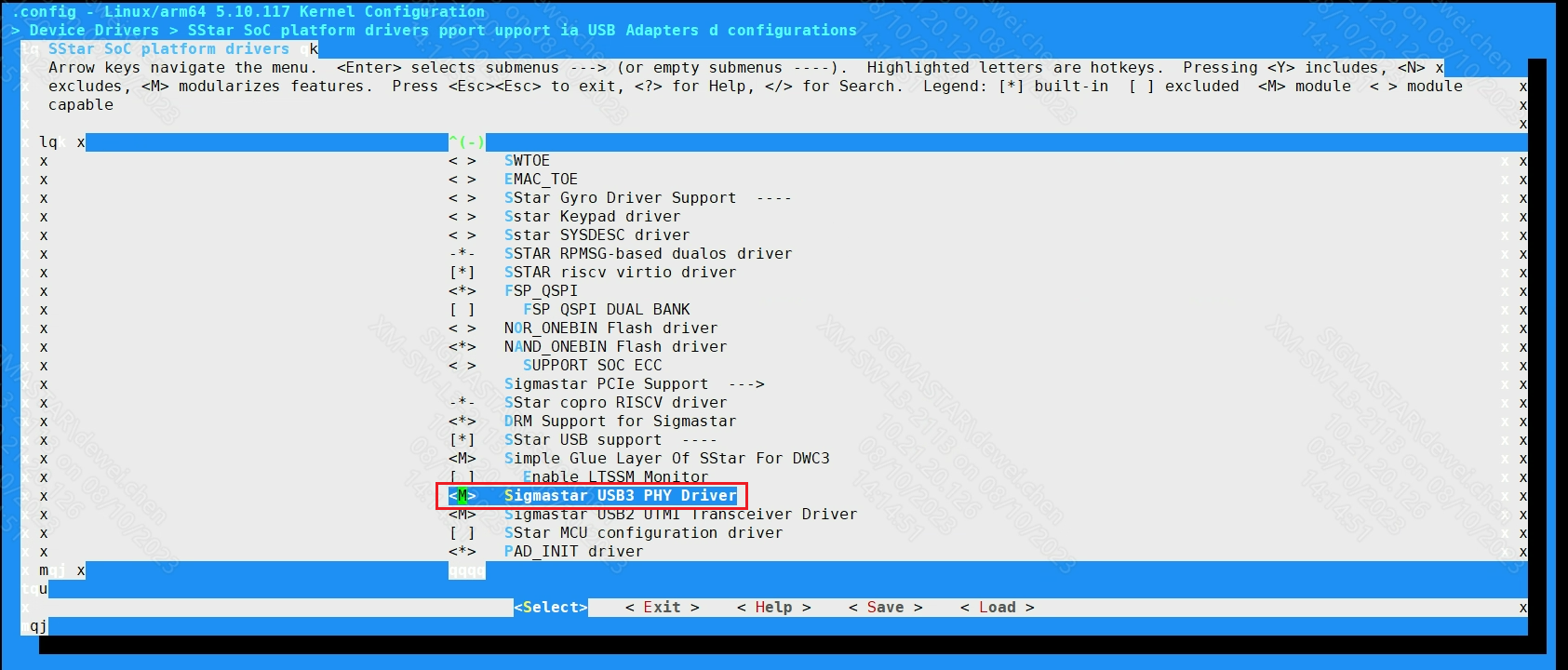

COFNIG_SS_USB3_PHY:(生成usb3-phy.ko)

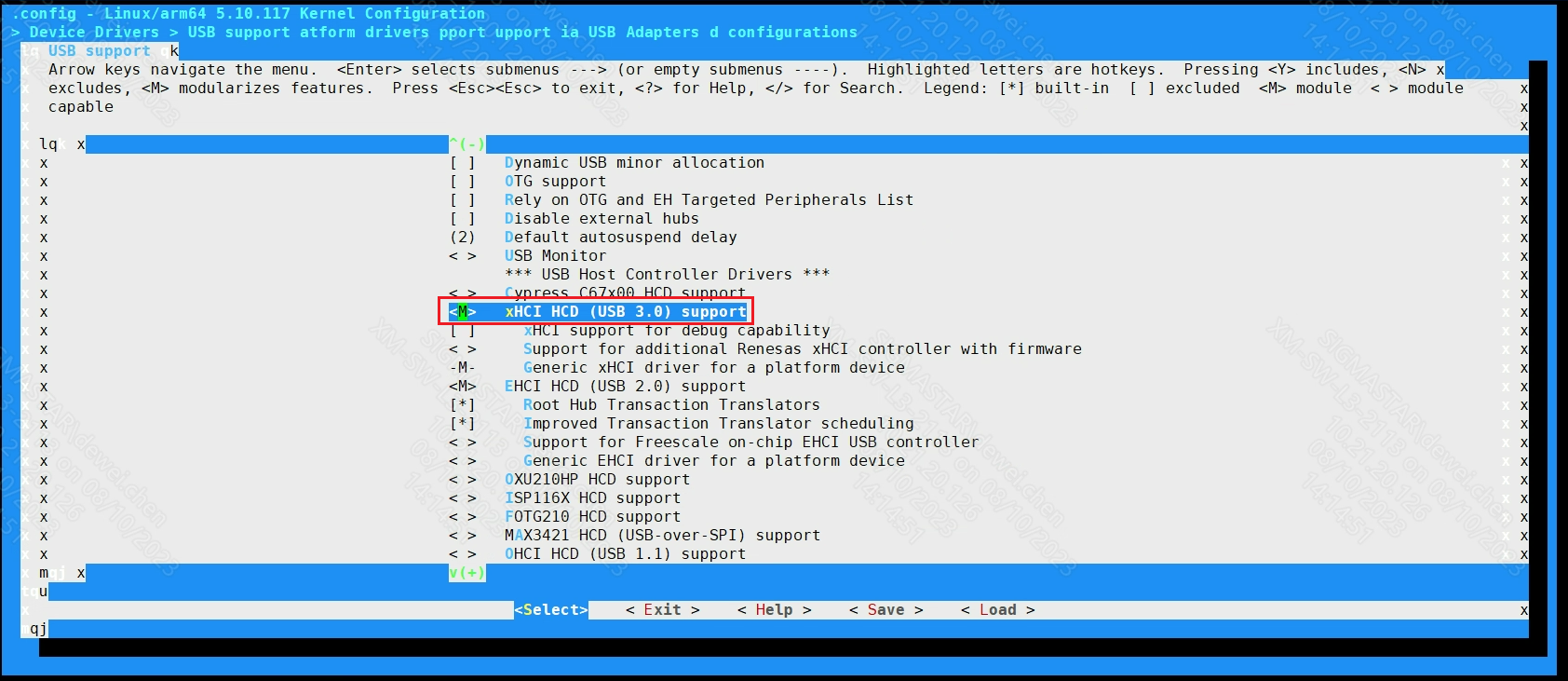

CONFIG_USB_XHCI_HCD:(生成xhci-hcd.ko、xhci-plat-hcd.ko)

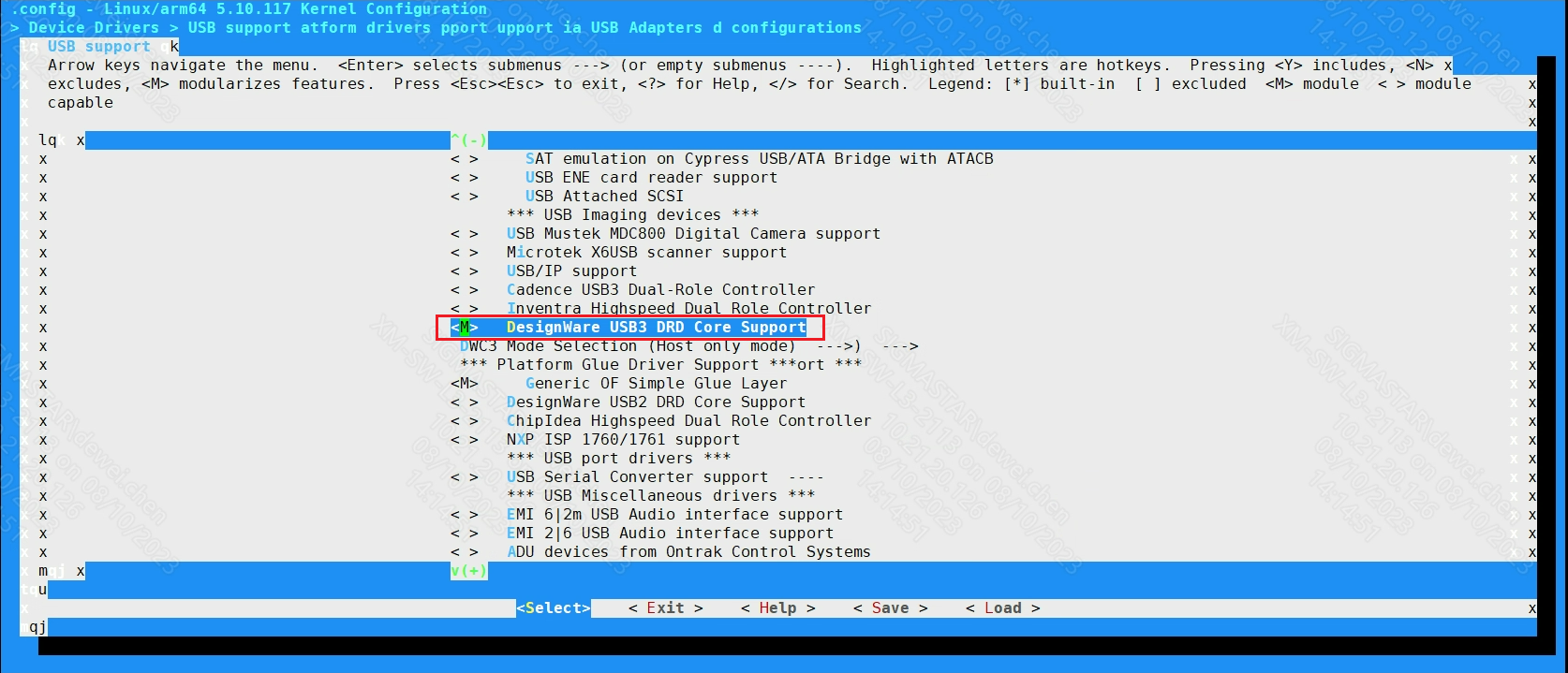

COFNIG_USB_DWC3:(生成dwc3.ko)

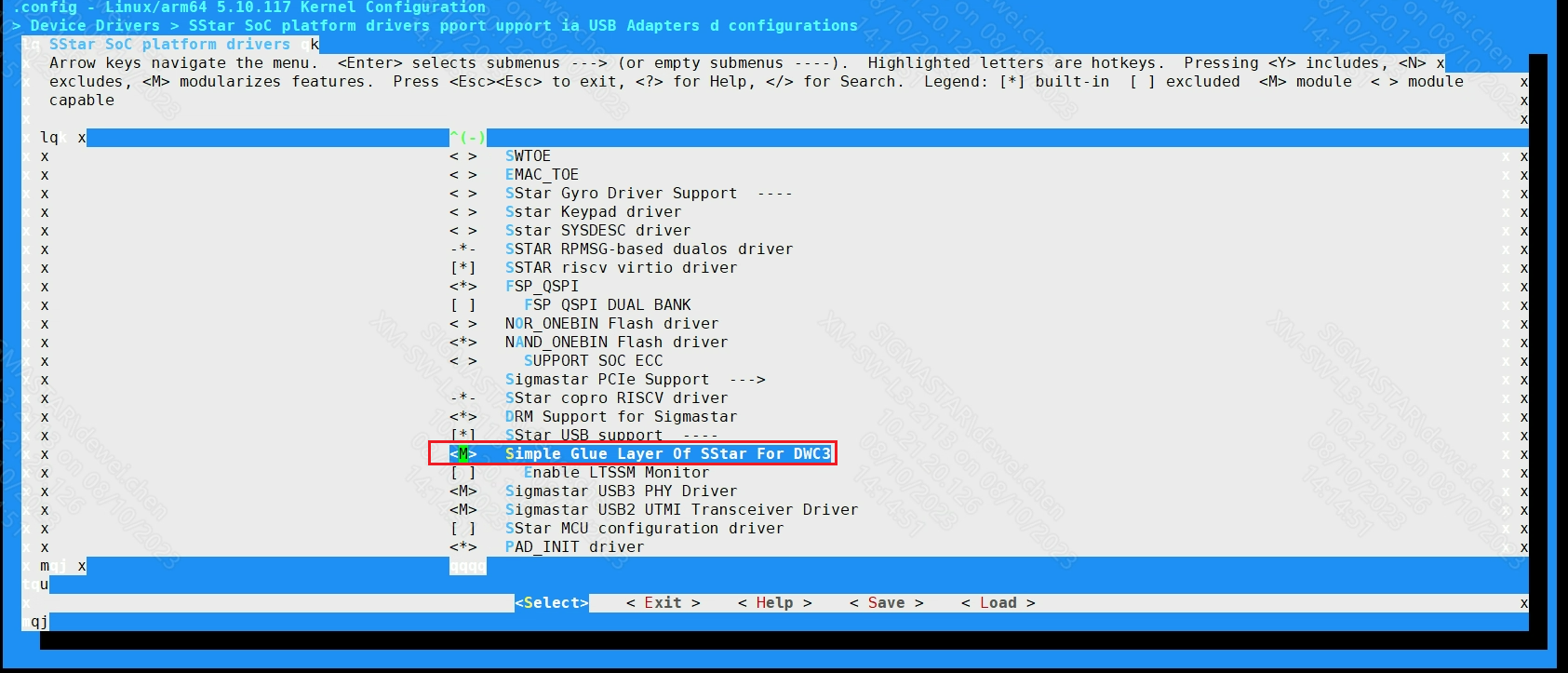

CONFIG_SSTAR_USB_DWC3_OF_SIMPLE:(生成sstar-dwc3-of-simple.ko)

3.2.2. dts配置¶

对应pioneer5.dtsi的节点如下, USB3.0配置成host需要设置usb3drd_ctrl、u3phy、usb3_drd节点的status为okay

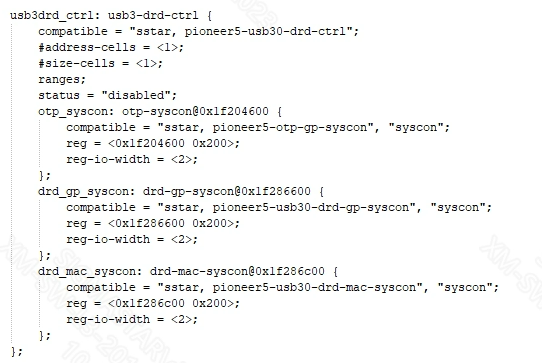

usb3drd_ctrl:

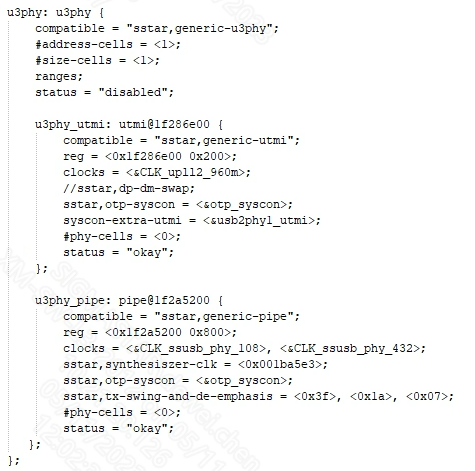

u3phy:

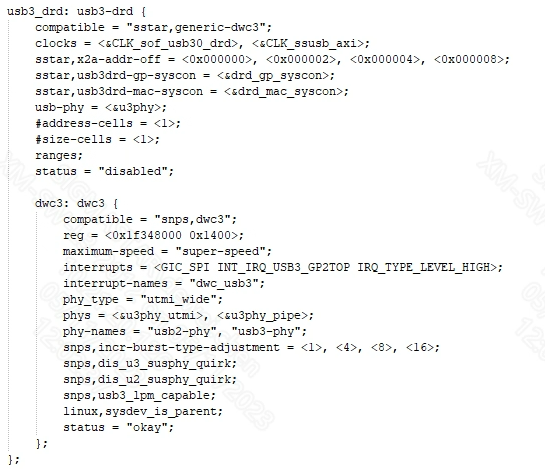

usb3_drd:

3.2.3. ko加载¶

按如下顺序加载ko:

#usb3.0 host normal ko
usb-common.ko
usb3-phy.ko
xhci-hcd.ko
xhci-plat-hcd.ko
dwc3.ko
sstar-dwc3-of-simple.ko

4. Vbus控制¶

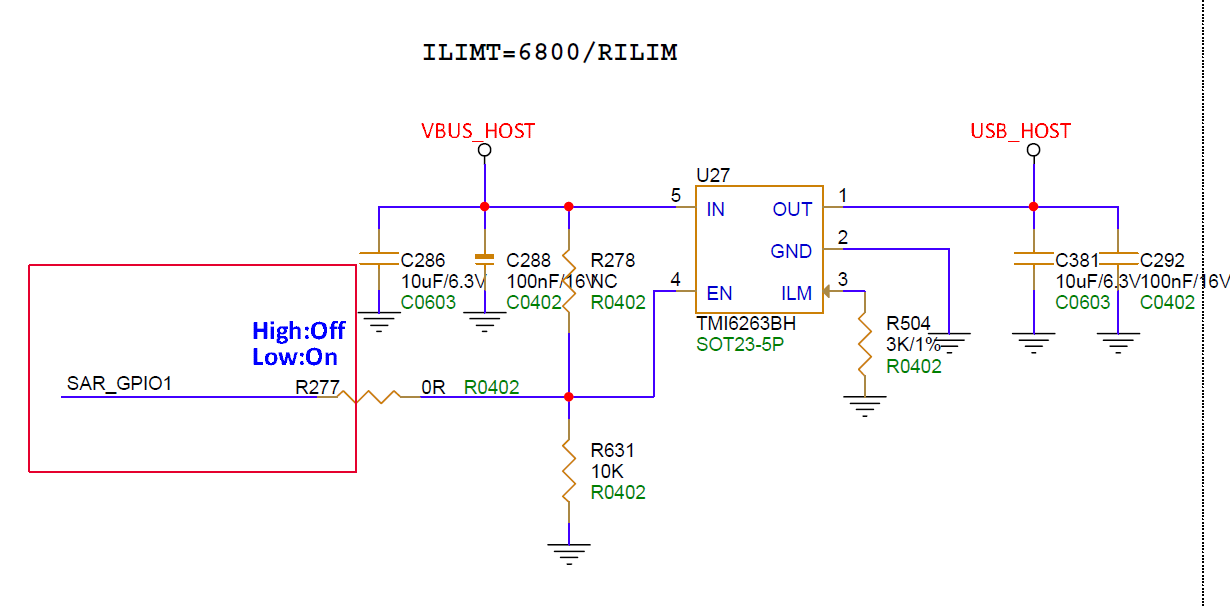

目前SSU9386和SSD2381的板子usb host vbus是通过SAR_GPIO1来控制的, 如下图

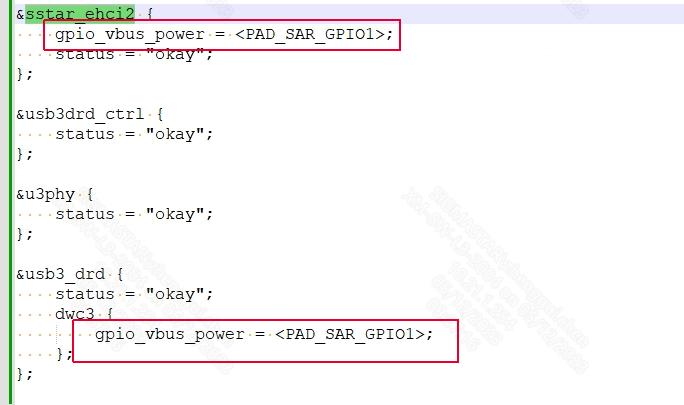

uboot和kernel已经包含了相关的Vbus去拉gpio的逻辑，需要在板级的dts里面配置, 比如pioneer5-ssz028b-s01a-s.dts里面的配置如下

5. UVC device配置¶

首先参考第二节配置USB device

5.1. kernel config配置¶

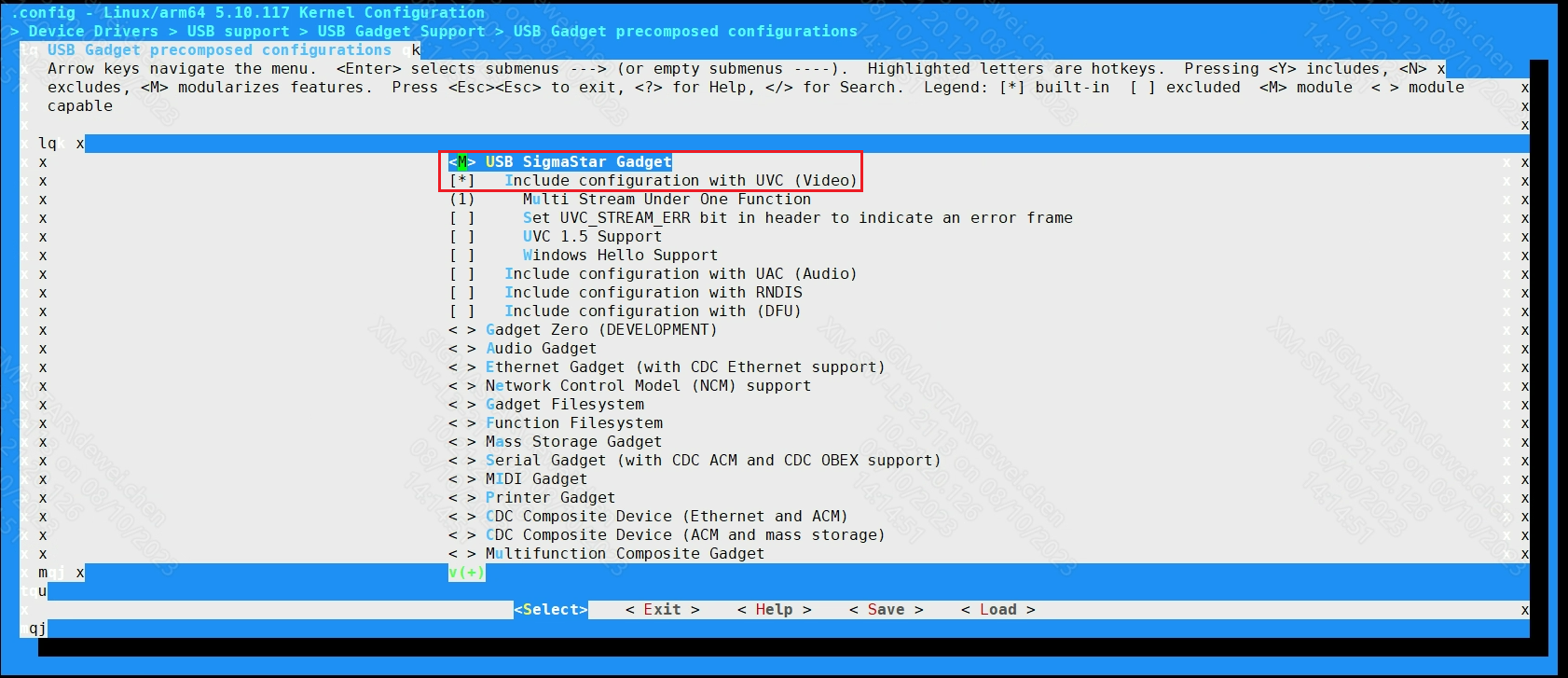

开启UVC device function配置(生成ko:libcomposite.ko、usb_f_uvc.ko、g_sstar_gadget.ko)

Device Drivers  --->
    [*]USB support  --->
        [M]USB Gadget Support  --->
            [M]USB functions configurable through configfs
            USB Gadget precomposed configurations  --->
                [M]USB SigmaStar Gadget
                [*]Include configuration with UVC (Video)

开启Multimedia配置(生成的ko:mc.ko、videodev.ko、videobuf2-common.ko、videobuf2-v4l2.ko、videobuf2-memops.ko、videobuf2-vmalloc.ko、videobuf2-dma-sg.ko、uvcvideo.ko)

Device Drivers  --->
    [*]Multimedia support  --->
        Media drivers  --->
            [*]Media USB Adapters  --->
                [M]USB Vide Class (UVC)

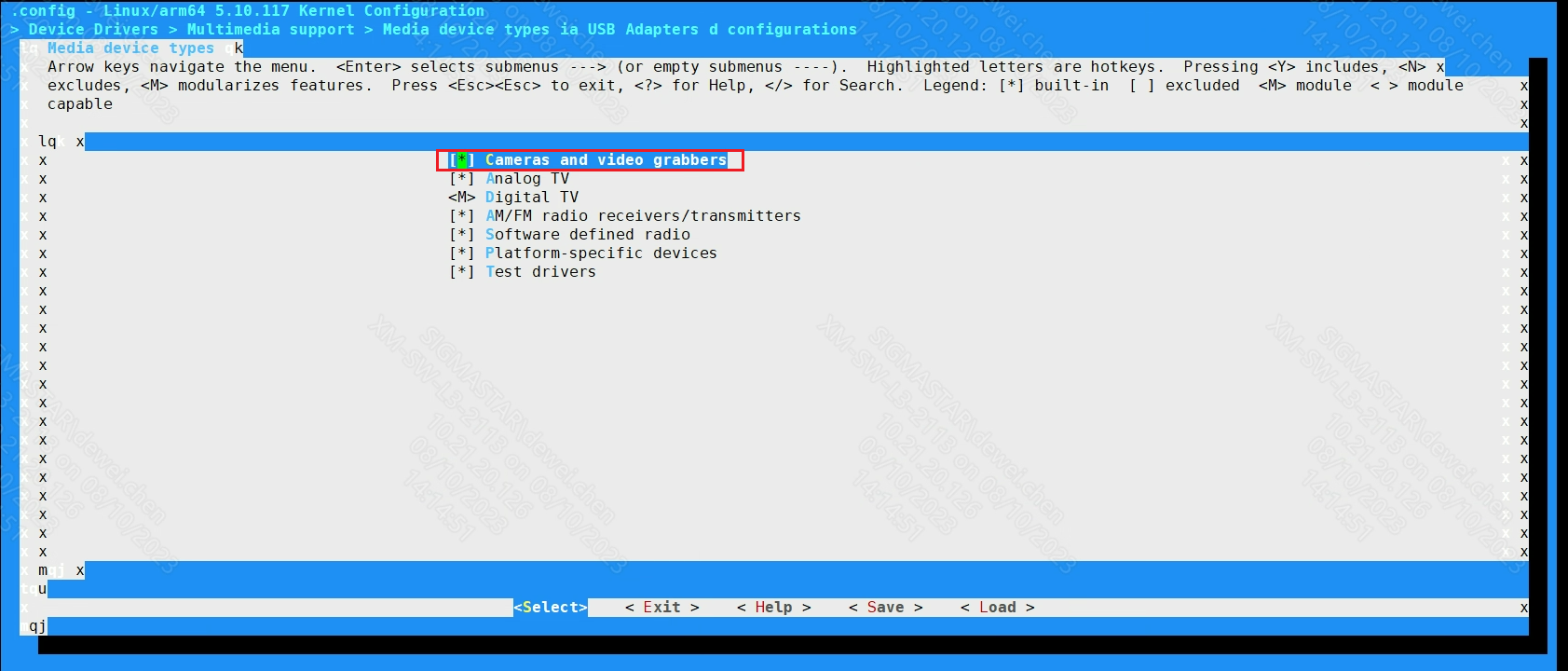

        Media device types  --->
            [*]Cameras and video grabbers

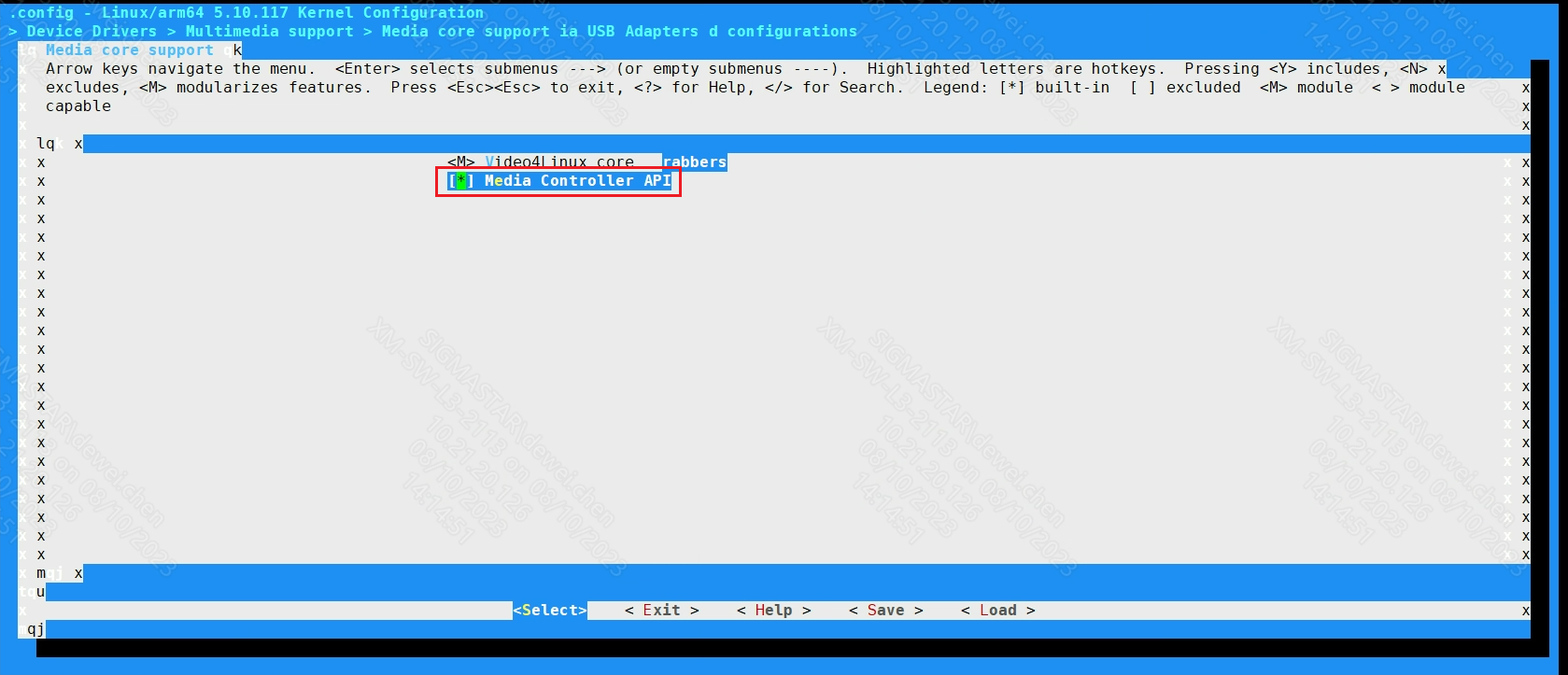

        Media core support  --->
            [*]Media Controller API

5.2. ko加载¶

按如下顺序加载ko:

#multimedia ko
mc.ko
videodev.ko
videobuf2-common.ko
videobuf2-v4l2.ko
videobuf2-memops.ko
videobuf2-vmalloc.ko
videobuf2-dma-sg.ko
uvcvideo.ko
#uvc device ko
udc-core.ko
libcomposite.ko
usb_f_uvc.ko
udc-msb250x.ko
g_sstar_gadget.ko

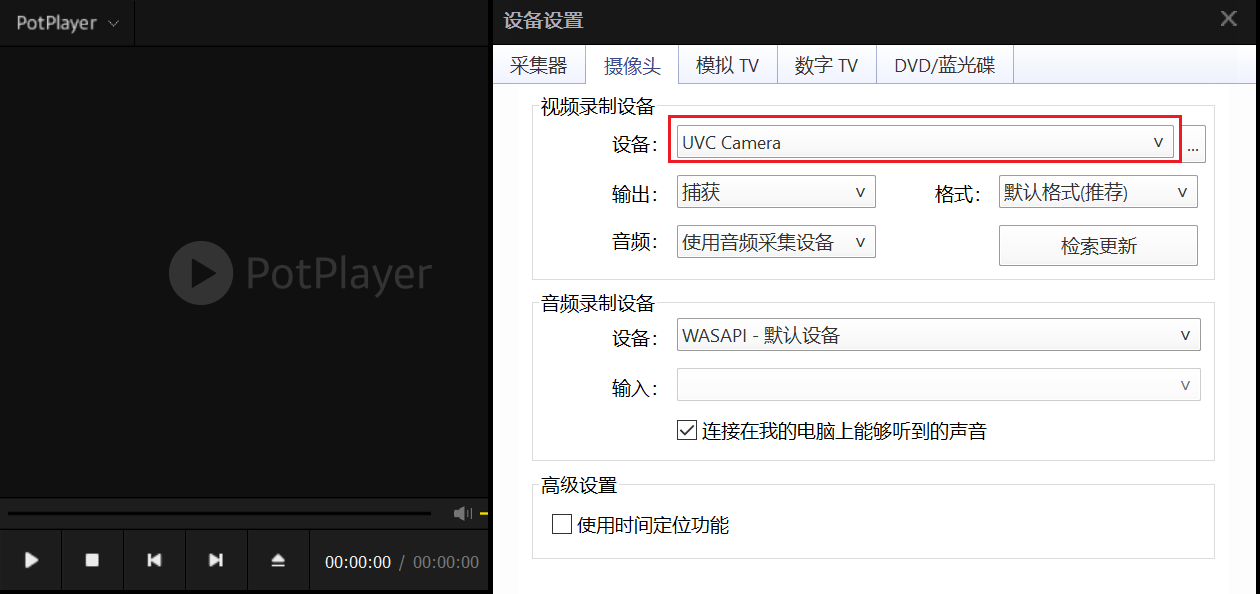

ko加载成功之后将生成/dev/video0节点，板子USB device口用USB线连接到PC端，运行UVC demo使用PotPlayer等播放器打开摄像头设备将出现UVC Camera设备

6. UVC host配置¶

首先参考第三节配置USB host

6.1. kernel config配置¶

开启Multimedia配置(生成的ko:mc.ko、videodev.ko、videobuf2-common.ko、videobuf2-v4l2.ko、videobuf2-memops.ko、videobuf2-vmalloc.ko、videobuf2-dma-sg.ko、uvcvideo.ko)

Device Drivers  --->
    [*]Multimedia support  --->
        Media drivers  --->
            [*]Media USB Adapters  --->
                [M]USB Vide Class (UVC)
        Media device types  --->
            [*]Cameras and video grabbers
        Media core support  --->
            [*]Media Controller API

6.2. ko加载¶

#multimedia ko
mc.ko
videodev.ko
videobuf2-common.ko
videobuf2-v4l2.ko
videobuf2-memops.ko
videobuf2-vmalloc.ko
videobuf2-dma-sg.ko
uvcvideo.ko
#usb2.0 host ko
phy-sstar-u2phy.ko
ehci-hcd.ko
#usb3.0 host ko
usb3-phy.ko
xhci-hcd.ko
xhci-plat-hcd.ko
dwc3.ko
sstar-dwc3-of-simple.ko

ko加载成功之后，板子USB host口用USB线连接到uvc device设备，可以看到/dev/videoX节点
